AVMATRIX SE1117 Manual

H.265/ h.264 sdi streaming encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

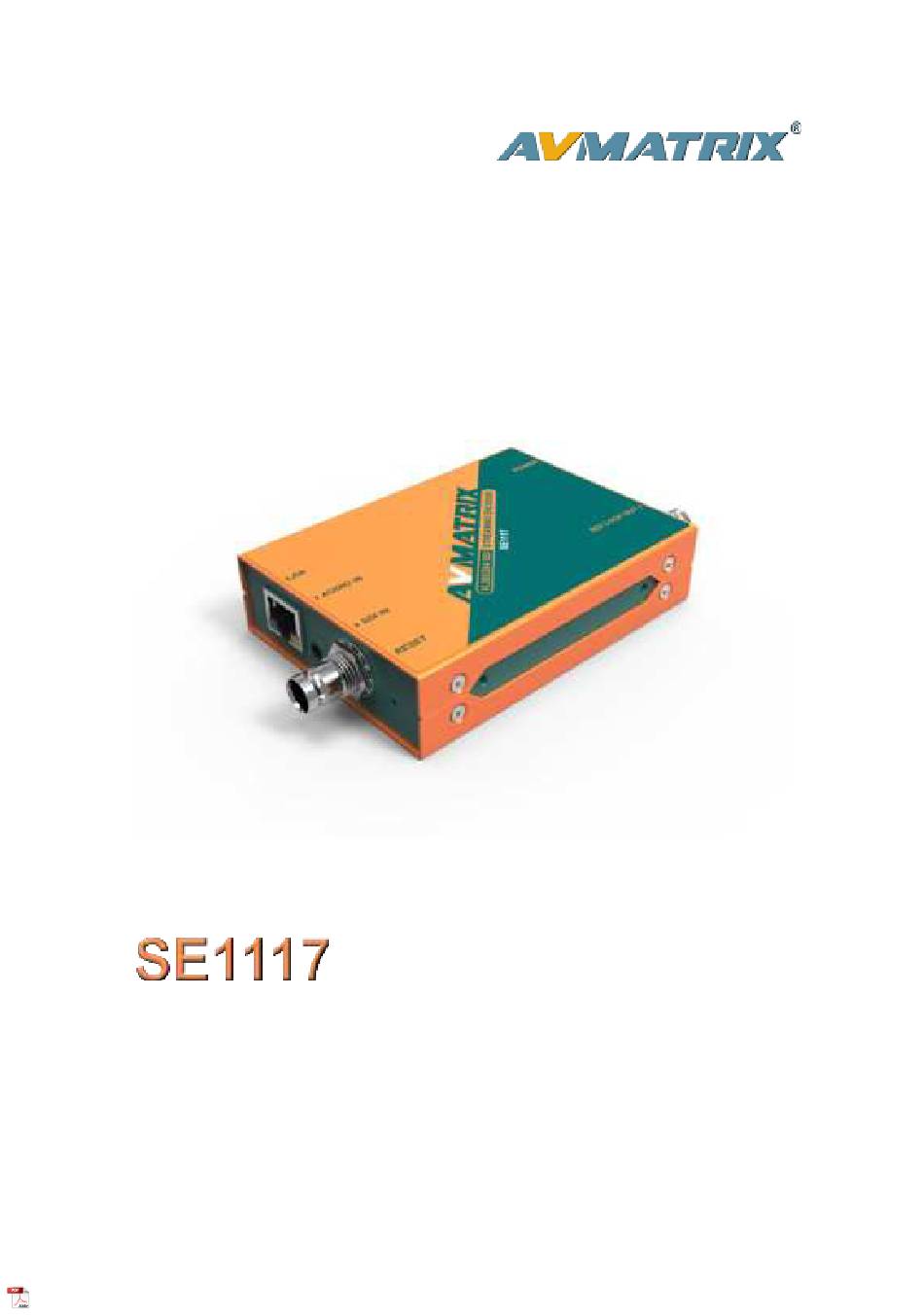

H.265/ H.264 SDI
STREAMING ENCODER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE1117 and is the answer not in the manual?

Questions and answers

Related Manuals for AVMATRIX SE1117

Summary of Contents for AVMATRIX SE1117

  • Page 1 H.265/ H.264 SDI STREAMING ENCODER...
  • Page 2 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.

  • Page 3: Table Of Contents

    CONTENTS BRIEF INTRODUCTION ........................1 1.1. Overview ............................1 1.2. Main Features ..........................1 1.3. Interfaces ............................1 SPECIFICATIONS ..........................2 OPERATIONS GUIDE ........................2 3.1. Network Configuration and Login .....................2 3.2. Management Web Page ......................3 3.2.1. Language Settings ........................3 3.2.2. Device Status..........................3 3.2.3. Network Settings ........................4 3.2.4.

  • Page 4: Brief Introduction

    1. BRIEF INTRODUCTION 1.1. Overview SE1117 is a HD audio and video encoder which can encode and compress SDI video and audio source into IP stream, and then transmit it to streaming media server via network IP address to live broadcast on platforms like Facebook, YouTube, Ustream, Twitch, Wowza etc.

  • Page 5: Specifications

    2. SPECIFICATIONS CONNECTIONS Video Input: SDI Type A ×1; Loop Out: SDI Type A ×1 Analog Audio 3.5mm line in ×1 Network RJ-45×1(100/1000Mbps self-adaptive Ethernet) STANDARDS 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60, SDI In Format Support 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60 Video Coding H.265/ H.264 Video Bitrate...

  • Page 6: Management Web Page

    page for setting up. The default Username is admin, and password is admin. 3.2. Management Web Page The encoding settings can be set on the encoder management web page. 3.2.1. Language Settings There are languages of Chinese (中文), Japanese (日本語) and English for option on the top-right corner of the encoder management web page.

  • Page 7: Network Settings

    3.2.3. Network Settings The network can be set to dynamic IP (DHCP Enable) or static IP (DHCP Disable). The default IP information can be checked in Part 3.1. 3.2.4. Main Stream Settings The main stream can be set to mirror image and upside-down image from MAIN PARAMETER tab.

  • Page 9: Sub Stream Settings

    3.2.5. Sub Stream Settings Configure sub stream network protocol RTMP/ HTTP/ RTSP/ UNICAST/ MULTICAST/ RTP/ SRT accordingly. Please note that only one of HTTP/ RTSP/ UNICAST/ MULTICAST/ RTP can be enable at same time.

  • Page 11: Audio And Extension

    3.2.6. Audio and Extension 3.2.6.1. Audio Settings The encoder support audio embedding from external analog input. Therefore, the audio can be from SDI embedded audio or analog Line in audio. Besides, Audio Encode Mode can be ACC/ MP3/ MP2. 3.2.6.2. OSD Overlay The encoder can insert logo and text to the Main Stream / Sub Stream video at same time.

  • Page 12: Color Control

    3.2.6.3. Color Control User can adjust the brightness, contrast, hue, saturation of streaming video through the web page. 3.2.6.4. ONVIF Settings The settings of ONVIF as below: 3.2.6.5. System Settings User can set the encoder reboot after 0-200 hours for some applications.

  • Page 13: Live Stream Configuration

    The default password is admin. User can set new password through below web page. The firmware version information can be checked the web page as below. Upgrade new firmware through the web page as below. Please note that don’t turn off the power and refresh web page when upgrading.
  • Page 14 Step 3. Enter the stream URL and stream key in the RTMP URL, and connect them with”/”. For example, the stream URL is “rtmp://a.rtmp.youtube.com/live2”. The Stream key is “acbsddjfheruifghi”. Then the RTMP URL will be “Stream URL”+ “/” + “Stream Key”: “rtmp://a.rtmp.youtube.com/live2/acbsddjfheruifghi”.
