CQRobot CQRSENYW002 Manual

Contact Water/Liquid Level Sensor
SKU: CQRSENYW002, ASIN: B07ZMGW3QJ
Description
CQRobot Contact Water/Liquid Level Sensor, This is a photoelectric water liquid level sensor that is
operates using optical principles. The advantages of this photoelectric water liquid level sensor are
good sensitivity and no need for mechanical parts - meaning less calibration! The corrosion resistant
probe is easily mounted and can handle high temperature and high pressure.
This sensor probe is small in size and has a structure that can be placed up, down, laterally, and
diagonally in multiple orientations to detect solution spillage, dryness and horizontal level. Can be used
as a reminder and alarm function. Built-in emitter diode and phototransistor for long life. The live
parts are completely isolated from the controlled liquid, and there is no safety hazard. Connect the
sensor's 3-Pin cable directly to the microcontroller, such as the Arduino motherboard, and the signal
terminal (Green Line) collects digital signals to determine if the sensor senses liquid. At the same time,
the sensor is compatible with the Raspberry Pi motherboard, we provide the corresponding Raspberry
Pi connection method and test code.
The sensor has a DIP switch. The DIP switch controls the output voltage (High Level) of the signal
terminal (Green Line). When the DIP switch is dialed to 5V, the high level is 5V. When the DIP switch
is dialed at 3V, the high level is 3.3V. The sensor detects that the liquid signal end (Green Line) is high
and does not detect that the liquid signal end (Green Line) is low.
Note: Avoid placing the sensor near bright lights or in direct sunlight as these can cause interference.

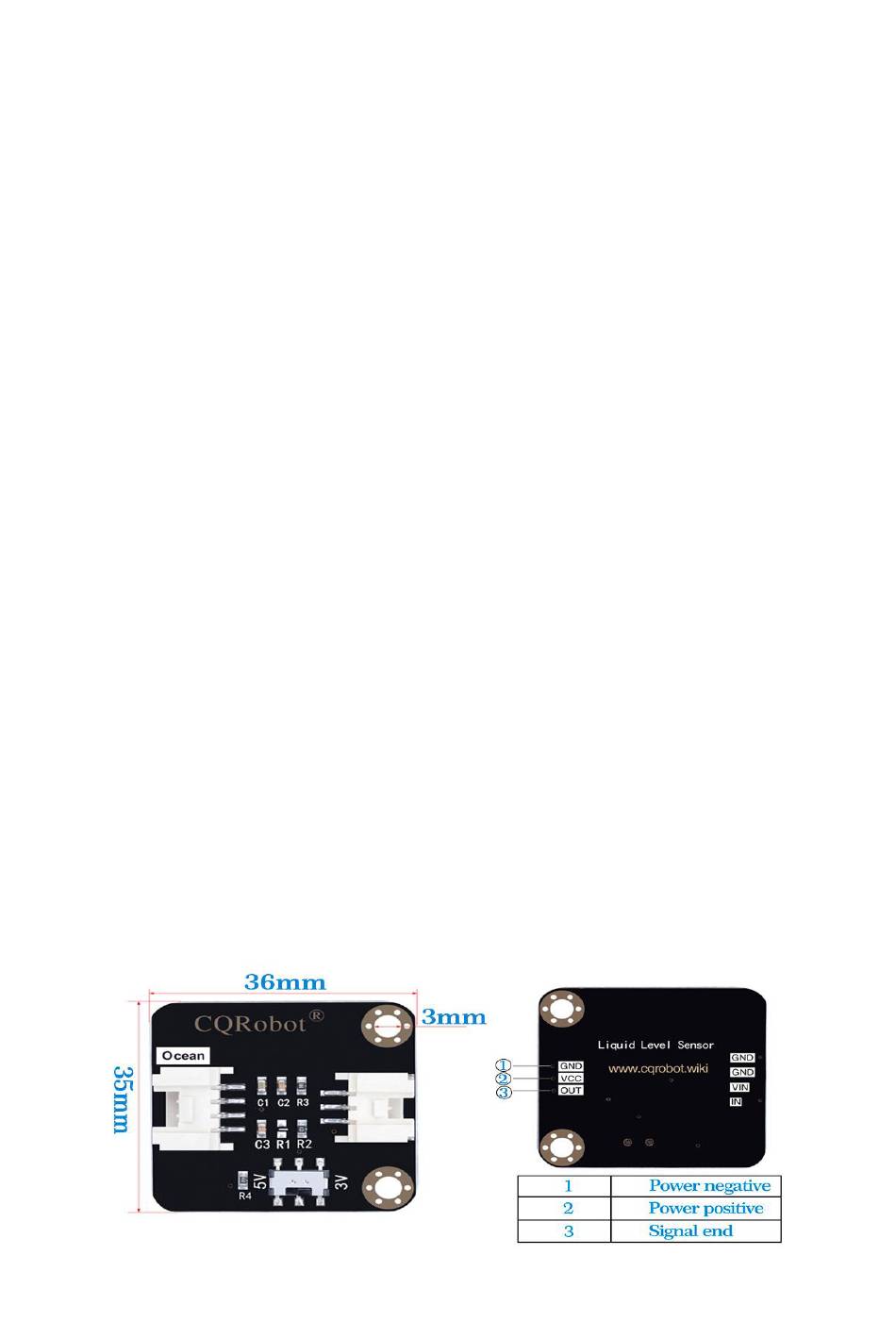

Display
