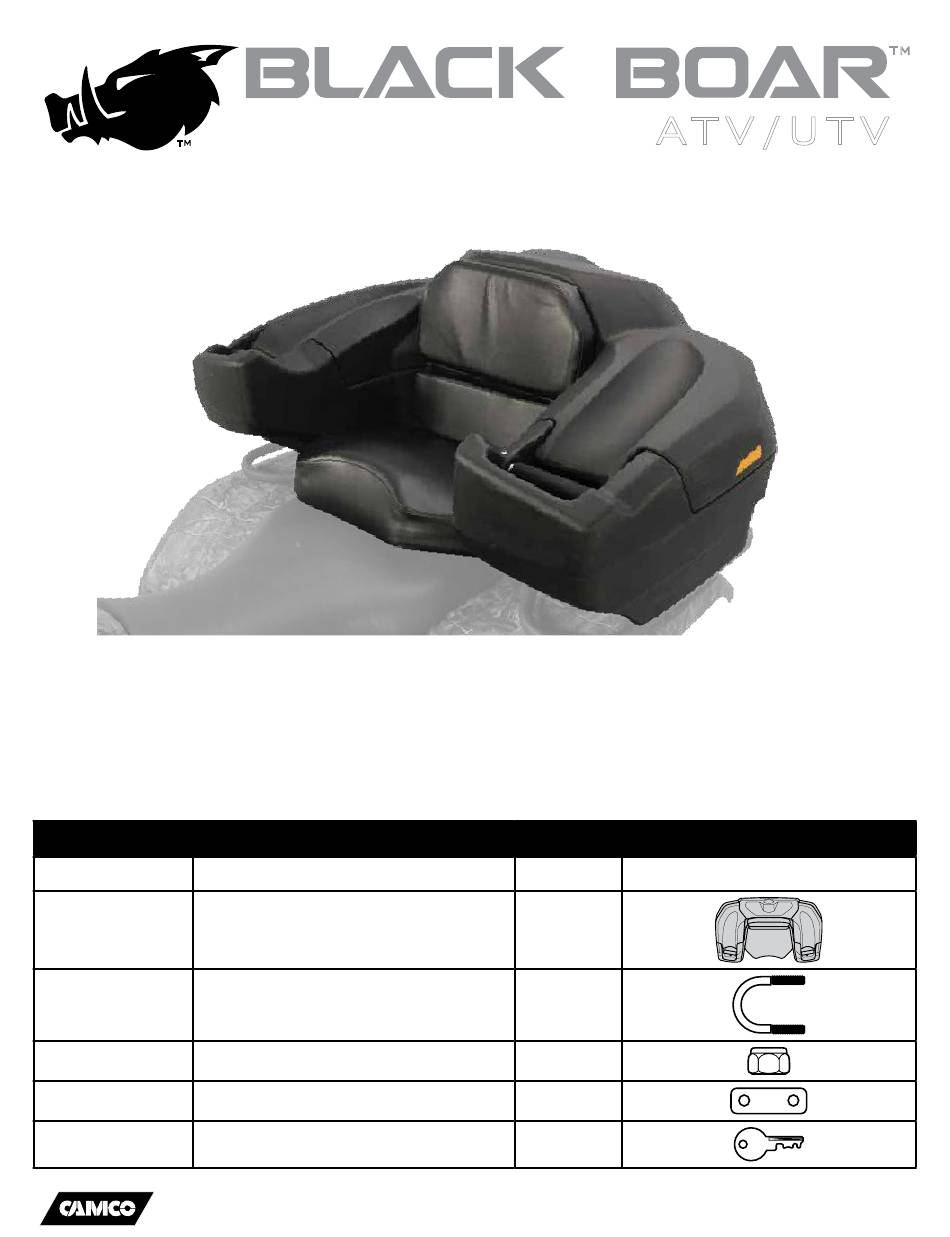

ATV Rear Lounger Installation Instructions
WARNINGS
•
Read and understand all directions prior to installation to prevent personal injury or damage to equipment.
•
Failure to follow these instructions may result in property damage or personal injury. Secure all cargo stored inside ATV Lounger –
shifting loads may have adverse effects on handling.
•
DO NOT operate ATV with passenger. Do NOT occupy ATV Lounger while vehicle is in motion. Follow ATV manufacturers'
recommendations for rack load capacity.
Item Number
1
ATV Rear Lounger
2
U-Bolt
3
Lock Nut
4
Backing Plate
5
Keys
Camco Mfg., Inc. / 121 Landmark Drive / Greensboro, NC 27409 / www.camco.net / 800-334-2004
Parts List
Item
A T V / U T V
QTY
1
4
8
4
2
T M
895313 1013538R1 #616
