SMART LOCK
User Guide / Installation Instruction
Thank you for purchasing our products. Please review this manual thoroughly before operating your device.
All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE217 and is the answer not in the manual?

Questions and answers

Summary of Contents for TEEHO TE217

  • Page 1 SMART LOCK User Guide / Installation Instruction Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
  • Page 2: Installation Instruction

    User Guide Installation Instruction At a Glance Installation instruction P 13 Download App How to Lock/Unlock Part list P 14 Programming Guide Definitions STEP 1: Prepare the door and check P 16 Troubleshooting dimensions Format of Entry Methods STEP 2: Install the latch and strike P 18 FCC Statement P 10...
  • Page 3: Interior Assembly

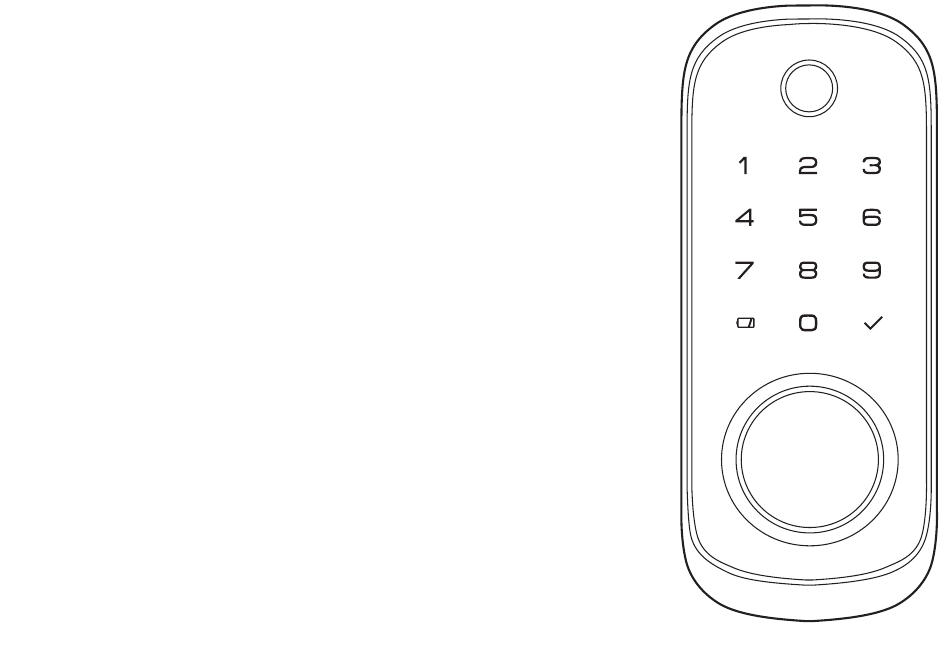

    USER GUIDE At a Glance Exterior Assembly Interior Assembly Fingerprint Battery Cover Touchscreen Keypad Battery Indicator Reset Button Keyhole Cover Multi-function Button Keyhole Thumb Turn Type-C Port...
  • Page 4 How to Lock / Unlock UNLOCK the door from outside UNLOCK the door from inside Master/ Fingerprint Rotate the thumb turn to the User code unlock position. Unlock LOCK the door from outside LOCK the door from inside Auto Lock One touch Mode Lock...
  • Page 5 Definitions • Wrong Entry Limit • Multi-function Button After 10 unsuccessful attempts at entering an invalid PIN code, the Push and hold the Multi-function button on the inside panel for 3 unit will shut down for 3 minutes. seconds to enable privacy mode. In priviacy mode, all user codes access will be disabled.
  • Page 6 Format of Entry Methods 12345678 1. Master PIN Code (4 to 10 digits): The default master PIN code is . Change the default master PIN code before programming other codes. 2. User PIN Code (4 to 10 digits): A total of 100 user PIN codes can be programmed and stored in the lock. 3.
  • Page 7 INSTALLATION INSTRUCTION Interior Assembly (G) Exterior Assembly Mounting Exterior Assembly Plate (E) Screw (F) (Optional) Mounting Latch (C) Plate Screws (J) Interior Assembly Screws (K) Strike (D) Backup Key (A) Reinforcement Plate (D-1) Latch Screws Strike Screws...
  • Page 8: Parts List

    Parts List Exterior Assembly x1 Strike x1 Backup Key x2 Latch x1 ⅜ ¾ 2 Drive-In Collar (Optional) Reinforcement Plate x1 (Optional) Mounting Plate x1 Exterior Assembly Interior Assembly x1 Strike Screws x4 Screw (Optional) AA Lithium Iron Battery x4 Latch Screws x2 Mounting Plate Screws x2 Interior Assembly...
  • Page 9 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60 or 70mm) Measure to Measure to confirm confirm that the that the backset is hole in the door is either 2-3/8" or 1-1/2’’ or 2-1/8" 1-1/2" or 2-1/8" 2-3/4" (60 or 70mm) (38mm or 54mm) 1"...
  • Page 10 STEP Install the latch and strike Determine backset and adjust the latch No adjustment is required. Proceed to next step. Slotted hole is NOT centered. Hold the latch in front of the Rotate and pull the door hole, with the latch face latch as shown to flush against the door edge.
  • Page 11 Use a screwdriver to test if deadbolt works smoothly. Install strike on the door frame. IMPORTANT: Make sure the hole in door frame is drilled a minimum of 1" (25mm) deep. (Optional)
  • Page 12 STEP Install exterior assembly Measure the diameter of the hole in the door. IMPORTANT: 1-1/2" (38mm) Before installation, make sure the latch is fully retracted (in the unlocked position) 1-1/2" or 2-1/8" Remove the spacer (38 or 54mm) Unlocked Locked 2-1/8 (54mm) Proceed to next step Keep parallel to...
  • Page 13: Install Interior Assembly

    STEP Install interior assembly Remove the Insert the Keep the thumb turn in vertical position battery cover cable and install the interior assembly. as illustrated. connector to the socket. Horizontal Push the connector in firmly until it is completely attached. Unlocked Attach Interior Load 4 AA batteries...
  • Page 14: Factory Default Settings

    Factory Default Settings How to Reset? Resetting the device will delete all user PIN codes and master PIN code stored in the lock. Step 1. Keep the door open and the lock unlocked (thumb turn is vertical). Step 2. Press and hold the reset button for 5 seconds until you hear the "BEEP", the latch rotates and turns out automatically.
  • Page 15: Download App

    Download App Download App from the App store or Google Play. Quick Set Up Tips • Register an account in the App. • Scan QR code on the interior panel to add to the device list. • Follow the setup steps to complete the Wi-Fi and Bluetooth connection. IMPORTANT: The Auto Lock is disabled by default, please complete the •...
  • Page 16: Programming Guide

    Programming Guide 12345678 The default master code is Before programming in the lock, it’s required that you change the IMPORTANT: default master code to a new master code of your own. New Master New Master Change Press PIN Code PIN Code Master Master PIN Code PIN Code...
  • Page 17 Programming Guide 1 time Press Scan unwanted fingerprint Delete Master PIN Code Fingerprint Successful Wait for green light to flash Green light flash + A Long beep Silent Mode disabled Press when green light flashes Silent Mode Master PIN Code Silent Mode enabled Wait for green light to flash when green light flashes...
  • Page 18: Troubleshooting

    Troubleshooting 1 Failed to connect to Wi-Fi 2 Failed to connect to Bluetooth If your smart lock failed to connect to Wi-Fi during the setup process, If your smart lock failed to connect to your phone's Bluetooth during please try the following tips. the setup process, please try the following tips.
  • Page 19 Troubleshooting 4 How to find ESN? 7 How to lock from the outside? The ESN can be found on the QR code, which put on the Press and hold any key for 2 seconds, it will lock from the outside interior assembly.
  • Page 20: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits • Consult the dealer or an experienced radio/TV technician for for a Class B digital device, pursuant to part 15 of the FCC Rules. help. These limits are designed to provide reasonable protection against Caution: Any changes or modifications to this device not explicitly harmful interference in a residential installation.
  • Page 21 ISED Statement English:This device contains licence-exempt transmitter(s)/ This device meets the exemption from the routine evaluation limits receiver(s) that comply with Innovation, Science and Economic in section 2.5 of RSS 102 and compliance with RSS 102 RF Development Canada’s licence-exempt RSS(s). Operation is exposure, users can obtain Canadian information on RF exposure subject to the following two conditions: and compliance.
  • Page 22 Warnings Failure to follow the below instructions could result in damage to • User PIN Codes: Can be 4-10 digits and can be set up in the product and void the factory warranty. the App. This manufacturer advises that no lock can provide complete •...
