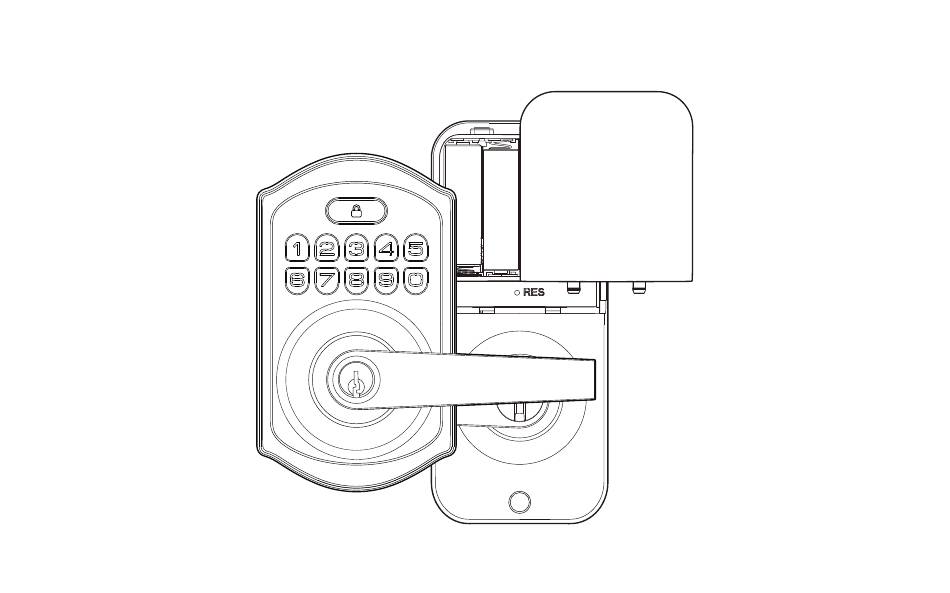

- Page 1 Keypad Lever Lock User Guide / Installation Instruction Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
-
Page 2: Installation Instruction
User Guide Installation Instruction At a Glance P 13 Factory Default Settings STEP 1: Prepare the door and check dimensions How to Use STEP 2: Install the latch and strike P 14 Code Format Definitions STEP 3: Install exterior assembly P 15 Programming Guide P 10... - Page 3 USER GUIDE At a Glance Exterior Assembly Interior Assembly Multi-function Button Battery Cover Keypad Reset Button Thumb Turn Cylinder...
- Page 4 How to Use UNLOCK the door from outside UNLOCK the door from inside Rotate the thumb turn to the horizontal position. Master / User Code Unlock LOCK the door from outside LOCK the door from inside Auto Lock Mode Manual Mode In Auto Lock mode, Rotate the thumb turn to the vertical Manual Mode...
- Page 5 Definitions • Master Code • Silent Mode Required for programming and feature settings. Master code can The beep sounds when pressing keypad can be muted. But you will be used to unlock the door under vacation mode. The default still hear low battery and system alerts. master code needs to be changed before programming.
-
Page 6: Installation Overview
INSTALLATION OVERVIEW Battery Cover (K) Interior Assembly (I) Exterior Assembly Mounting Interior Assembly Plate (G) Screws (J) Mounting Latch (C) Plate Screws (H) Lever Handle Backup Key (A) Strike Plate (F) Latch Screws Strike Plate Screws (E) -
Page 7: Parts List
Parts List Exterior Assembly x1 Backup Key x2 Latch x1 Latch Screws x2 Strike Plate Screws x2 Drive-in Collar (Optional) Mounting Plate x1 Mounting Plate Interior Assembly x1 Strike Plate x1 Screws x2 Battery Cover x1 Lever Handle Interior Assembly Reset Tool x1 Screws x3 If any parts are missing or damaged, please contact customer support. - Page 8 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60 or 70mm) Measure to Measure to confirm confirm that the that the backset is hole in the door is either 2-3/8" or 2-1/8" 2-1/8" (54mm). 2-3/4" (60 or 70mm) 54mm 1"...
- Page 9 STEP Install the latch and strike Latch backset adjustment Backset is the distance from the door edge to the center of the hole in the door. The latch is provided with adjustable design which can fit either 2-3/8" (60mm) or 2-3/4" (70mm) backset. If the backset of your door is 2-3/8"...
- Page 10 Install the latch Latch Screws (D) chiseled Opening outwards not chiseled Opening inwards Install strike on the door frame. IMPORTANT: Make sure the hole in door frame is Note: The bevel of the latch shall be aligned with the bevel of the strike plate. drilled a minimum of 1"...
- Page 11 STEP Install exterior assembly When install the handle with the slot of the door, the torque blade shall be the horizontal position. a. If your door is b. If your door is left right handed, handed, please install please install the the handle as shown handle as shown on the right.
-
Page 12: Install Interior Assembly
STEP Install interior assembly Install the lock handle in interior assembly. Push the battery cover out in the direction as Set right the lock handle in interior assembly, illustrated. press the hole on the bottom of the interior assembly by using the reset tool, then push the lock handle in until you hear the sound of “Click”. - Page 13 Keep the thumb turn in vertical position and install Insert the cable connector to the socket. Push the the interior assembly. connector in firmly until it is completely attached. Horizontal Vertical Attach Interior Assembly to the Mounting Plate, please Keep the door open and unlocked, load 4 AA batteries into make sure the Interior Assembly Screws reach the screw the battery compartment.
- Page 14 STEP Reverse the Direction of Rear Handle (Optional) Rear handle disassembly steps Press the handle downwards and find the joint in the hole on the bottom of the interior assembly, keep pressing it by using the reset tool and pull out the handle simultaneously.
-
Page 15: Factory Default Settings
Factory Default Settings How to Reset? Reset button The resetting will delete all User Codes IMPORTANT: stored in the lock. Step 1. Keep the door open and turn the thumb turn to the Horizontal position (Unlocked). Step 2. Press and hold the Reset button by using the reset tool, at the same time take out one battery and then place it back. -
Page 16: Code Format
Code Format 1. Master Code (4 to 10 digits): The default Master Code is 12345678. It is required that you change it to a code of your own before programming. 2. User Code (4 to 10 digits): A total of 20 User Codes (including one temporary one-time User Code) can be programmed and stored. 3. -
Page 17: Programming Guide
12345678 The default Master Code is Programming Guide IMPORTANT: It is required that you change it to a code of your own before programming. + Master Code + New Master Code + New Master Code + Change Press Master Code Succeed Wait for long green lights Wait for green light flash... - Page 18 Auto Lock Enabled + Master Code + Press Green light flash Auto Lock Auto Lock Disabled Wait for long green lights Wait for green light flash Green light flash Enter New Duration Time Press + Master Code + （10-99） Set Auto Lock Time Succeed Wait for green light flash...
-
Page 19: Troubleshooting
Troubleshooting Information & Safety Warnings Why does not the handle turn after installation complete? Protect your User Codes and Master Code. Please turn the thumb turn to horizontal position to unlock, then the handle can be turned. Restrict access to your lock’s interior assembly and routinely check your settings to ensure they have not been altered without your knowledge.
