Summary of Contents for DigiTech Black-13

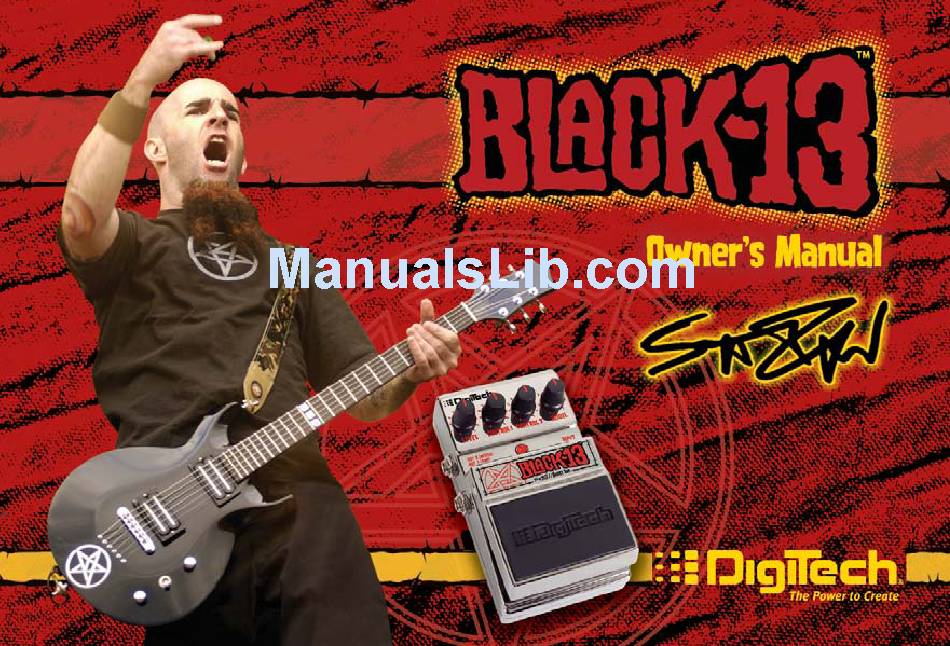

  • Page 1 Photo: Andy Buchanan...
  • Page 2 Sandy, Utah 84070, USA declares that the product: Important Safety Instructions 2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service. Product name: Black-13 1.

  • Page 3: Included Items

    Scott Ian Black-13 ™ Artist Series Pedal includes the following items: DigiTech’s philosophy for developing products begins with the desire to provide every guitarist with the best-sounding, most creative tools • DigiTech Scott Ian Black-13 Artist Series Pedal possible. To this end, our revolutionary technology, Production •...
  • Page 4 7. “Finale” 9. OUT 1 (AMP) 3. AC Adapter Jack Connect this output jack to your guitar Connect only the included DigiTech® Please refer to the Knob Function amplifier. PS200R (9V DC) power supply to this Descriptions section on the following jack.

  • Page 5: Model Descriptions

    Model Descriptions “I Am the Law,” Anthrax – Among the Living MODEL 1. (1987) Model 1 captures the clearer, more sizzling distortion tone Scott used for “I Am the Law”. Use the CONTROL 1 knob to boost or cut the low frequencies. Use the CONTROL 2 knob to boost or cut the high frequencies.
  • Page 6 “Protest and Survive,” Anthrax – Attack of the Killer B’s “Finale,” Anthrax – State of Euphoria MODEL 4. (1991) MODEL 7. (1988) This is based on the raw, more diffuse distortion tone Scott Model 7 is based on pitch-shifted delay effect Scott used used for the intro to “Protest and Survive”.

  • Page 7: Output Diagram

    Connections Output Diagram Setup Directions Follow these setup directions before use: The Black-13 ™ pedal features a single INPUT and a pair of 1.Turn the volume down on the amplifier/mixer you are connecting to. outputs, OUT 1 (AMP) and OUT 2 (MIXER). The two 2.
  • Page 8 Connections Diagram (Amp) Connections Diagram (Amp and Mixer)

  • Page 9: Specifications

    • Input Impedance - 1 MOhms • Output Impedance - 100 Ohms • Power Supply - Included DigiTech PS200R or 9V Alkaline Dry Battery • Power Consumption - 0.75 Watts (w/PS200R power supply) • Battery Life - Approximately 4 hours (with continuous usage) •...

  • Page 10: Battery Replacement

    Battery Replacement 1. Using the tip of a 1/4” guitar cable, push one of the release pins in on either side of the pedal, and remove the pedal from the pedal chassis. 2. Remove the battery from the battery compartment and disconnect the battery cable.
  • Page 11 ® , Black-13 ™ , and Production Modeling ™ are trademarks of the Harman International Industries Incorporated. All other product names, trademarks and artists’ names are the property of their respective owners, which are in no way associated with DigiTech.
