Trustech PW15R Installation Instructions

Installation Instructions

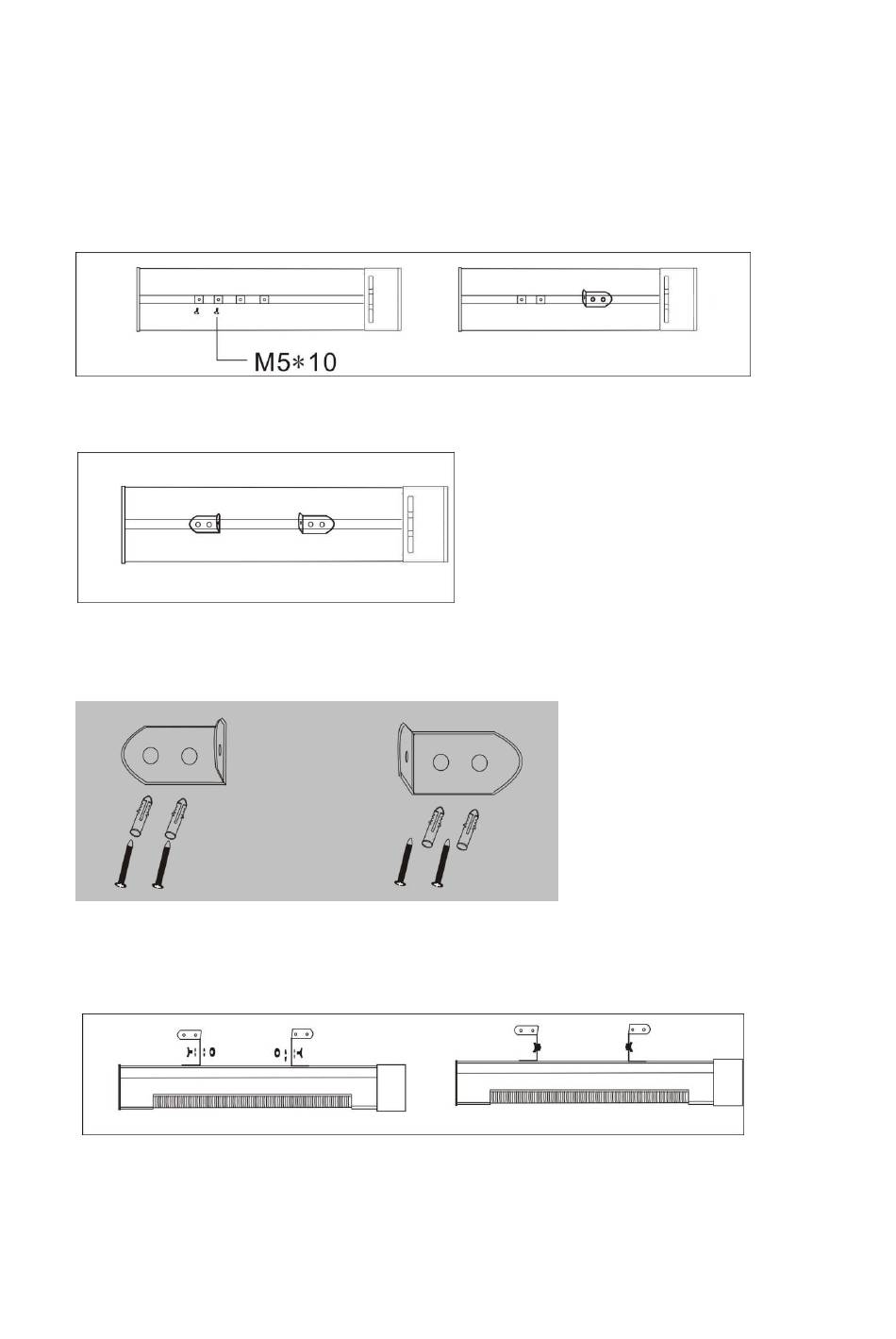

There are 4 brackets and fasteners used with the heater. In addition, in the groove on the back
of the heater, there are 4 (0.98*0.98 inch) square fastener washers .
Loosen the square washers and fasten 2 brackets to the groove on the back of the heater with
screws.
1. Fasten the brackets at an appropriate distance (18-22 inch) of each other.
2. Use fasteners to fix the other two brackets at an appropriate distance on the wall and keep
them parallel to the floor (at least 71 inch from the floor and at least 20 inch from the ceiling).
3. With the help of screws and nuts, connect the bracket of the heater to the bracket fixed on
the wall. Install the heater at the required angle (in the direction of the area to be heated).
4. The electric wiring of the heater must be completed by qualified personnel.
