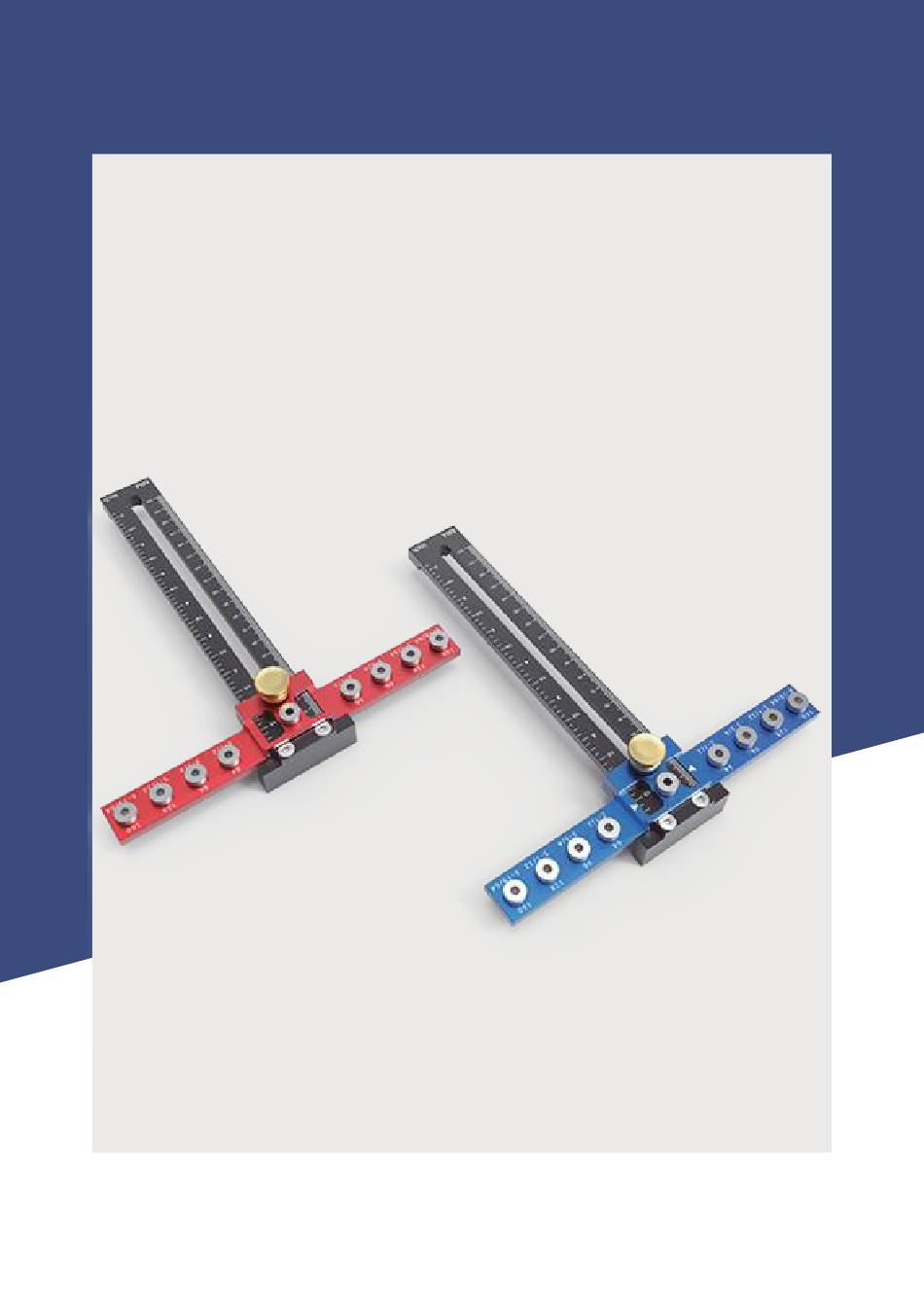

- Page 1 + + + PRODUCT INTRODUCTION Adjustable cabinet door punch...
- Page 2 Product accessories model: Adjustable cabinet door punch Net product weight : Gross product weight : 188.4g 243.3g product size : See the size shown below 30mm Inner box size : 255*52*71mm 205mm 177mm 160mm/6.3IN 128mm/5IN 96mm/3.8IN 64mm/2.5IN CENTRE BORE...
- Page 3 Product Structure Newly upgraded adjustable cabinet door T-punch.Porous measurement, Seamless fit,Rugged,Accurate positioning and fast drilling (A).Horizontal positioning ruler (B).Longitudinal scale sliding ruler (E).Adjustable retaining nut (F).4mm drill bit (D).screw (C).Slide the support (G).Hexagon wrench plate lengthwise (A).Horizontal positioning ruler*1 (D).screw * 4 (B).Longitudinal scale sliding ruler*2 (E).Adjustable retaining nut *1 (C).Slide the support plate lengthwise *1...
-
Page 4: Product Installation
Product installation 1.Loosen the nut and remove the screw fitting.（FIGURE 1） 2.Loosen the fixing screws counterclockwise.（FIGURE 2） 3.Install the screw（FIGURE 3）, Put the shims on（FIGURE 4）. 4.Install the nut, adjust it in the right position, and tighten the nut. （FIGURE 5） 5.Install the longitudinal sliding support plate and tighten the screws to complete the installation.（FIGURE 6）... -
Page 5: How To Use
How to use (1) Find the centerline of the board. (FIGURE 1) (2) Align the locator pointer with the centerline.(FIGURE 2) (3) Dolly moves Horizontal positioning ruler, tighten the nut.(FIGURE 3) . (4) Adjust position after twisting nut, fixed position.(FIGURE 4) . (5) According to the specifications of the handle, carry out the corresponding drilling sleeve hole opening.(FIGURE 5) . - Page 6 Product packaging...
