HFM HFMPHJK001-BK Product Introduction

Pocket hole jig kit

Download this manual

+ + +

PRODUCT

INTRODUCTION

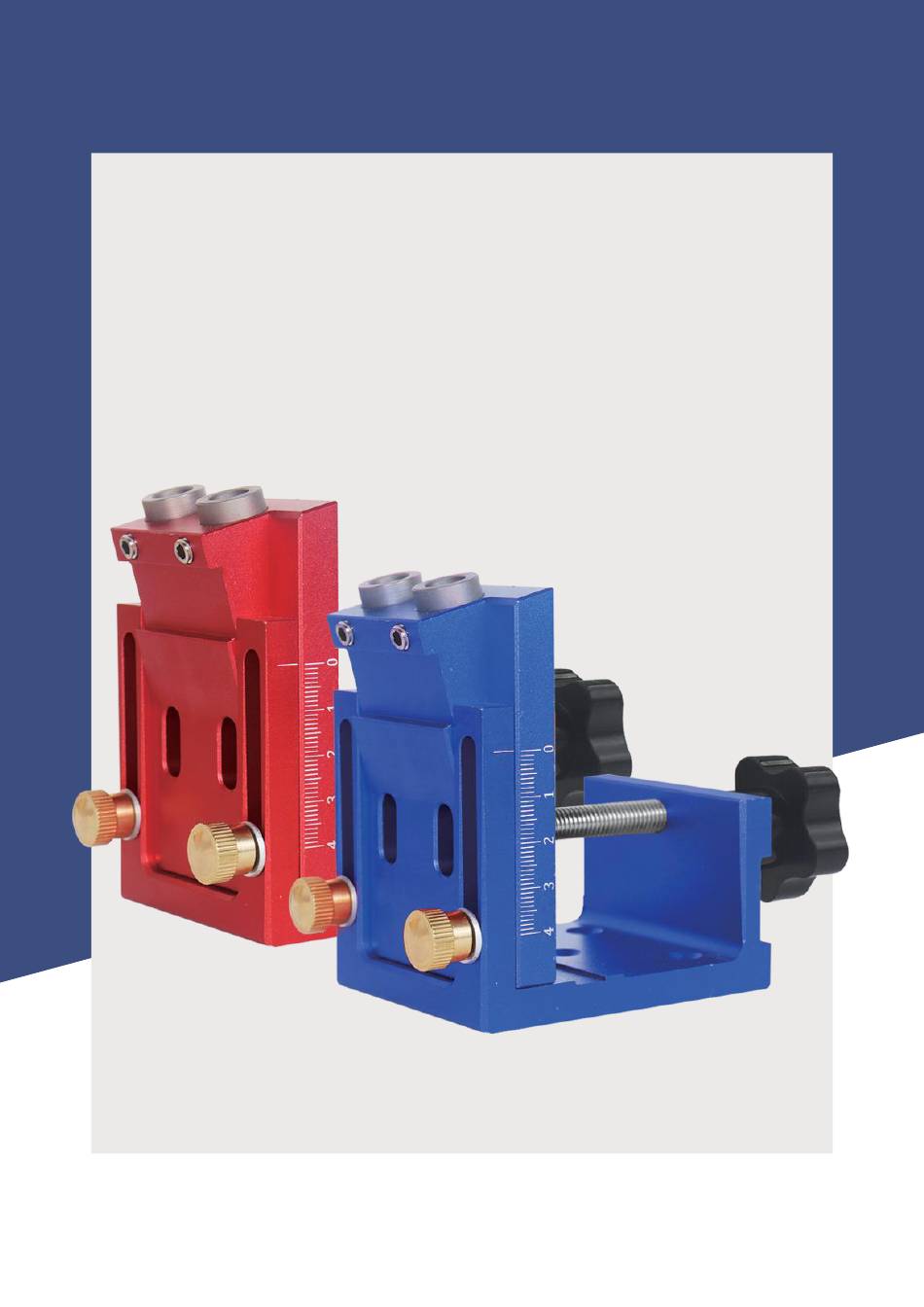

P o cket H o l e Ji g Ki t

Need help?

Do you have a question about the HFMPHJK001-BK and is the answer not in the manual?

Page 1 + + + PRODUCT INTRODUCTION P o cket H o l e Ji g Ki t...
Page 2 Product accessories Bit, with ring*1 Bit, without ring*1 Product body*1 Screws*10 Plug*10 Wrench*1 For approval*1...
Page 3: Specification
Product structure SPECIFICATION Hole Angle: Drill Sleeve Material: 15° Steel Material:Aluminum Alloy Drill Bit Material: High Speed Steel Suitable Plank Thickness: 0.47''-1.77''(12-45mm) Package List: Pocket Hole Jig x 1, Drill bit x 2, Screwdriver x 1, Pocket Hole Screws x 10, Star Screw x 1, Pocket Hole Plugs x 10, Limit Ring x 1...
Page 4 Product dimensions...
Page 5 Installation steps 1.Take out the product.（FIGURE 1） 2.Loosen the screw press.（FIGURE 2） 3.Punch the required height adjustment（FIGURE 3） 4.Drill point is on the ﬂoor in front of the raised 1 mm or so, and lock the adjusting ring.（FIGURE 4） 5.Into the wood and locking screw press.（FIGURE 5）...
Page 6 FIGURE 3 FIGURE 4 FIGURE 5 FIGURE 6...
