NuTone B0CY4XXH45 Installation Instructions

6" ROOF CAP
INSTALLATION INSTRUCTIONS
PLANNING
This roof cap includes a 6" diameter collar that accepts
6" insulated flexible duct. Duct can be attached using
duct tape or a duct clamp. Roof cap is mounted and
sealed to roof first, then duct is attached from the inside.
Before installing roof cap, make sure that bird screen
is in place. Refer to 'MAINTENANCE" section.
INSTALLATION

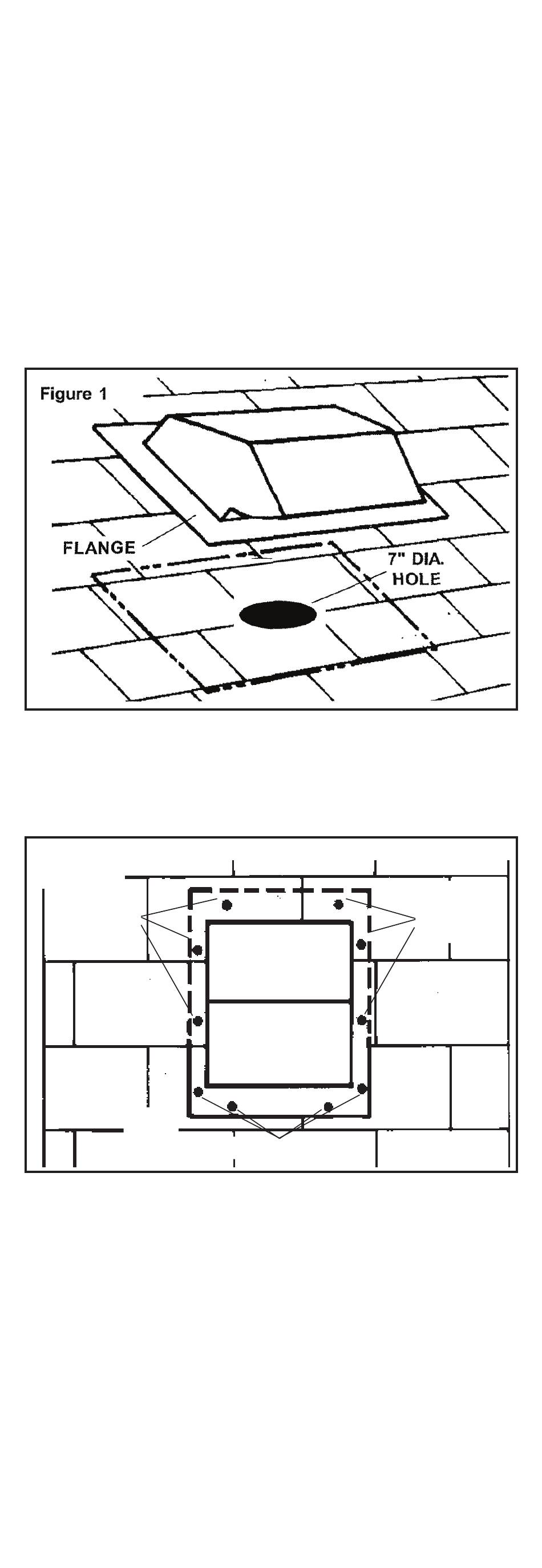

1. Cut approximately a 7" diameter hole in roof. (Fig-
ure 1)
2. Apply a bead of caulk or roof cement around un-
derside of flange - about 1" in from edges.
Figure 2
NAIL
BENEATH
SHINGLES
3. Carefully lift shingles and slide top of flange under
shingles. Nail flange to roof (under shingles) at top
two corners and two sides. Nail directly to roof in
four places at bottom. (Figure 2)
TOP VIEW
NAIL DIRECTLY TO ROOF
NAIL
BENEATH
SHINGLES
