Delta T14064 Series Manual
Delta T14064 Series Manual

Delta T14064 Series Manual

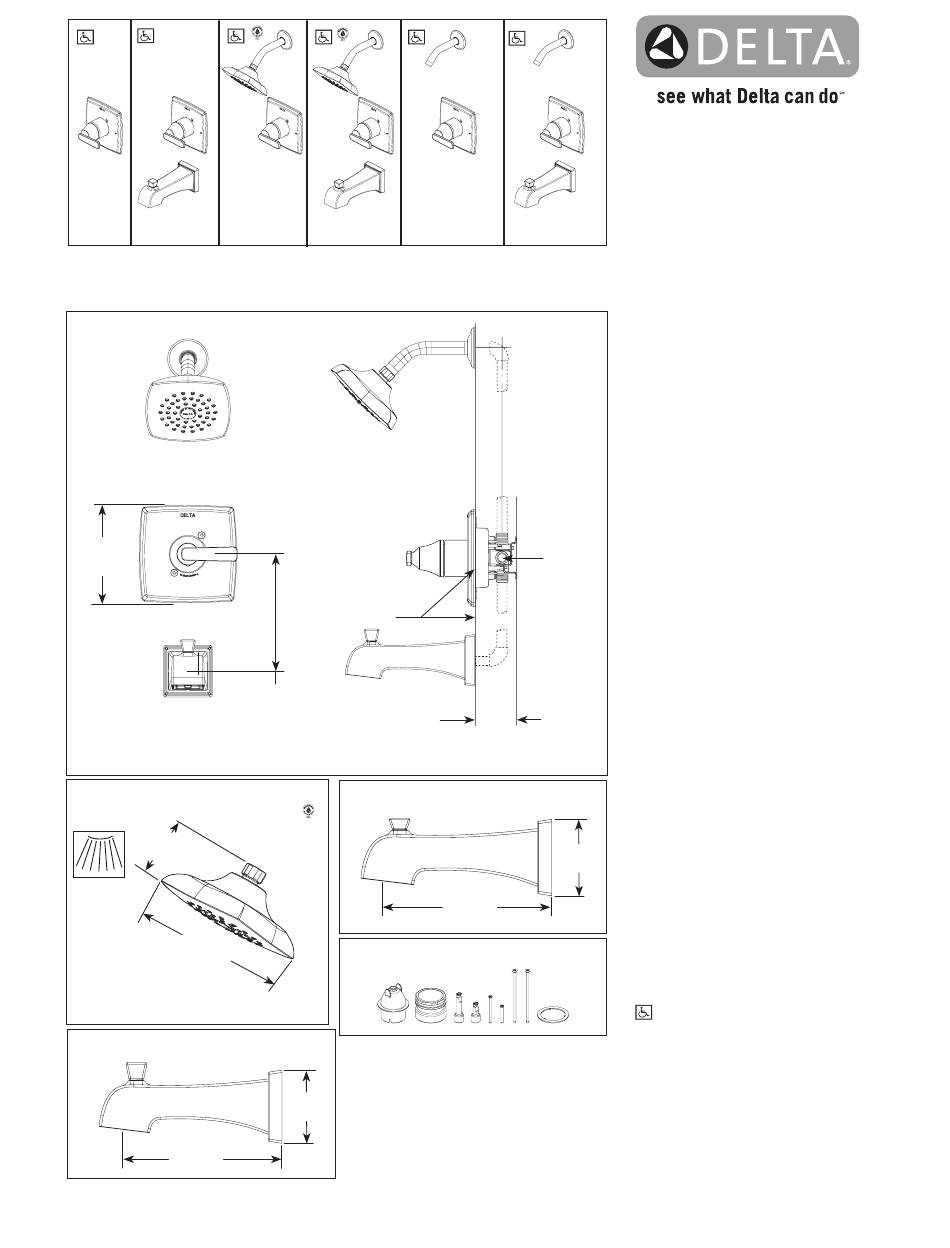

Tub and shower faucet trim

Advertisement

Quick Links

T14164
T14064
T14264
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6"
(152 mm)
Square
8" (203 mm)
18" (457 mm)
RP64859▲ Touch-Clean
Raincan Shower Head
®
1.75 GPM
2 11/16"
(68 mm)
Full Spray
5 1/4"
(133 mm)
RP77091▲ (Pull-Up Diverter)
7 15/16"
(202 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14064 Rev. F
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
T14464
T14264-
Face of plasterguard
should be flush with
finish wall line
min.
max.
RP77092▲ (Non Diverter)
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
RP77991 Available Extension Kit
3 3/16"
(81 mm)
LHD
T14464-
LHD
Supply
2 3/4"
(70 mm)
3 3/16"
(81 mm)
7 15/16"
(202 mm)
TUB AND SHOWER
FAUCET TRIM
®
■ Ashlyn
Bath Collection
■ Valve Only (T14064)
■ Tub Only (T14164)
■ Shower Only (T14264 & T14264-LHD)
■ Tub/Shower (T14464 & T14464-LHD)
FEATURES:
Monitor
®
14 Series pressure balanced bath
mixing valve trim
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• For use with MultiChoice ® Universal rough valve body
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into hot
water zone
• 120° maximum handle rotation
• All parts replaceable from the front of the valve
• Maximum 1.75 gpm @ 8- psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.0 gpm @ 60 psi with
R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm),
including threaded ends
• Red/blue pad print temperature indicators on handle
• "-LHD" models indicate less shower head
• Stem extension kit RP77991 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77991 ships with
chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
WARRANTY
• Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
• Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
COMPLIES WITH:
ASME A1 12.18.1 / CSA B125.1
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
®
EPA WaterSense
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
