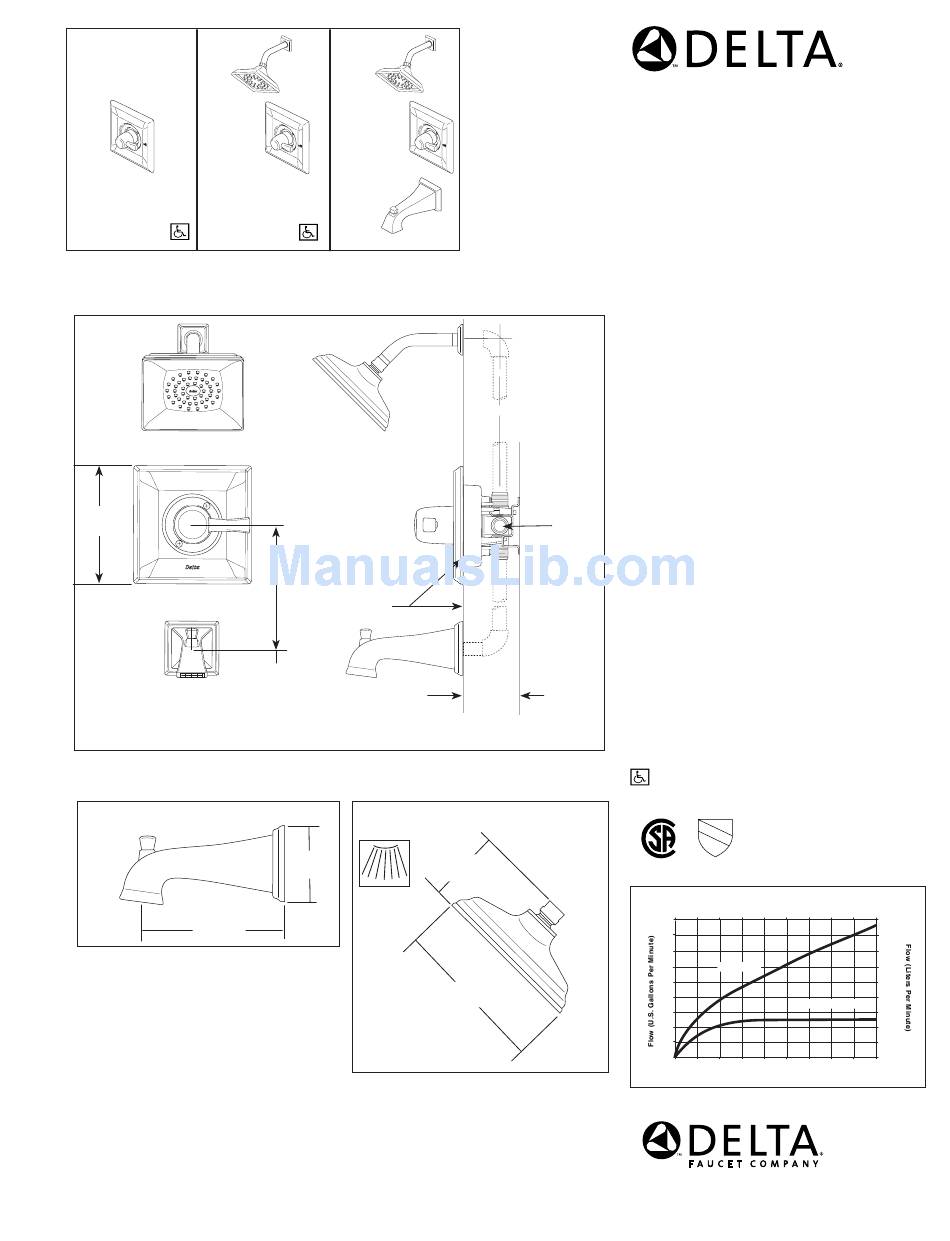

Delta Dryden T14051 Specification Sheet

T14051 T14251
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
18" (457 mm)
▲ = Designate Proper Finish Suffix
RP52148▲ (Pull-Up Diverter)
6 1/4"
(159 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-T14051 Rev. A
T14451
Face of plasterguard
should be flush with
finish wall line
8" (203 mm)
min.
max.
RP52143▲ Touch-Clean
3 1/2"
(89 mm)
Full Spray
Supply
2 3/4"
(70 mm)
®
Raincan Showerhead
3 1/8"
(79 mm)
6 9/16"
(167 mm)
Tub AND SHOWER
FAuCET TRIM
■ Dryden™ Bath Collection
■ Valve Only (T14051)
■ Shower Only (T14251)
■ Tub/Shower (T14451)
STANDARD SPECIFICATIONS:
•
®
Monitor 14 Series pressure balanced bath
mixing valve with Scald-Guard
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
®
For use with MultiChoice Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Temperature only controlled with handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A1 12.18.1 / CSA B125.1
•
ASSE 1016
Indicates ADA compliance to
ICC/ANSI A117.1
U P
® C
®
Pressure (kPa)
0 69 138 207 276 345 414
9
8
7
Tub Filler
6
5
4
Showerhead
3
2
1
0
0 10 20 30 40 50 60
Pressure (PSI)
