Crest Audio PRO II SERIES 7002 Specifications

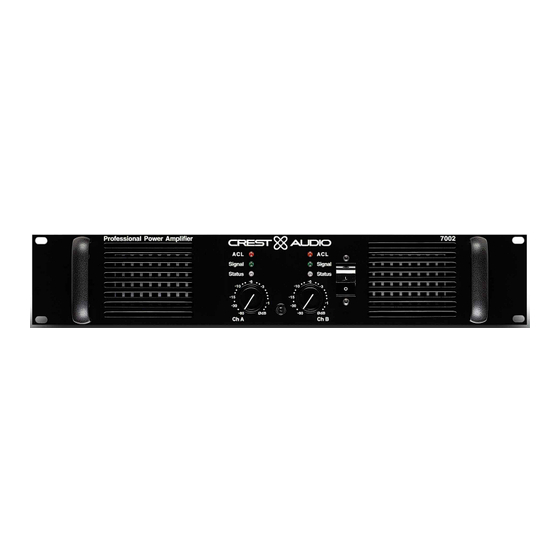

7002 power amplifier
description
The Pro II Series heralds a major advance in amplifier design
from Crest Audio. Extreme reliability and hallmark sonic accu-
racy of the legendary Professional Series is maintained in the
same rugged package—but at only half the weight. Such dra-
matic weight savings are made possible by PowerLok, a radical
new power-supply technology that provides significant perfor-
mance and flexibility advances over conventional designs.
PowerLok is Crest Audio's unique implementation of Power
Factor Correction, which allows current to be drawn
throughout the entire cycle of the AC line-frequency, provid-
ing maximum output power, while drawing significantly
smaller peak currents from the AC line.
Compared with an amplifier using a conventional power-sup-
ply, PowerLok requires less peak power to produce identical
output power results—and because PowerLok's current peaks
are smaller, a Pro II amplifier can be serviced by a lower-rated
breaker than a conventional amplifier of similar wattage.
superior sound quality
excellent low frequency and transient response
louder than conventional amplifiers
—maximum output level never dips
constant, predictable performance
consistent power output
accepts any line voltage worldwide—50 or 60Hz
accepts long power cable runs with no loss of output power
draws significantly less peak current
lighter-duty power distribution components
low line-voltage distortion
minimal supply-ripple
cost-effective
extreme reliability
reduced shipping costs—half the weight of conventional amplifiers
preliminary power specifications
1 , 0.01% THD+N
kHz
7002
20 -20
Hz kHz
8 stereo
Ω
515w
500w
, 0.1% THD+N
features
PowerLok technology
.
dramatically reduced net weight
.
latest generation of high-speed, wide-bandwidth output devices
.
twin-tunnel cooling with back-to-front air flow
.
four, rear-mounted, continuously-variable-speed fans
.
balanced male and female xlr inputs
.
with switch-configurable xlr polarity and sensitivity selection
Speakon and five-way binding post output connectors
.
stereo, parallel, bridged-mono: mode selector switch
.
ground-lift switch
.
front panel power switch, rear panel circuit-breaker
.
recessed, stepped attenuators
.
modular construction
.
aluminum chassis
.
five-year warranty
.
TourClass ® protection circuits
acl active clip limiting prevents speaker damage by
providing gentle gain reduction at the clipping threshold.
igm instantaneous gain modulation monitors speaker loads to
detect conditions that may overstress output devices, allowing safe
operation into nominal 2
autoramp gradually increases gain to the attenuator level-
settings when the amplifier is turned on.
Other protection features include: short circuit, dc voltage,
comprehensive thermal management, current in-rush turn-
on/off transient, and sub/ultrasonic input.
4 stereo 2 stereo
Ω Ω
830w 1150w
800w 1000w
speaker loads.
Ω
8 bridged
Ω
1660w
1600w
Power figures are watts per channel, both channels driven.
4 bridged
Ω
2300w
2000w
