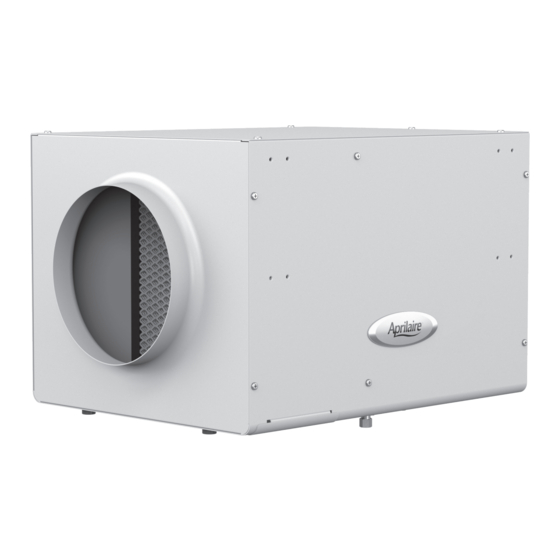

Aprilaire 300 Installation Instructions Manual
Self-contained fan powered whole-house humidifier
Hide thumbs
Also See for 300:
- Owner's manual (20 pages) ,
- Installation manual ,
- Installation instructions manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aprilaire 300
Summary of Contents for Aprilaire 300
- Page 1 Model 300 Humidifier Installation Instructions READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Excess humidity can cause moisture accumulation which can allow the possibility for mold growth in the home. • Connect Model 300 Series power cord only to 120 VAC, 60Hz. Follow all state and local codes regarding electrical wiring. -
Page 3: Location
. INSTALLATION LOCATION The Model 300 can be located in a utility closet, laundry room, or basement or any space where the unit can be mounted to floor joists and with safe and reliable access to hot water . SOUND Hard duct is recommended for optimum evaporative performance, however, sound coming from the running unit is quieter with the use of flex duct . - Page 4 To install parallel to joist, attach the angle supports to the middle holes in the housing with the #8 x 1/2" screws provided . If distance between joists is less than 14 . 5 ", top mounting holes must be used . Using the hole spacing guide in FIGURE 4, attach the joist brackets in a parallel manner so the bracket edges are approximately 15 inches apart, as shown in FIGURE 2, with the #8 x 1"...
-
Page 5: Air Distribution And Evaporative Capacity
. The Model 300 has the capacity to deliver 250 CFM at 0 . 1 inches of water gauge external resistance equivalent to 80 effective feet of duct length . The evaporative capacity at various effective duct lengths are plotted in the graph below . -
Page 6: Plumbing
• Using a section of braided tubing near the unit can reduce water hammer . • A condensate pump can be used if an adequate drain angle cannot be achieved (Aprilaire Part #4856) . HOT WATER DELIVERY TIME THROUGH STANDARD PIPE SIZE 3/4"... -
Page 7: Wiring
WIRING POWER FIGURE 5 – WIRING The Model 300 is prewired internally and equipped with a 120 VAC cord and plug . POWER CORD HUMIDITY CONTROL HUMIDISTAT The Aprilaire® Model 65 Humidifier Control is designed for 24 VAC PCB ASSY to control humidification equipment . - Page 8 AprilairePartners.com P.O. Box 1467 Madison, WI 53701-1467 800.334.6011 F: 608.257.4357 Printed in USA ©2021 Aprilaire – Division of Research Products Corporation 10015433 B2209189B 3.21...
