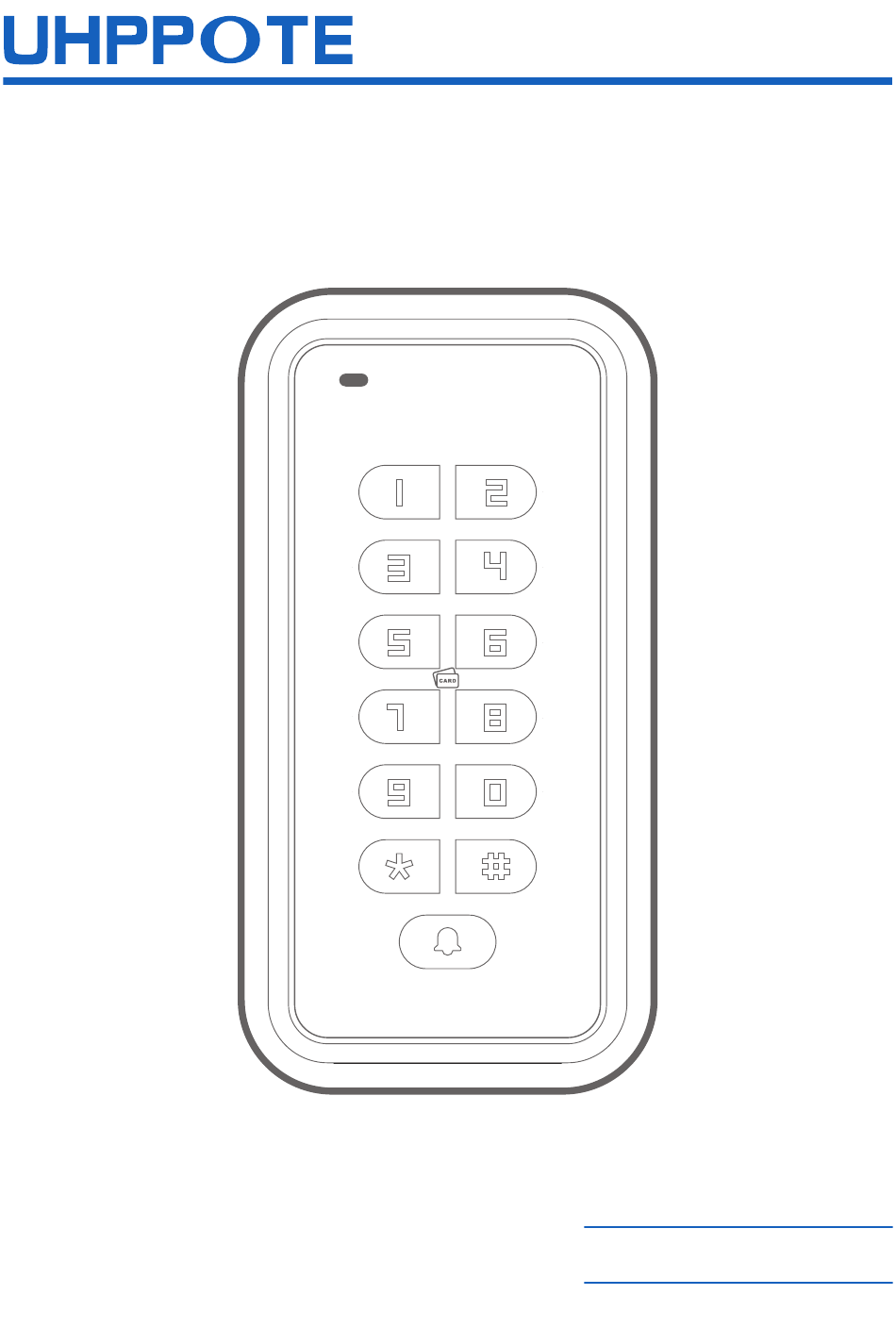

- Page 1 ACCESS CONTROL KEYPAD HBK-A03 USER MANUAL...
-
Page 2: Packing List
(DKC) or Wiegand output for universal compatibility with access control systems. The outdoor-rated 12 key plastic 2'x6' keypad features silicone rubber keys. HBK-A03 keypads are shipped in 'DKC' from the factory. When interfacing with the Wiegand, please change the keypad to 'Wiegand Mode'. Instructions on how to change from DKC to Wiegand mode are found in the Changing to Wiegand Mode section below. -
Page 3: Specifications
Specifications Card Type Operating Voltage ID card or IC card 12VDC Door Open Time Lock Output Load 0-99 seconds Max. 1.5A Card Reading Distance Card Capacity Max. 2-23/64" 2000 PIN Capacity Product Weight 1.01lb Zinc Alloy Idle Current 50mA Enclosure Material Waterproof Level Operating Temperature IP66... -
Page 4: Installation
Punching the holes before installation according to the diagram. 依据该模板，贴在机器将要安装的位置 （建议距离地⾯1.4-1.5⽶） 按照图标做安装前的打孔、布线等准备 15/64" [ 6mm] 7/16" HBK-A03 [ 11mm] Figure 1 - Hole locations Put the supplied plastic anchors into the 4 holes Figure 2 - Installation of plastic anchors... - Page 5 4X M4x25mm Figure 3 - Installation of Mounting Hardware ENGAGE TOP OF HOUSING WITH MOUNTING BRACKET M3x8mm Flat ROUTE CABLE Head Screw THROUGH HOLE Figure 4 - Installation of HBK-A03 Figure 5 - Installation of securing screw...
- Page 6 (Recommend 1.4-1.5m from the ground). Punching the holes before installation according to the diagram. 依据该模板，贴在机器将要安装的位置 （建议距离地⾯1.4-1.5⽶） 按照图标做安装前的打孔、布线等准备 HBK-A03 Accessories Package x1 Installation Drawing HBK-A03 x1 User Manual x1 Wiring Terminal Connections Wiring Reference DKC Terminal Wire Color +12V Positive DC supply lead Ground...
- Page 7 Wiring diagram for operating as a Wiegand Output Reader Orange LED-BP Light Blue BELL Blue BELL White LED-BP Green Brown Grey Pink Purple +12V PUSH Access controller Yellow OPEN Black +12V In this mode the device supports Wiegand 26 bit output.
- Page 8 Common Power Supply Diagram Orange LED-BP Light Blue BELL Blue BELL BELL White Green Brown Fail-safe lock Grey Pink Fail-secure lock Purple PUSH EXIT BUTTON Yellow OPEN Black +12V +12V...
- Page 9 Special Power Supply Diagram Orange LED-BP Light Blue BELL Blue BELL BELL White Green Brown Fail-safe lock Grey Fail-secure lock Pink Purple PUSH PUSH Yellow OPEN EXIT BUTTON Black +12V +12V...
-
Page 10: Sound And Light Indication
Sound and Light Indication Operation Status Sound LED Indicator PIN only mode White Standby Other mode Flash yellow Press # Press # # Yellow When a menu is waiting Flash blue In the programming to be selected mode When a menu has been Blue selected A short beep... -
Page 11: Basic Operation
Basic Operation Change New Admin Code The admin code can be the admin 4-8 long. Repeat New Admin Code code …… Read Card 1 Read Card 2 To add card users Read Card N # To add a card user with User ID Number # Read Card # ID number Add users... -
Page 12: Advanced Application
One public code is supported Public Code which can be used to open the Set public Repeat Public Code door in any open mode. code To delete the public code 0000 # Entry is by either Card or PIN (Default) Set open Entry is by Card and PIN together mode... -
Page 13: System Setting
System Setting Set the output mode to Normal Mode. The door will lock automatically after an unlock operation. Set output mode Set the output mode to Toggle Mode. The door will keep unlocking until next unlock operation. Set working as wiegand reader Optional Setting ON (Default) Set sound... -
Page 14: Keypad Operation
PIN # PIN user Keypad Operation HBK-A03 are shipped in DKC from the factory. When interfacing with the Wiegand, please change the keypad to Wiegand Mode . Instructions on how to change from DKC to Wiegand mode are found below. -
Page 15: Fcc Warning
FCC Warning FCC ID: 2A4H6HBK-A01 This device complies with part 15 of the FCC Rules. Operation is subject to the foll- owing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ... - Page 16 2023 HOBK Electronic Technology Co., Ltd All rights reserved >75% recycled paper Produced By HOBK...
