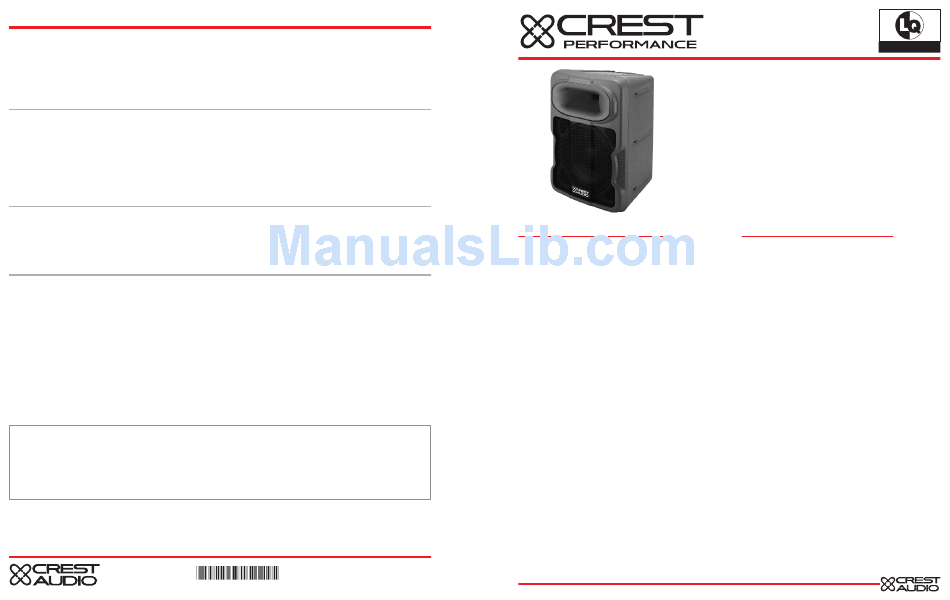

Crest Audio LQ10 LOUDSPEAKER Specifications

Specifications

LQ10 Loudspeaker
frequency response 74 Hz to 18 kHz ±3 dB
usable low frequency limit (-10 dB point) 57 Hz
power handling Full Range
sound pressure level Full Range
maximum sound pressure level (1 meter) Full Range
radiation angle measured 90 degrees horizontal x 40 degrees vertical
transducer complement Low Freq
High Freq
box tuning frequency Fbox
crossover frequency (internal passive) Low Freq
time offset Low Freq
High Freq
impedance (Z) Full Range
input connections 2x Neutrik
enclosure materials and finish Dark gray high impact polypropylene 1/4" thick finished in textured molded surface
mounting provisions (8) 1/4" threaded mounting points, four each top and bottom
dimensions (H x W x D) front
rear
net weight 31 lbs. (14.1 kg)
Architects' & Engineers' Specifications:
The loudspeaker system shall have an operating bandwidth of 74 Hz to 18 kHz.The nominal output level shall be 96.0 dB when measured at a
distance of one meter with an input of one Watt.The nominal impedance shall be 8.0 Ohms.The maximum continuous power handling shall
be 250 Watts, maximum program power of 500 Watts and a peak power input of at least 1,000 Watts, with a minimum amplifier headroom of
3 dB.The nominal radiation geometry shall be 90 degrees in the horizontal plane and 40 degrees in the vertical plane.The outside dimensions
shall be 18.75 inches high by 14.00 inches wide by 13.19 inches deep.The weight shall be 31 pounds.The loudspeaker system shall be a Crest
model LQ 10.
Crest Audio reserves the right to make improvements in manufacturing or design which may affect specifications.
8/21/01
v.1.5
LQ TM 10 Loudspeaker
250 W continuous 500 W program
96.0 dB SPL, (2.83 V input)
120.0 dB SPL continuous 126.0 dB SPL peak
1x 10" woofer, vented long throw heavy-duty woofer
1x 1" exit/34 mm voice coil compression driver HF™ 1 on a CD horn
75 Hz
2,200 Hz
0.00 ms
Horn spatially aligned
Nominal 8.0Ω Minimum - 6.7Ω
® Speakon ® for full-range inputs
18.75" x 14.00" x 13.19" 476 mm x 356 mm x 335 mm
16.69" x 8.00" x 13.19" 424 mm x 203 mm x 335 mm
16-00 Pollitt Dr. Fair Lawn, NJ 07410 USA
TEL: 201.909.8700 FAX: 201.909.8744
*80304799*

Features

• Quadratic Throat Geometry horn
• 500 W program, 1000 W peak
• 10" long throw heavy-duty woofer
• Crest HF TM
• DPS (Dynamic Protection System) tweeter protection
• High power crossover components
• Top and bottom flying point inserts
• Multiple handles and 1-3/8" stand mount
• Available in white
Crest Audio Inc.
www.crestaudio.com
Loudspeaker
Power Handling
Full Range
LQ10
Other LQ series loudspeakers
LQ12
LQ15
1 one and a quarter inch titanium compression driver
LQ 10
TM
S E R I E S
Continuous Peak
250W 1,000W
2,000W
500W
2,000W
500W

Description

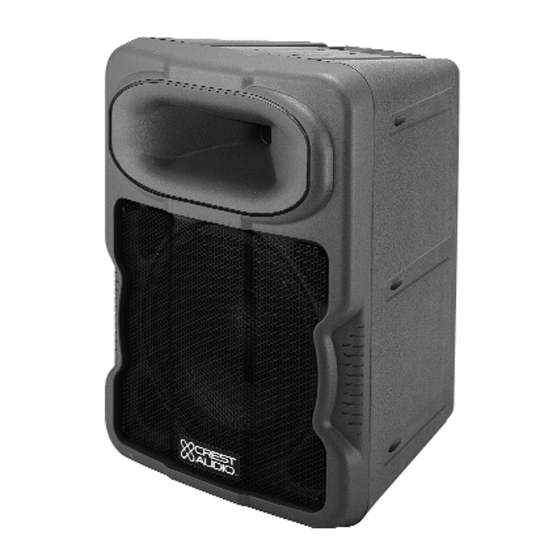

The Crest LQ 10 is an injection-molded two-way speaker system,
engineered in the Crest tradition to provide superior performance
from a compact and durable package. The enclosure is made from
very high impact injection-molded polypropylene in a trapezoidal
shape, with extensive ribbing and bracing. The grille is comprised of
perforated metal protected by a high quality vinyl coating process.
The two-way system is comprised of a 10" long throw heavy-duty
woofer, and a water-resistant treated cone and dust cap for superior
environmental stability. The high frequencies are handled by a Crest
HF TM 1 one and a quarter inch titanium diaphragm compression driv-
er, coupled to a 1" Quadratic Throat Geometry horn, molded integral
to the cabinet. This horn provides outstanding dispersion coupled
with a well-controlled pattern, and a smooth, even response. Utilizing
Quadratic Throat Horn TM technology, under US Patent 6,059,069, the
horn has lower distortion than many popular CD horn geometries.
Input connection to the system is made via two 4-pin Neutrik® jacks
connected in parallel for full-range signal input and daisy chaining
capability
The internal passive crossover features the DPS TM (Dynamic
Protection System) tweeter protection circuit, an advanced topology
crossover with high performance components, to provide high power
handling and reliability.The crossover provides driver roll-off and pro-
tection, as well as driver EQ for the woofer and horn. High-quality,
reliable crossover components include polypropylene capacitors,
and high current inductors and input connectors. The optimal inte-
gration of the crossover with the selected drivers results in a smooth
frequency response from 74 Hz to 18 kHz.
