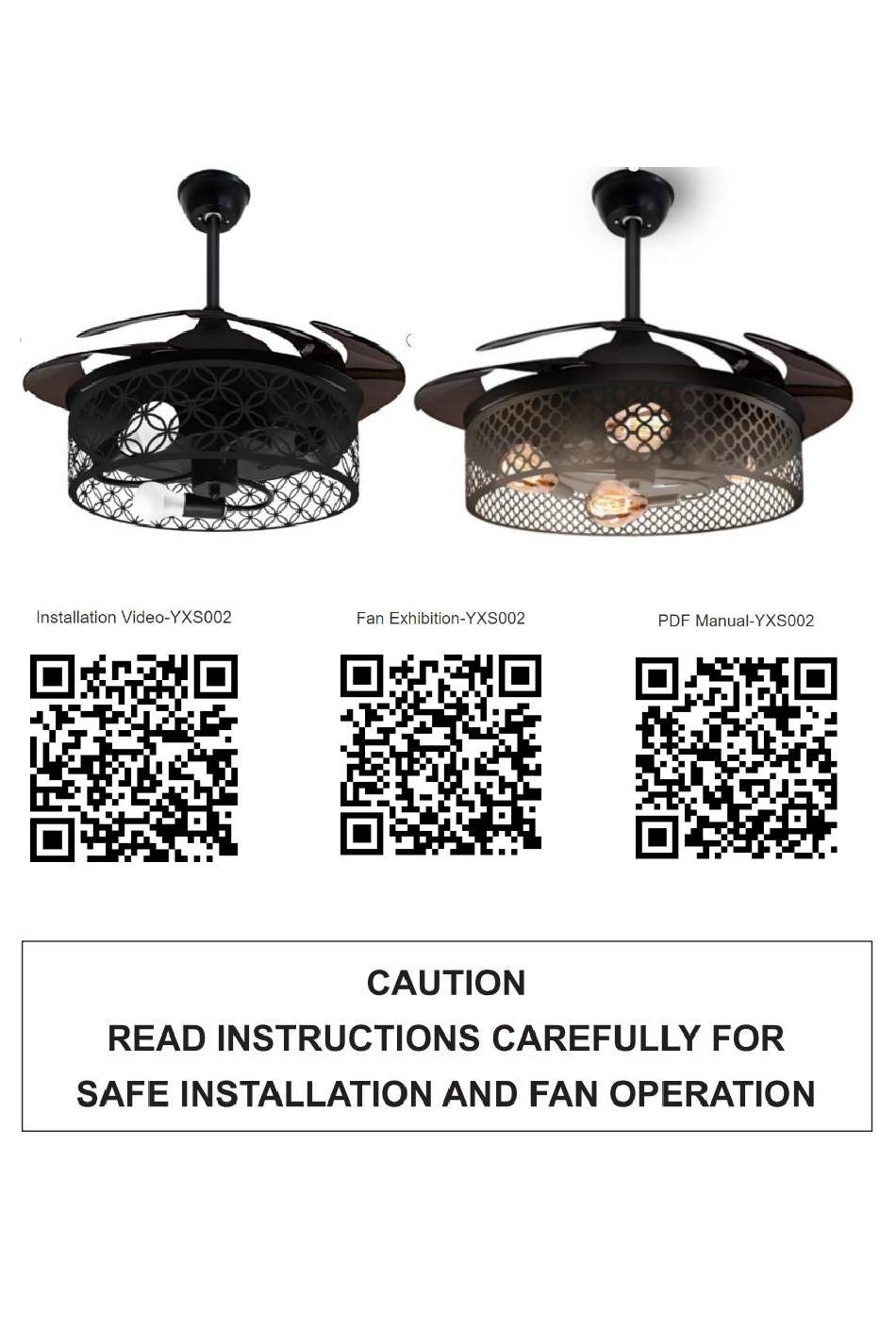

- Page 1 Installation Guide Installation &Troubleshooting Manual 36inch & 42inch Retractable Ceiling Fans Installation Video Fan Exhibition PDF Manual (QR code above are for Amazon Sold Products ONLY) SAFETY RULES...
- Page 2 Installation Guide To reduce the risk of electric shock, turn off the electricity to the fan at the main fuse box or circuit panel before installation. All wiring must be in accordance with the local electrical codes or National Electrical Code. Electrical installation should be performed by a qualified licensed electrician.
- Page 3 Installation Guide Installation preparation Ⅰ. TOOLS REQUIRED Ⅱ. Cut off power supply before installation Ⅲ. Suggest to have someone to help you Ⅳ. All the screws and down rods should be nice and solid when you finish the step Ⅴ. Unpack your fan and check the contents. You should have followings,...
- Page 4 Installation Guide ********************************************************************************* Installation Steps Ⅰ. Lamp shade Installation Ⅱ. Bulb Base Assembly Ⅲ. Down rod installation Ⅳ. Hang the fan to the Ceiling Ⅴ. Connecting wires Ⅵ. Canopy Mount Ⅶ. Remote Control Introduction VIII.Quick answers to common Questions Ⅸ.Trouble Shooting ********************************************************************************* Ⅰ.
- Page 5 Installation Guide (Pic.4) 4. Screw down 4 BLACK screws which is unique because all the other screws are not black color.see Pic.5.Please do not tighten the 1st screw too tight,just finish the tightening of the 2nd and the 3rd screw then go back to the 1st screw to finish the tightening, finally the 4th screw otherwise it would be difficult.Screws would be numbered as Pic.6.
- Page 6 Installation Guide (Pic.6A) (Pic.6B) (Pic.7) (Pic.8)
- Page 7 Installation Guide 2.Get the black plate with two holes as Pic.9. Pull out the wires to make it longer for easy operation (Pic.9A).Pass the down rod and the wires through the holes as Pic.10.Operation as Pic.10A &Pic.10B.Screw down the other screw as Pic.10C.Pay attention the black plate orientation. (Pic.9) (Pic.9A) (Pic.10)
- Page 8 Installation Guide 3. Find the bulb base and pull out the wires in it Pic.11.Then assemble the bulb base to the fan Motor base,connect the wires white to white,blue to blue.Just Insert into each other as Pic.12. Pic.12A for reference. (Pic.11) (Pic.12) (Pic.12A)
- Page 9 Installation Guide 5. If you found the round cap cannot be perfectly tightened as Pic.14, it is because the tail of the Extension rod is too long or too short, thus you have to go back to Pic.8 to adjust the length of the extension rod by rotating the screw up or down.
- Page 10 Installation Guide (Pic.16) (Pic.17) 2. Assemble the canopy Pic.18 and coupling cover Pic.19 below to the down rod as Pic.20.Pay attention the canopy and the cover should be back to back. (Pic.18) (Pic.19) (Pic.20) 3. Unpack and Collect the wires as Pic.21 all and get passed through the down rod as Pic. 22.
- Page 11 Installation Guide (Pic.21) (Pic.22) 4. Insert the down rod to the fan motor base.Look at Pic.23 the two holes are not in the same position but the correct action is two holes should be on the same position after completely insert the down rod.
- Page 12 Installation Guide (Pic.24) (Pic.25) (Pic.26) (Pic.27) 6. Put the R shaped hitch pin into the lock pin in Pic. 28 and tighten the TWO screws in Pic.29.Then pull down the coupling cover Pic.29B. (Pic.28)
- Page 13 Installation Guide (Pic.29) (Pic.29B) ********************************************************************************* Ⅳ. Hang the fan to the Ceiling 1. CUT OFF the power supply for SAFTY!!! 2. Fix the mounting bracket Fig.1 for Concrete Ceiling.Mark the location for the ceiling fan first, then drill two holes in the ceiling to aid in securing mounting bracket with TWO expansion screws provided in Pic.30, and secure the mounting bracket to the building.Please keep the two screws in circles in Pic.31 HALF LOOSE as it is.
- Page 14 Installation Guide (Pic.30) (Pic.31) 3.Hold the Ceiling fan at the point as Pic.32 and carefully lift to the ceiling and sit the hanger ball to the mounting bracket as Pic.33. Rotate the down rod until the notch on the hanger ball engaged the ridge on mounting bracket in Pic.34&Pic.34a Down rod can not be rotated if the step is done properly otherwise the fan will wobbles when it is working.
- Page 15 Installation Guide (Pic.34) (Pic.34a) ********************************************************************************* Ⅴ. Connecting wires It is a bit tricky yet it would not be issue if you assembled based on the illustration below. 1. Insert the black remote receiver to the interspace up on the mounting bracket as Pic.35. Pic.36 shows how the wires going, connecting white to white,blue to blue,red to red.Just buckle each other in the same color.Leave the antenna as it is,no need to connect with any wire.Connect the black live wire and the white neutral wire to the power cord from the ceiling electric box by giving a couple of...
- Page 16 Installation Guide (Pic.36) ********************************************************************************* Ⅵ. Canopy Mount Reorganize the wire Pic.37 and lift the canopy as Pic.38. Attention there is limit room of the canopy so you have to keep all the wires in order to squeeze the wires into the canopy. Spin the canopy until the two half loose canopy screws are locked in the smaller hole then tighten down the TWO screws as Pic.39.
- Page 17 Installation Guide (Pic.37) (Pic.38) (Pic.39) ********************************************************************************* All done! Installation Finished. Mount 4 Edison Bulbs, Duclsaty Ceiling Fans with lights can be used as fan and/or lights as you like...
- Page 18 Installation Guide ********************************************************************************************* Ⅶ. Remote Control Introduction Customer Service we provide Damaged Parts Replacement Missing Parts Replenishment Professional Installation Guide Other Customized Products and Service Feel free to contact Amazon...
- Page 19 Installation Guide ********************************************************************************************* VIII.Quick answers to common Questions. 1. Can the light and fan work separately? Like, can I turn on just the fan without turning on the light and vice versa? Yes,the light and the fan can work separately,controlled by remote control 2.
- Page 20 Installation Guide 1.Put two AAA batteries into the Handheld remote control that you want to use to sync two ceiling fan. 2.Connect the Black remote receiver's black Live line and white Neutral Line with your power cord from the ceiling. 3.Turn on the power supply and wall switch.
- Page 21 Installation Guide 5. Bulb base is loose after assembly The extension rod tail is too long or too short,please check point 4 on page 8. 6. Canopy is too small to accept the remote receiver and the wires The wires are disorderly.Please keep the wires in order and squeeze a bit before you lift the canopy(Pic.37&...
