深圳市永惠时尚有限公司
Shenzhen Yonghui Fashion Co., Ltd
WhatsApp：+86 13750091547
Email：barley@yonghuisolar.com
web：https://www.yonghuisolar.com/
SG600W~1000W Installation Tutorial
PREFACE: This product has been carefully designed and manufactured to meet your
needs and provide superior performance. To ensure that you are able to take full
advantage of all its features, this manual will guide you step-by-step through
all aspects of the product, including installation, operation, maintenance and
troubleshooting

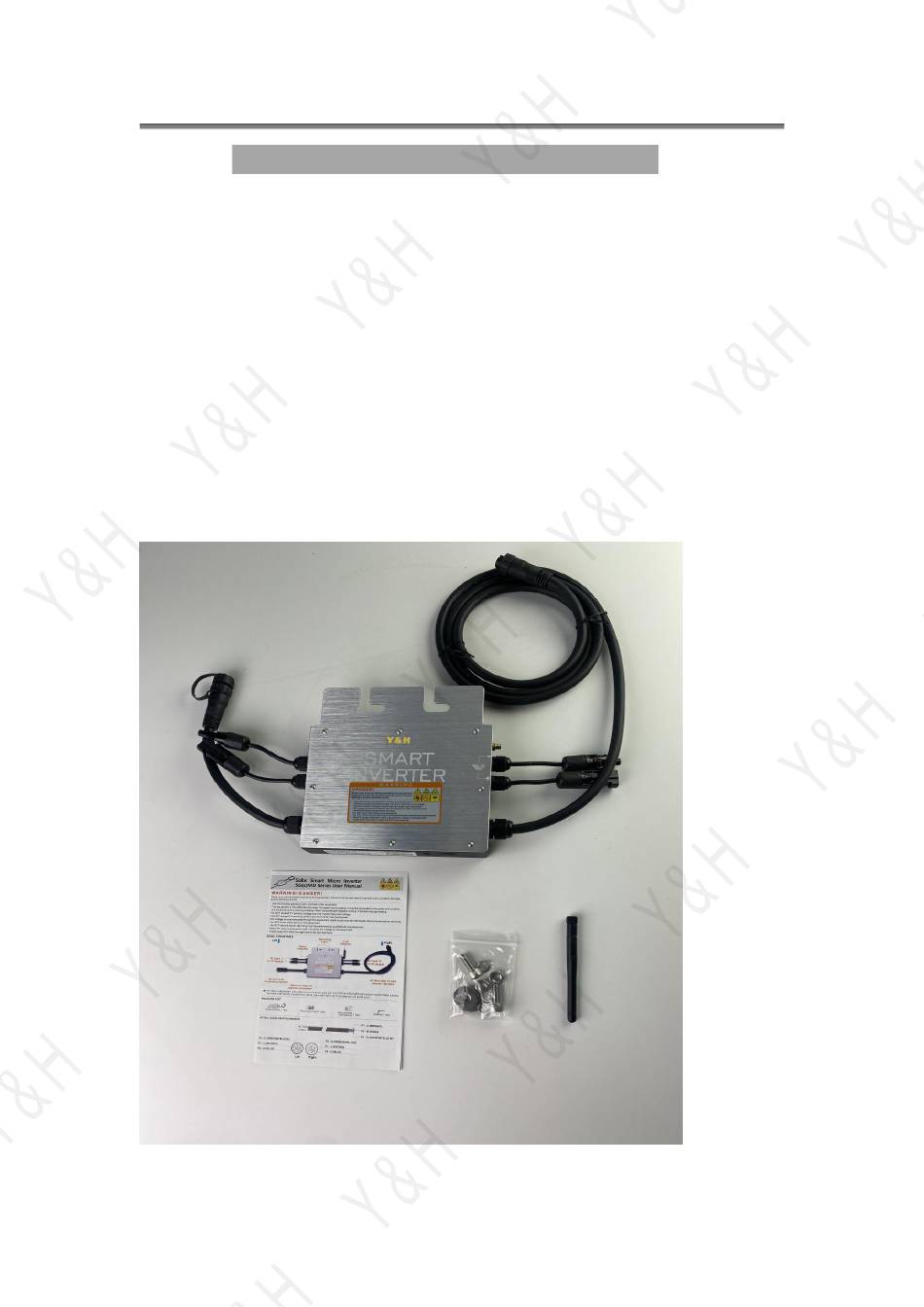

I. Unpacking and checking:
After receiving the package, please check whether the package is complete.
1.Grid-tie inverter *1
2.AC cable *1
3.Instruction manual *1
4.WiFi antenna *1
1 / 7
Advertisement
Related Manuals for Y&H SG-600W
Summary of Contents for Y&H SG-600W
- Page 1 深圳市永惠时尚有限公司 Shenzhen Yonghui Fashion Co., Ltd WhatsApp：+86 13750091547 Email：barley@yonghuisolar.com web：https://www.yonghuisolar.com/ SG600W~1000W Installation Tutorial PREFACE: This product has been carefully designed and manufactured to meet your needs and provide superior performance. To ensure that you are able to take full advantage of all its features, this manual will guide you step-by-step through all aspects of the product, including installation, operation, maintenance and troubleshooting I.
- Page 2 ⑥ Inverter unique code label and basic parameters ⑦ WiFi network status indicator ⑧ WiFi cloud monitoring configuration or reset button ⑨ AC output main cable and connector to connect to the next inverter or grid. III. Use of parameters: SG-600W SG-700W SG-800W SG-1000W models...
- Page 3 深圳市永惠时尚有限公司 Shenzhen Yonghui Fashion Co., Ltd WhatsApp：+86 13750091547 Email：barley@yonghuisolar.com web：https://www.yonghuisolar.com/ IV.Connection for use: AC wiring method ① . The inverter AC output is connected to the grid, you need to buy the plug by yours elf; note that when connecting the cable, you need to follow the L,N,G wiring. How to connect the plug? Cut the cable first, then connect it to the plug according to L,N,G.
- Page 4 深圳市永惠时尚有限公司 Shenzhen Yonghui Fashion Co., Ltd WhatsApp：+86 13750091547 Email：barley@yonghuisolar.com web：https://www.yonghuisolar.com/ AC Wiring Method ② . Contact us to purchase a compatible 3-conductor cable for direct use. V. SG grid-tie inverters can only be connected to solar panels. 4 / 7...
- Page 5 深圳市永惠时尚有限公司 Shenzhen Yonghui Fashion Co., Ltd WhatsApp：+86 13750091547 Email：barley@yonghuisolar.com web：https://www.yonghuisolar.com/ 5-1 Solar panel connection: Step 1: Connect the solar panel, must be connected firmly; Note: Some customers extend the panel cable, easy to reverse positive and negative poles ① ② Step 2: The AC is connected to the home outlet and the outlet switch must be turned on to ensure that the home grid is a properly energized state;...
- Page 6 深圳市永惠时尚有限公司 Shenzhen Yonghui Fashion Co., Ltd WhatsApp：+86 13750091547 Email：barley@yonghuisolar.com web：https://www.yonghuisolar.com/ Cautions: 1. It can not be used when there is a power outage! 2. The power of the panel must not exceed the power of the inverter, and the voltage of the panel must be within the voltage range specified by the inverter VI.
-
Page 7: Installation Environment
深圳市永惠时尚有限公司 Shenzhen Yonghui Fashion Co., Ltd WhatsApp：+86 13750091547 Email：barley@yonghuisolar.com web：https://www.yonghuisolar.com/ 4. After identifying the problem, we will provide different solutions according to the degree of damage ① Send parts and replacement tutorials to you ② Send the motherboard ③ Return or other solutions 5、Installation environment It is recommended to install the inverter in a ventilated, dry and cool place.
