User Description

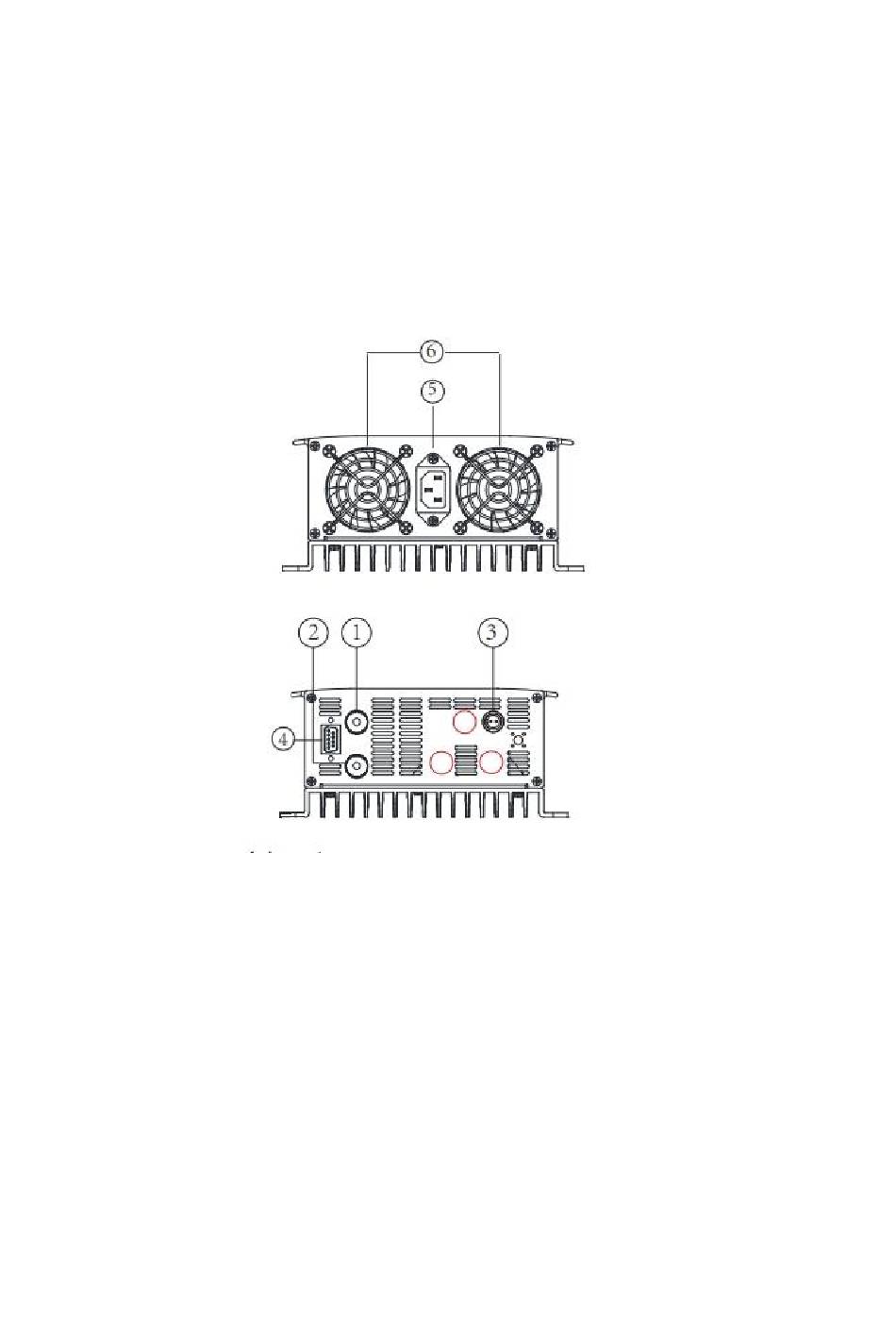

Product port diagram:
1. DC input positive terminal, which will be connected to the positive electrode line of the solar
energy and the cable connecting the positive electrode of the solar panel.
2. DC input negative terminal, which will be connected to the negative wire of the solar cable
connected to the negative electrode of the solar panel.
3. To limit the sensor connection, please refer to the user manual for the limit function.
4. Wifi plug connection, please check the user manual of the Wifi Plug.
5. AC socket, which will connect the inverter to the public power grid via AC cable.
6. Cooling fan.
This inverter can be connected to solar panels or batteries separately.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUN-2000GTIL2-H and is the answer not in the manual?

Questions and answers

Summary of Contents for Y&H SUN-2000GTIL2-H

  • Page 1 User Description Product port diagram: 1. DC input positive terminal, which will be connected to the positive electrode line of the solar energy and the cable connecting the positive electrode of the solar panel. 2. DC input negative terminal, which will be connected to the negative wire of the solar cable connected to the negative electrode of the solar panel.
  • Page 2 1. Panel connection: The first step is to connect the solar panel, pay attention to the positive and negative electrodes of the panel to be correctly connected to the positive and negative electrodes of the machine, and then connect the home power grid in the second step. Solar panel voltage selection: SUN-1000GTIL2-M: The 22-65V inverter will start at 26V, and the inverter can work at 22V-60V after starting.
  • Page 3 Note: When using a battery to power the inverter, use a circuit breaker. Select the correct type of solar grid inverter. Because there may be several ways to connect solar panels to sunlight For grid-connected inverters, different connection methods may require different models Inverter.
  • Page 4 Comparing the connection methods in Figures 4 and 5, we can see that Method 2 is a good method. Method 1 is chosen because the DC cable is thicker, so the price is more expensive, and three pairs of parallel connectors plus three pairs of MC4 connectors are used. However, when using Method 2, the DC cable is very thin, only a pair of parallel connectors is required, and a pair of MC4 connectors should be used for connection.
