GUOZHI MIG-160 Operating Manual

Mig/lift tig/stick three in one welding machine
Hide thumbs

Advertisement

Table of Contents

Operating Manual
MIG/TIG/
Three In One Welding Machine
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIG-160 and is the answer not in the manual?

Questions and answers

Related Manuals for GUOZHI MIG-160

Summary of Contents for GUOZHI MIG-160

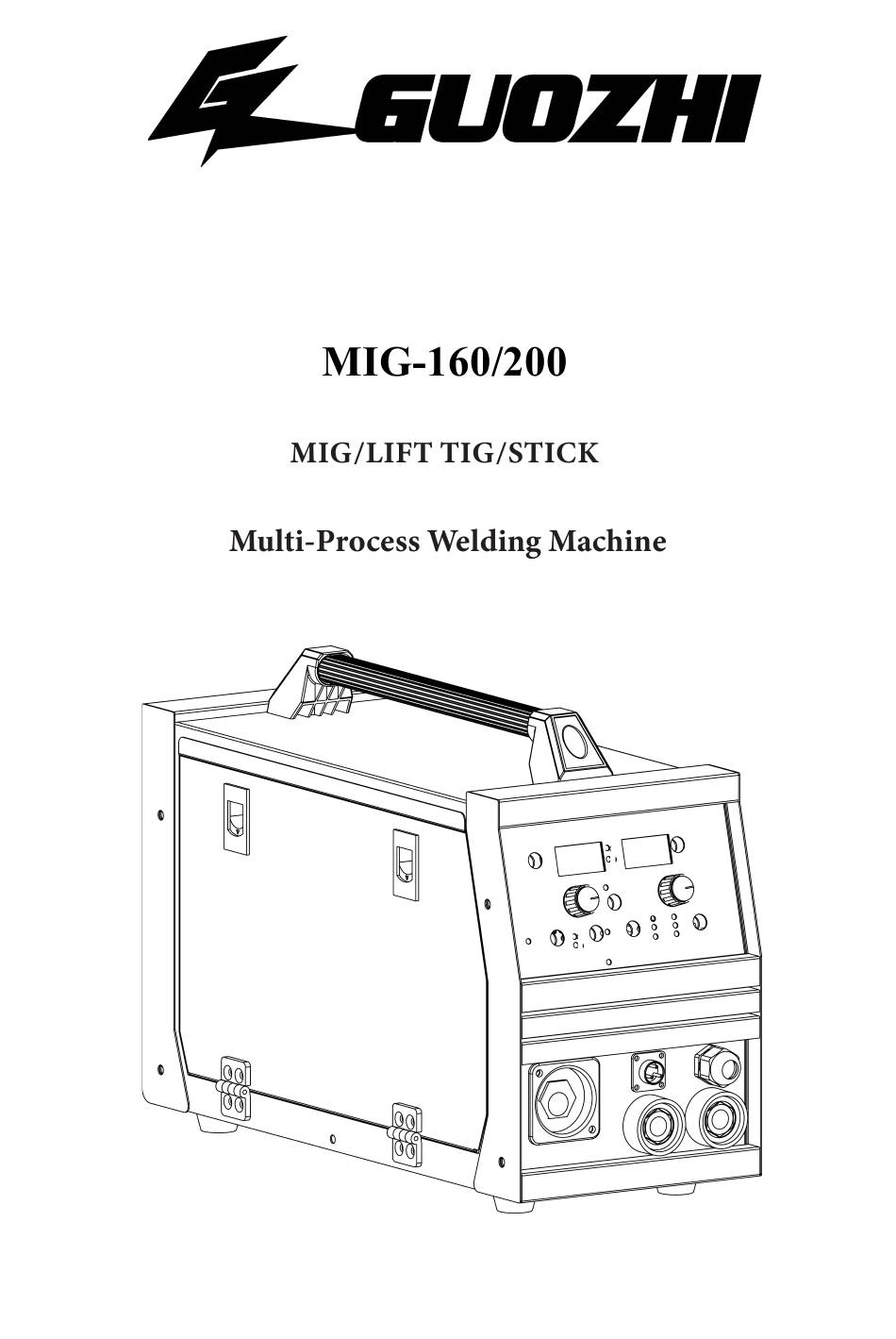

  • Page 1 Operating Manual MIG/TIG/ Three In One Welding Machine...

  • Page 9: Noise Can Damage Hearing

    NOISE can damage hearing. Excessive noise from some processes or equipment can damage hearing. Wear approved ear protection if noise level is high. CYLINDERS can explode if damaged. Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully.

  • Page 20: Section 2: Introduction And Specifications

    SECTION 2: INTRODUCTION AND SPECIFICATIONS 2.1 Equipment Identification The unit’s identification number (specification or part number), model, and serial number usually appear on a nameplate attached to the machine. Equipment which does not have a nameplate attached to the machine is identified only by the specification or part number printed on the shipping container.

  • Page 21: Specifications

    2.3 Specifications INCH *13. * INCH...
  • Page 22 INCH *13. * INCH...

  • Page 23: Duty Cycle

    The recommended time delay fuse or circuit breaker size is 35 amp. An individual branch circuit capable of carrying 35 amp and protected by fuses or circuit breaker is recommended for this application. Fuse size is based on not more than 200 percent of the rated input amperage of the welding power source (Based on Article 630, National Electrical Code).

  • Page 29: Section 4: Operation

    SECTION 4: OPERATION Conventional operating procedures apply when using the Welding Power Source, i.e. connect work lead directly to work piece and electrode lead is used to hold electrode. Wide safety margins provided by the design ensure that the Welding Power Source will withstand short-term overload without adverse effects.
  • Page 30 、 、 、 、 、 、 、 、 、 、 、 、 、 、 4.1.1 For Flux-cored Wire 2. Choose the right wire feed roll correspondent to wire size.
  • Page 31 The same specifications 3. Set-up for wire feed roll. There are two sizes on the wire feed roll, install the right size towards to the inside. 4. Install MIG gun. Loosen the fixing screw. Insert the MIG gun into the interface and tighten the screw. Insert the aviation socket into the interface and tighten it.
  • Page 32 Loosen the screw Insert MIG gun into interface Insert aviation socket into interface Tighten the screw 5. Install Wire Roll. For 2 LBS For 10 LBS...
  • Page 33 6. Wire feeder pressure arm position reference. When do fast wire feeding, pressure arm is recommended to position 1. 7. Plug in, turn on the power switch. Using AC 11 V power source, please connect to transfer plug.
  • Page 34 8. Select to MIG function. 9. Feed wire. Fast wire feeding button. Straighten and level the MIG gun, press the fast wire feeding button to quickly pass the wire through the gun until is extended 9-13mm. (You could also press the MIG gun switch to pass the wire through the gun.) 10.
  • Page 35 Relationship between wire feed speed and welding current diagram. For same size wire, the bigger the current, the faster the wire feed speed. For same current, the smaller the wire size, the faster the wire feed speed. Refer to data parameter, set suitable wire feed speed and output voltage to have the best welding result.
  • Page 36 12. Data reference between material thickness and welding current. 4.1.2 For Solid Wire 2. Choose the right wire feed roll correspondent to wire size.
  • Page 38 to the “ON” position. The power LED. light should illuminate. Set the“Adjustment Switched”to the desired voltage. You are now ready to begin MIG Welding. Plug in, turn on the power switch. Select to MIG. Set the output voltage and wire feed speed. Feed wire.
  • Page 39 Welding Connect the electrode holder and earth clamp. Plug in, turn on the power switch. Select to Adjust the welding current according to the material and thickness of workpiece. Connect the earth clamp to workpiece. Choose the right electrode and start welding. “...
  • Page 40 Turn on VRD function, when the machine is not welding, the output voltage is limited to V (human body safety voltage) to prevent users from accidentally suffering from electric shock. But it has a slight effect on the arcing effect. 4.3 TIG Welding 1.
  • Page 41 Open the argon cylinder valve and adjust the shielding gas flow appropriately. Open the flow switch on the TIG torch and argon is flowing from the nozzle. Choose the right current, make sure it is suitable for workpiece thickness. Start welding. “...
