Guide to Install ViaBecs 7
CONTENT:

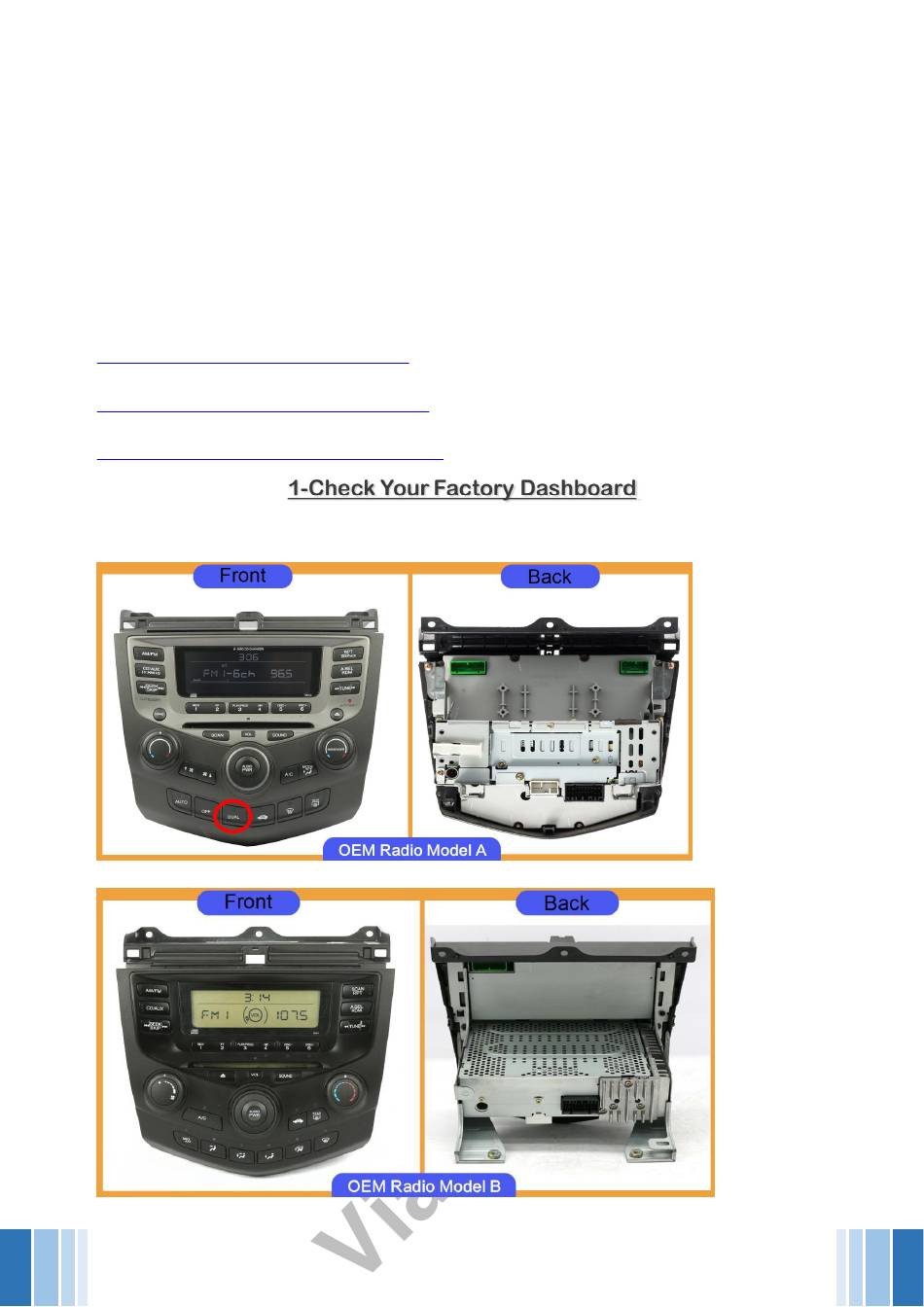

(1) Check Your Factory Dashboard
(2) Connect XC043 Harness
(3) Canbus option setting
(4) YT5760B Wiring Diagram
(5) FQA
#1 Video：remove the factory car radio
https://www.youtube.com/watch?v=iJEQoOsNBaY
#2 Video：Set up canbus option
https://www.youtube.com/watch?v=WoW2zwVXTGw
#3 Video：Use wireless or wired carplay
https://www.youtube.com/watch?v=FYrhryk3Xfc&t=45s
Note: this unit doesn't support the diesel version car (I-CDTl)
1.
OEM Radio Model A: 2003-2007 Accord Dual Zone
2.
OEM Radio Model B: 2003-2007 Accord Single Zone
th
Gen Accord Radio
Page 1 of 7
Advertisement
Related Manuals for ViaBecs B08R1W1C3F
Summary of Contents for ViaBecs B08R1W1C3F
- Page 1 Guide to Install ViaBecs 7 Gen Accord Radio CONTENT: (1) Check Your Factory Dashboard (2) Connect XC043 Harness (3) Canbus option setting (4) YT5760B Wiring Diagram (5) FQA #1 Video：remove the factory car radio https://www.youtube.com/watch?v=iJEQoOsNBaY #2 Video：Set up canbus option https://www.youtube.com/watch?v=WoW2zwVXTGw...
- Page 2 3. Proper Harness: XC043 Harness without Canbus box The XC043 harness is correct for Model A and Model B 1. The A/C temperature can’t display on the screen, please check whether it choose correct protocol option for your car. Step 1: Please open Car Setting -- -- Factory Setting -- password is 8888 -- Protocol setting -- "ChangYuanTong"...
- Page 3 Step 2: After clicking the "Save" button, the setting will be successful. Step 3: Reboot the head unit, And then test whether the A/C can work Page 3 of 7...
-
Page 4: Device Ports
1. Device Ports #4 Video: Connect an aftermarket Backup Camera https://www.youtube.com/watch?v=NBKY6S4d5QY Page 4 of 7... - Page 5 Page 5 of 7...
- Page 6 Q1: how to turn off the on-screen A/C controls floating key from being displayed? 1)Please open Car Settings -- Factory Setting -- password is 8888 -- Protocol setting -- Protocol parameter settings Please close the option of Air conditioner floating key switch (Restart effective) Then reboot the head unit after you close the option.
- Page 7 Q2: Touchscreen Calibration and Touch Button learning #5 Video: https://www.youtube.com/watch?v=lhXjg2ksGT8 Q3: How To Fix Not Working Panel Buttons on YT5760B Radio #6 Video: https://www.youtube.com/watch?v=4zxSGYz5VFM Q4: How to activate Zlink for Apple car play & Android Auto? Problem: Input the auth_key S1.
