How to connect the CAN019-R or CAN020-R for your Honda CRV
CONTENT:
(1)
Canbus Box connection
(2)
The connection of factory backup camera
How to solve the no sound problem
(3)
(4)
YT5760B Wiring Diagram

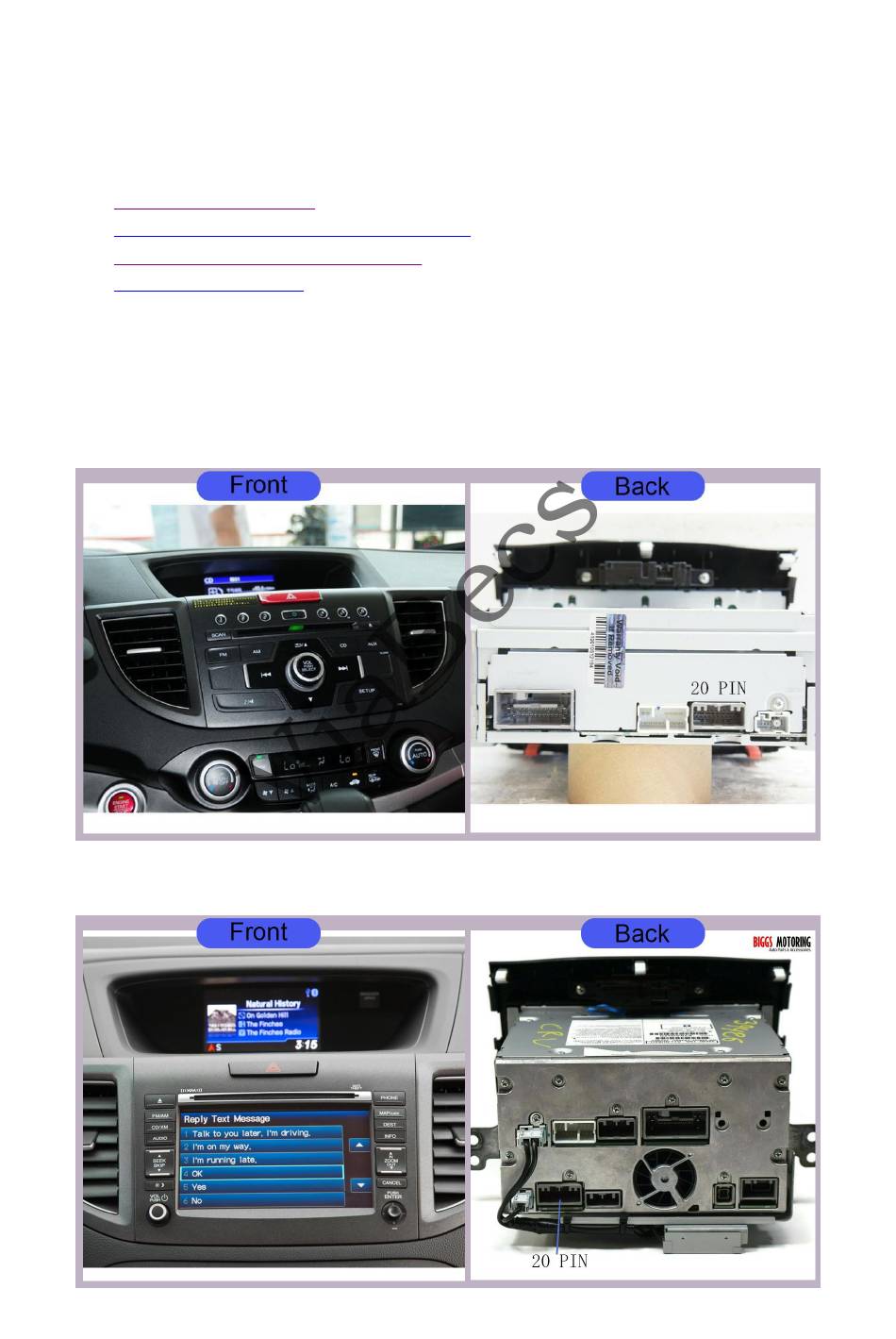

Check Your Factory Radio
OEM Radio Model A: Honda CRV 2012-2015 CRV 2.0L
This factory radio is wihout screen.
OEM Radio Model B: Honda CRV 2.4L 2012-2014,It has 20 PIN Factory Plug.
It is similar with Model C. But the button of OEM radio is different.
Advertisement
Summary of Contents for ViaBecs CAN019-R
- Page 1 How to connect the CAN019-R or CAN020-R for your Honda CRV CONTENT: Canbus Box connection The connection of factory backup camera How to solve the no sound problem YT5760B Wiring Diagram Check Your Factory Radio OEM Radio Model A: Honda CRV 2012-2015 CRV 2.0L This factory radio is wihout screen.
- Page 2 The CAN019-R harness comes with a 20PIN connector. The CAN019-R harness can support Model A and Model B. OEM Radio type C: Honda CRV 2012-2014 2.4L The CRV radio is with large screen.It has 24 PIN Factory Plug.
- Page 3 Important Note: Please check if the door opening information or the air conditioner information is working properly. If so, it means that the harness is not broken. 1) Please connect CAN019-R or CAN020-R harness with the Canbus box first. 2) Plug the 8PIN white connector into No. C CANBUS Port.
- Page 4 The Connection photo of the Canbus box as a reference 2. Please confirm which harness fits for your car. Our radio comes with CAN019-R and CAN020-R harness and one black canbus box. If you receive the wrong harness, please contact ViaBecs Tech Support.
- Page 5 Raise -- Honda If your CRV 2012-2015 is 2.0L, please choose the option of “Honda 2012 CRV / 2015 CRV 2.0L/Civic” If your CRV 2012-2015 is 2.4L, please choose the option of “Honda 2015 CRV 2.4L (No right)” 1.4 It is 4PIN USB adapter. Please connect it with your factory USB connector.
- Page 6 The connection of factory backup camera S1: Connect the backup camera line with CAM VIN & Wifi cable. S2: And then you can test whether the factory backup camera displays image automatically when your car is reversing. S3: If the camera image displays black, you need to change the setting of the camera format.
- Page 7 Problem: The car radio has no sound after you connected the CAN019 or CAN020 harness. Important Note: You can contact ViaBecs to get an OBD2 ELM327 Bluetooth or an HD backup camera as a gift If you are willing to wire AMP CONT line.
- Page 9 S3: Please turn on the option of Car Amplifier after you connect blue AMP CONT line. Then the head unit will has the sound. Note: When the color of the car amplifier changes to light blue, it means it has been successfully turned on. It will keep the open state after you turn on it.
- Page 10 S4: You can connect the G1 GND line with the car's iron part through another line. it will be stable and reduce interference. Please close to the seatbelt bolt grind away the paint.
- Page 11 YT5760B Wiring Diagram Device Ports...
- Page 12 Wire diagram:...
- Page 13 How to connect aftermarket backup camera. 3.3 Set Camera Format 1) For the reverse camera, you can change the setting of the camera format. Please confirm the resolution of your camera first. 1) If your camera is not HD, please choose normal -- SD -- NTSC/PAL. 2) if your camera is HD version, please choose the normal -- HD -- AHD 720P/25fps, or AHD 1080P/25fps。...
