Crest Audio FCV220 Specifications

POWER AMPLIFIERS
Product Description
Designed with the sound contractor in mind, Crest Audio's
Models FCV220 and FCV440 are high-quality amplifiers intend-
ed for fixed installations using constant-voltage distributed lines.
These cost-effective two rack-space amplifiers make excellent
sonic quality and long-term reliability available to even the most
price- conscious installations.
The FCV Series amplifiers use the same high-grade components
employed in the Crest Audio Professional Series amplifiers and
are fan-cooled. An internal mid-chassis fan draws cooling air
from the front of the amplifier and exhausts it out the sides. High
quality, fully-isolated output transformers are used, providing
maximum amplifier protection and freedom from output-related
ground loops. Either transformer can be bypassed for driving a
speaker directly.
Power
Specifications
High Impedance †
Stereo
4Ω Stereo
FCV220 / FCV440
Crest Audio FCV Series Amplifiers are
®
fully compatible with the NexSys
Computer-Controlled Audio system.
Model FCV220
60 Hz - 18 kHz*
<0.1% THD
110 Watts
110 Watts
The FCV Series amplifiers are fully compatible in design with
other Crest Audio amplifiers, Octal Socket Accessories and the
NexSys computer-controlled audio system.
®
The FCV chassis is made of heavy 12-gauge steel for rigidity.
Attenuator controls, barrier strip outputs, Octal Sockets, and
actively balanced inputs are located on the rear panel.

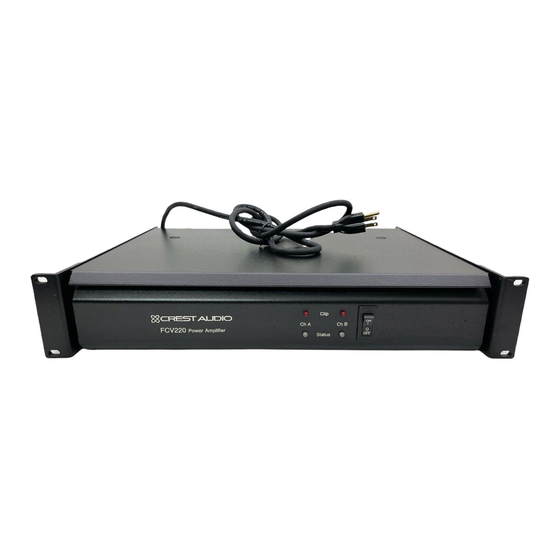

Front panel features include Clip and Status LED indicators and
a combined circuit breaker/AC power switch.
As always, Crest Audio performance and reliability come stan-
dard.
1 kHz, 60 Hz - 18 kHz*
<0.05% THD
120 Watts 220 Watts
120 Watts 220 Watts
* +0, -3dB † Constant voltage line; depends on amplifier configuration
Model FCV440
<0.1% THD <0.05% THD
240 Watts
240 Watts
1 kHz,
