Whitmor 6779-3044 Manual

6779-3044 Double Rod Standing Closet
A1 A2
10 ea 3 ea
End connector End connector
D
4 ea
Long Vertical Pole
F
2 ea
Hanging rod

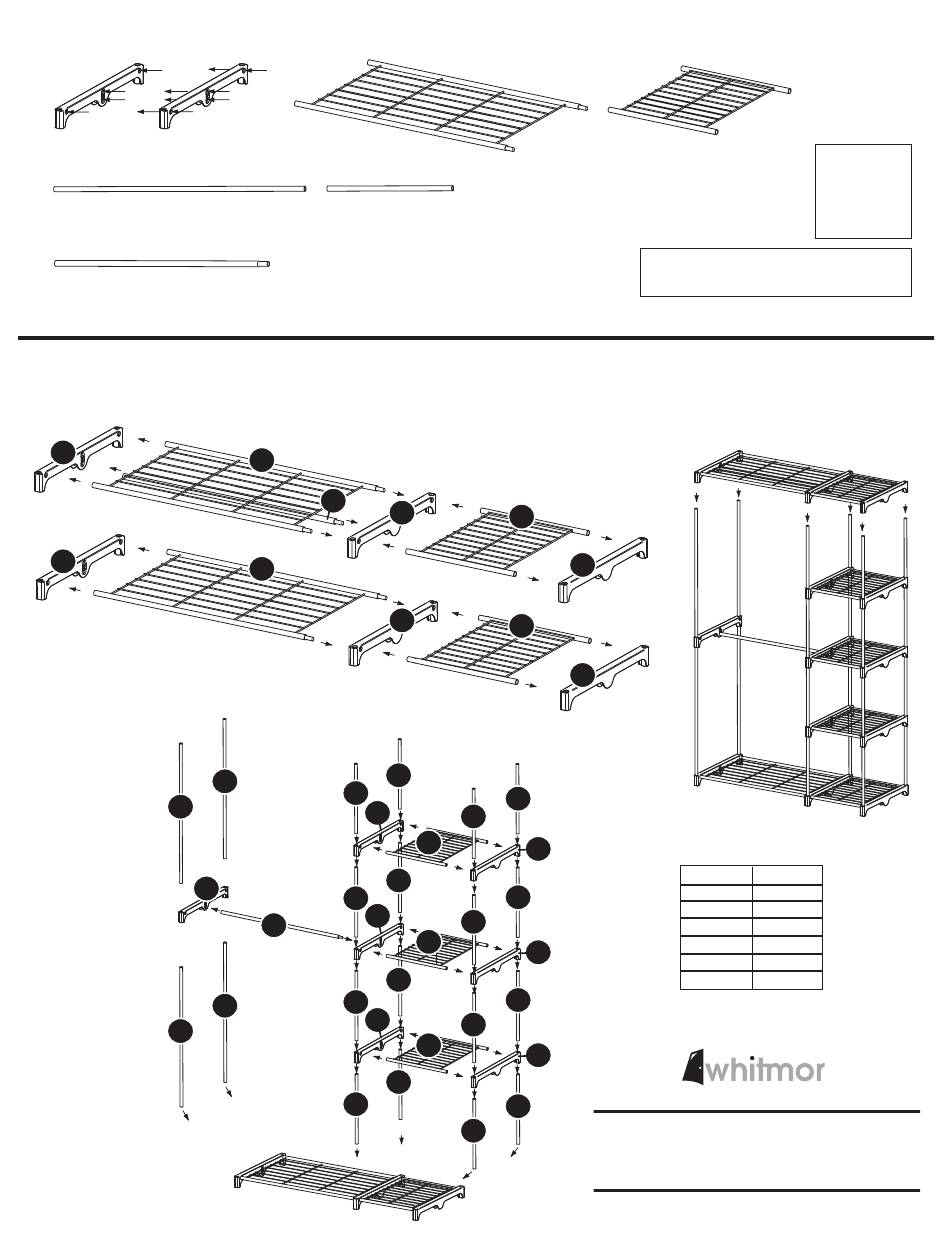

STEP 1.
Start by assembling the top and bottom sections. Insert parts (B) and (C)
into parts (A1) and (A2) as shown below. Insert one hanging rod (F) into top section.
Top Section:
A1
Bottom Section:
A1
Note:
All metal parts
must be inserted firmly and
completely into the plastic parts.
STEP 2.
Building
up from the
assembled bottom
section insert poles
D
(D) and (E) and
end connectors
(A1) and (A2) as
the diagram shows.
Place other A1
hanging rod (F)
between middle
end connectors
(A1) and (A2).
D
B
2 ea
Long Shelf
E
16 ea
Short Vertical Pole
B
F
A2
B
A2
E
D
E
A1
E
E
A2
F
E
E
D
A1
E
E
©
Note:
Short shelf (C) should
be inserted into the stickered
side of (A2).
C
A1
C
A1
E
E
C
A1
E
E
C
A1
E
E
C
A1
E
E
2011, Whitmor
C
5 ea
Short Shelf
This product's intended use is for
hanging garments and storage.
Tools Needed: No tools required.
STEP 3.
Place the assembled top
section onto the top of the vertical
poles. Assembly is now complete.
Enjoy your new Whitmor Double Rod
Closet.
Part Reference
A1 F6864
A2 F6500
B F6867
C F6868
D F6869
E F6870
F F7394
MADE IN CHINA
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
NEED HELP? For help with assembly, or if you are missing a part,
please call Whitmor's Customer Service Department, 1-888-944-8667
between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday
through Friday. Or email: customer_service@whitmor.com
Rev#1 10.24.11
