Whitmor 6070-3366 Manual

6070-3366 Supreme Double Rod Garment Rack
A B
26 ea 2 ea
Sleeve Wheel
D
4 ea
NOTE: part D has a plastic cap on one end
Top pole
E
4 ea
NOTE: part E has a small, threaded hole on one end
Bottom pole
F
4 ea
Threaded connector (may already be connected to D or E)

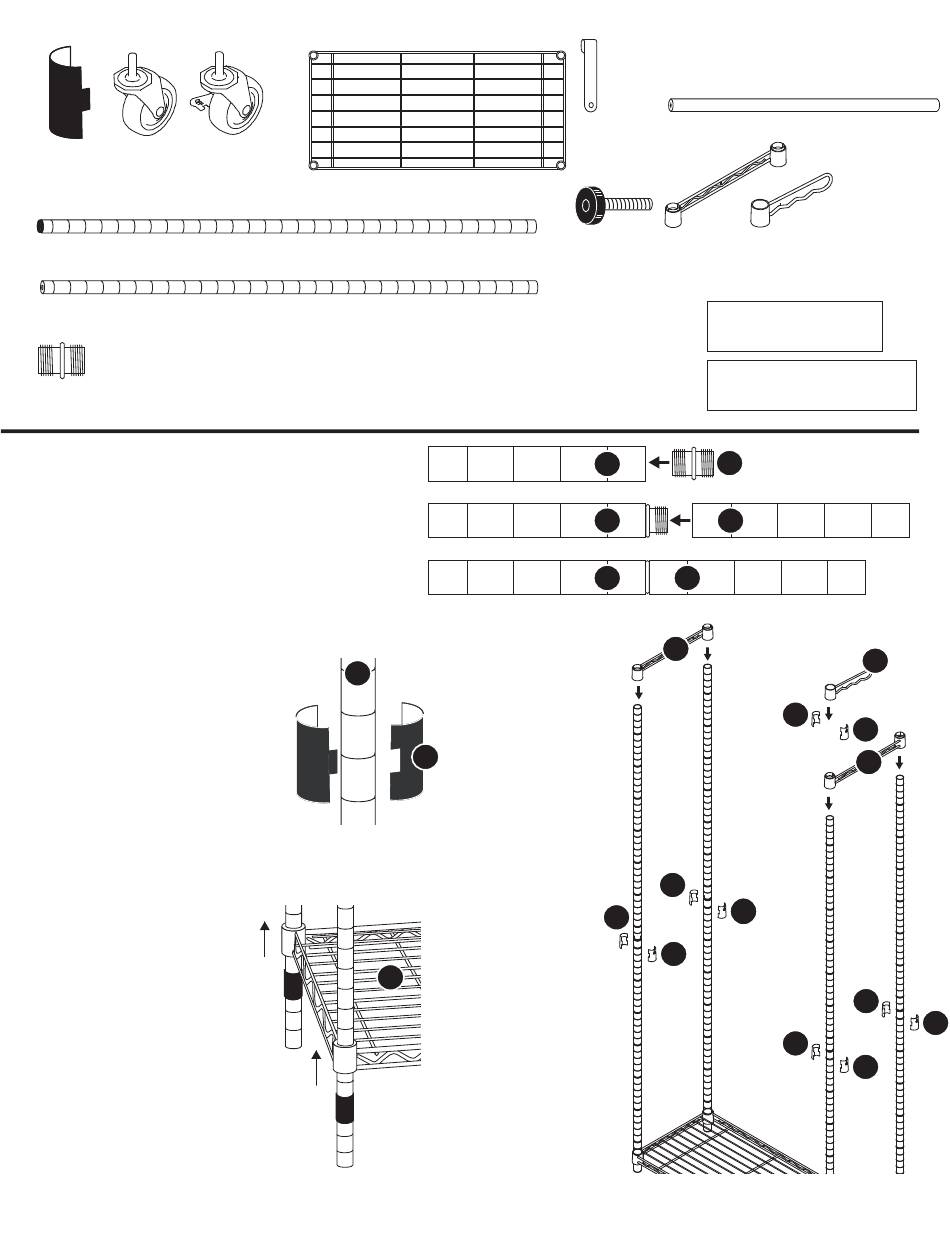

STEP 1.
Connect part (D) and part (E) by
screwing part (F) into the open end of one of the
black poles (there is a small ridge in the middle
of part (F) at the center). Screw the other black
pole into the threaded connector (F) until it
meets the other black pole. Repeat for remaining
poles.
STEP 2.
Start at the bottom (the
end with the small threaded hole,
see diagram above), snap two
plastic sleeves (A) onto poles at
desired intervals. The sleeves are
marked with a directional arrow to
show proper placement. Use
grooves on poles to ensure even
shelf placement among the four
poles. NOTE: Place only enough
sleeves to assemble bottom shelf.
This step will be repeated after
bottom shelf is in place.
STEP 3.
Slide black
poles with plastic cap on
top through shelf corners
until shelf (G) rests firmly
on sleeves. Push or
gently tap the shelf down
at corners to level shelf.
C
2 ea
Locking wheel
G
2 ea
Shelf
D
G
H
Hanging rod
bracket
J
4 ea
Screw
Tools Needed: No additional tools
required.
STEP 4.
Snap eight
more sleeves (A) on
the poles at the
desired level for
placement of the
middle hanging bar,
A
preferably about the
center. Make sure
each set of sleeves
are evenly placed
among the four poles.
Slide middle support
(K) down the poles
until they fit snug on
the sleeves. Next,
snap two additional
sleeves (A) onto the
preferred pole for the
hanging valet (L).
Slide the hanging
valet (L) down the
pole until it rests
firmly on the sleeves.
2011 Whitmor, Inc.
©
I
4 ea 2 ea
Hanging rod
K L
2 ea 1 ea
Middle Valet
support
Assembly Time:
Less than 30 minutes.
This product's intended use
is for storing clothes.
F
D
D E
D E
K
A
A
A
A
L
A
A
K
A
A
A
A
Page 1
