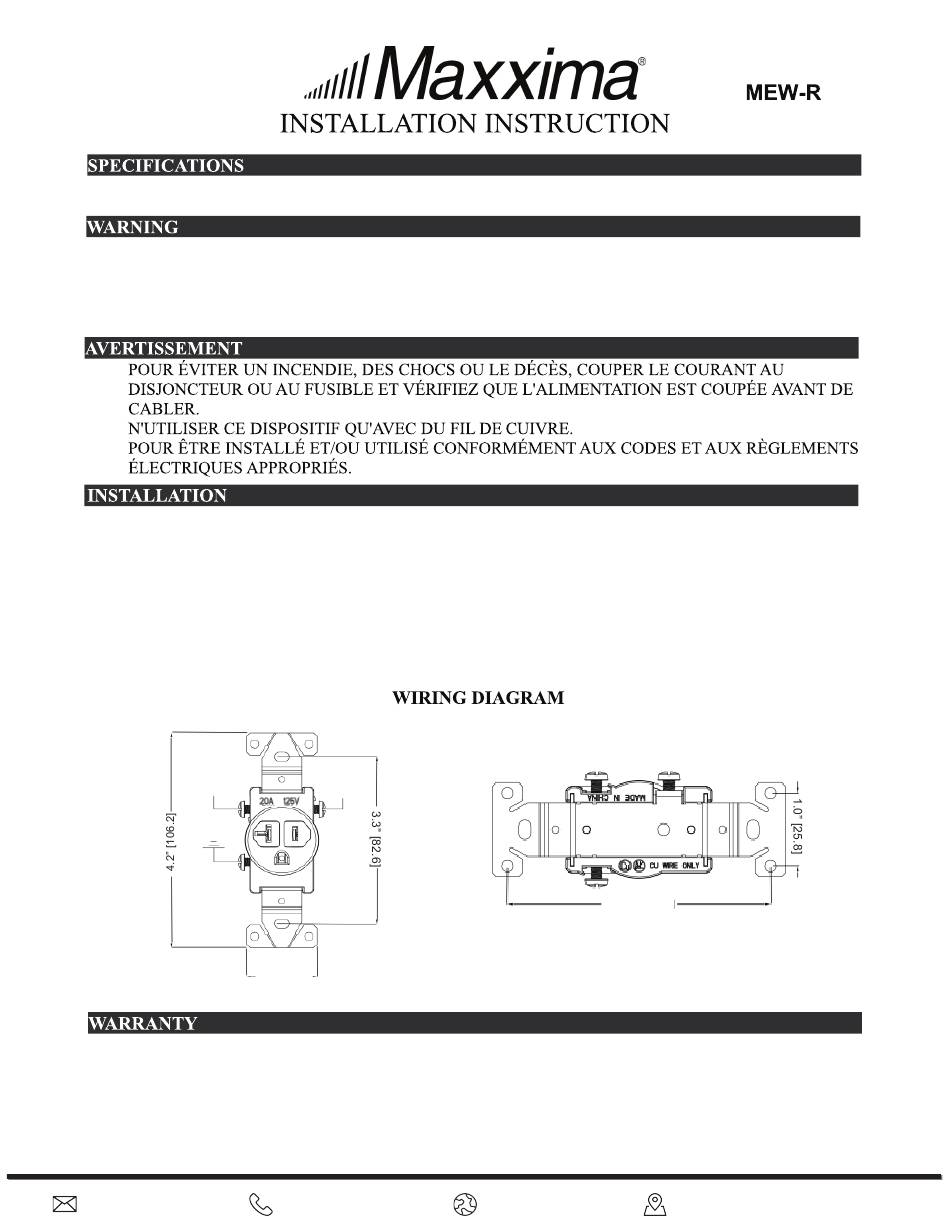

Maxxima MEW-R201-02 Installation Instructions

Single Receptacle , Side Wire
RATING: 125VAC , 20A , 60Hz
1. TO AVOID RISK OF FIRE. ELECTRICAL SHOCK AND DEATH, SWITCH OFF POWER AT CIRCUIT
BREAKER OR FUSE BOX AND ENSURE THAT POWER IS OFF BEFORE STARTING ANY WORK.
2. USE ONLY COPPER WIRE WITH THE DEVICE.
3. INSTALL AND USE IN ACCORANCE WITH ALL APPRORIATE ELECTRICAL SAFETY CODES AND
REGULATIONS
1.
2.
3.
1. Install in accordance with all electrical codes and standards.
2. Turn off the power by switching the breaker or fuse off.
3. If replacing a device, uninstall that device. Make sure wires are stripped back and exposing 1/2" bare copper.
4. Connect the BLACK wire to the brass screws. Connect the WHITE wire to the silver screws.
Then connect the GREEN wire to the green screw on the device.
5. Screw the terminals on the device down until wires are secured.
6. Mount the device into the junction box using the screws provided.
7. Attach the wall plate.
8. Restore power to the circuit by switching the breaker or fuse on.
Brass
Colored
Screw
Green Hex
Screw
1.3" [33.5]
Maxxima extends a 1 year limited warranty to the original purchase that the products listed are free from
defects in material and/or workmanship only. Maxxima will replace any warrantied product to the original
consumer/purchaser if the product fails because of defects due to wormanship and/or materials within the
limited warranty period.Limited warranty is not transferable and applies to the original installation of the
Maxxima product. This offer does not constitute in any way a product guarantee and Maxxima does not
hereby assume any obligation whatsover beyond sending a free replacement product.
n i o f @ m a x x m i a y t s . e l o c m
Silver
Colored
Screw
"
866-MAXXIMA (629-9462)
3.75" [95.2]
www.maxximastyle.com
201-02
"
125 Cabot Court Hauppauge, NY 11788
