CLASS 3 TRAILER HITCH
R3-0523
Toyota Rav4
HITCH RATING: 4,000 LBS WEIGHT CARRYING, 400 LBS TONGUE WEIGHT / 4,000 LBS WEIGHT DISTRIBUTING, 400 LBS TONGUE WEIGHT.
WARNING: CONSULT VEHICLE OWNERS MANUAL FOR TOWING RECOMMENDATIONS. DO NOT EXCEED VEHICLE'S RECOMMENDED
TOWING CAPACITY. THIS PRODUCT IS DESIGNED FOR TRAILER TOWING ONLY AND SHOULD NOT BE USED FOR ANY OTHER PURPOSE.
NOTE: INSTALL PARTS LOOSELY UNTIL ALL ATTACHMENTS HAVE BEEN MADE TO VEHICLE
1.
Remove the stickers covering the mounting holes on the outside of frame rails.
2.
If present, remove the tow hook from the bottom of the passenger side frame rail.
Return tow hook and hardware to the vehicle owner.
3.
Raise the hitch into position and loosely attach with the (4) M12 hex bolts and
conical washers provided.
4.
Torque all fasteners to 68 ft-lbs.
Hardware Kit:
Remove Tow Hook
If Present
Thank you for purchasing a Rigid Hitch
(4) M12 x 1.25 x 35mm Hex Bolts
GIVE THIS INSTRUCTION SHEET TO VEHICLE OWNER
THIS PRODUCT COMPLIES WITH SAFETY
SPECIFICATIONS AND REQUIREMENTS
FOR SAE AND VESC REGULATION V-5
FOR CONNECTING DEVICES AND
TOWING SYSTEMS. DO NOT MODIFY
THIS PRODUCT. INSTALL ONLY ON
SPECIFIED VEHICLES IN GOOD
CONDITION.
TOOLS REQUIRED:
DRILLS: None
WRENCHES: Torque Wrench, Ratchet
SOCKETS: 17mm, 19mm, Socket Extension

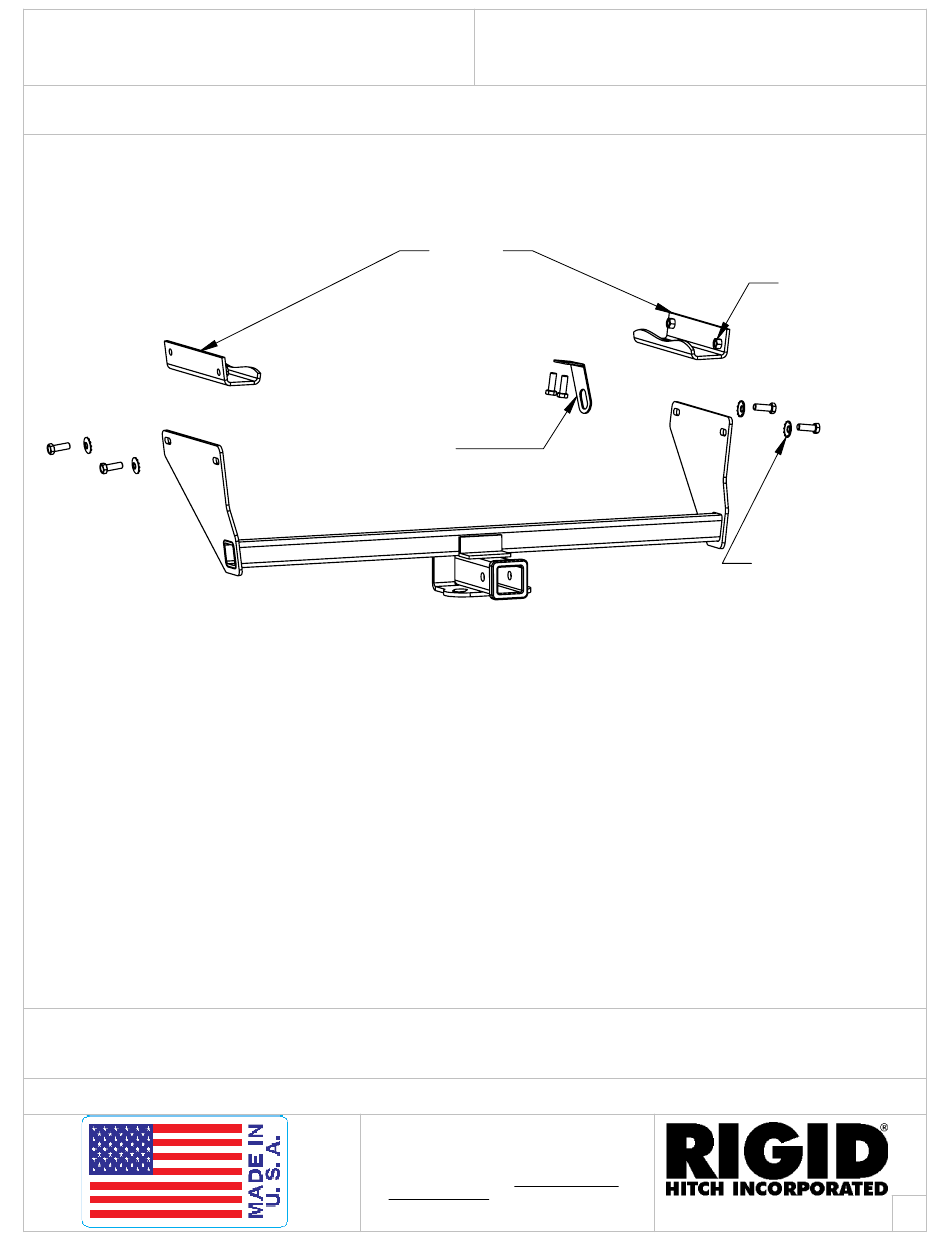

Frame Rails
Frame Rails
Existing Weld Nuts
Both Sides
Teeth of Conical Washers
Toward Hitch
(4) 1/2" Conical Washers
