Makita XMU04 Replacing

CAUTION: This document is intended to be a supple-
!
ment to the instruction manual. Reference the instruction
manual before installing or remove the blades.

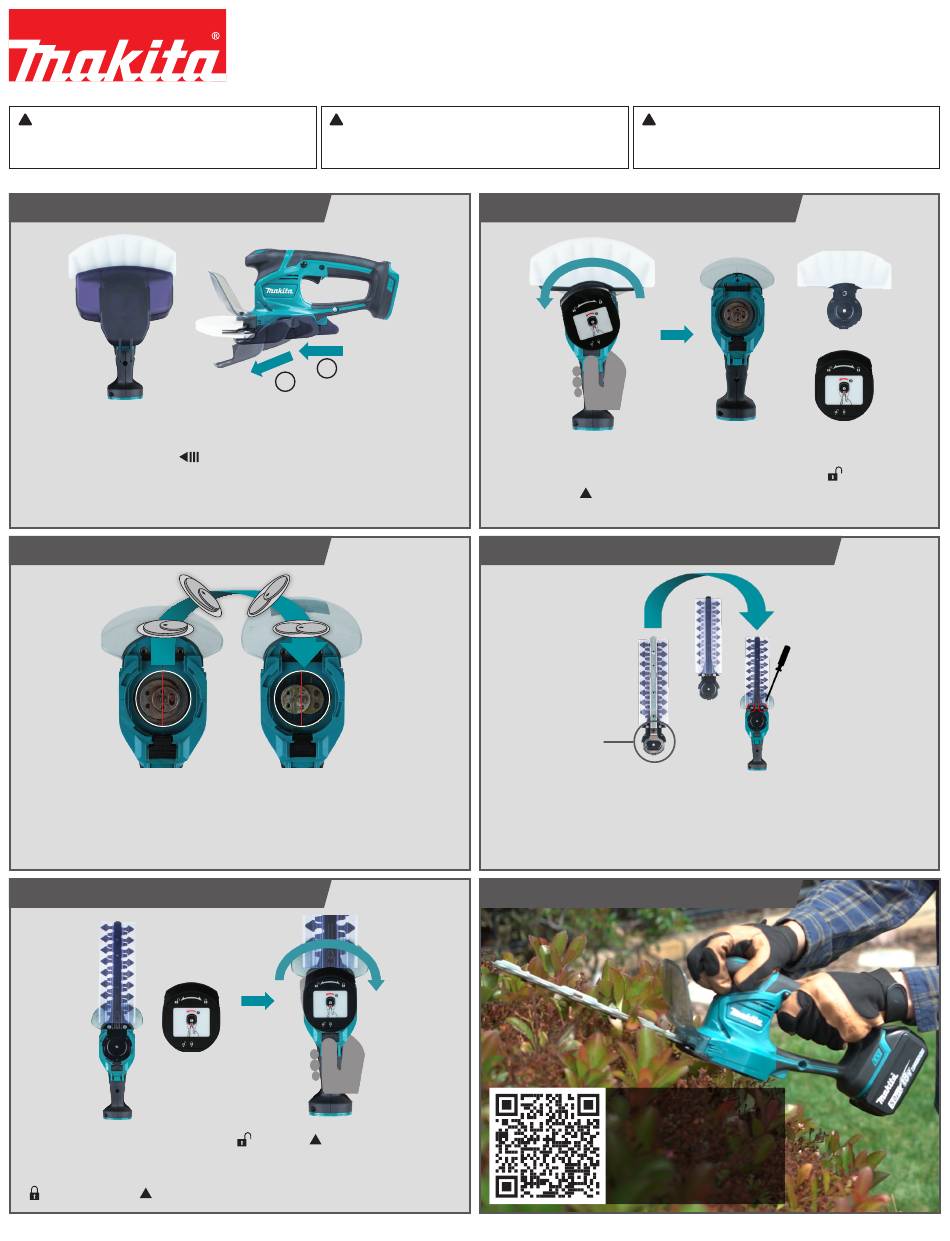

STEP 1: Remove the Grass Receiver
Release the protusions on the grass receiver from the height
adjustment grooves on the tool.
1. Push forward on the
front of the tool.
2. Pull grass receiver downwards to release the hinge and remove
from tool.
STEP 3: Flip the Crank
Crank Side 1
1. Remove the crank from the tool and flip it over.
2. Referencing the above red line, adjust the 3 pins to line up with
the alignment line
3. Reinsert the crank with Crank Side 2 facing out.
STEP 5: Replace the Undercover
Place the undercover by lining the
that the lock lever is in the groove of the undercover. Then, while
pressing the undercover in, turn the undercover clockwise until the
aligns with the on the tool.
Replacing the Blade on XMU04
CAUTION: Always be sure that the tool is
!
switched off and the battery cartridge is removed
before carrying out any work on the tool.
1
2
to slide the grass receiver towards the
Crank Side 2
with the on the tool. Confirm
CAUTION: When replacing the shear blades, always
!
wear gloves and attach the blade cover so that your
hands and face do not directly contact the blades.
STEP 2: Remove the Undercover
1. Press in the lever lock
2. Turn the undercover counter-clockwise until the
with the on the lever lock. Remove the undercover.
3. Remove grass shear blades
STEP 4: Place the Hedge Trimmer Blade
Loops
1. Ensure the loops on the hedge trimmer blade are aligned with
each other and centered with the hole on the base plate.
2. Place the hedge trimmer blade flush with the housing. The
center pin will insert into the hole on the base plate.
3. Tighten the (2) screws on the hedge trimmer blade to attach.
Your Tool is Ready to Use
Use this QR Code for
video instructions
aligns
