Ram Mounts RAM-B-176-A-UN7U Manual

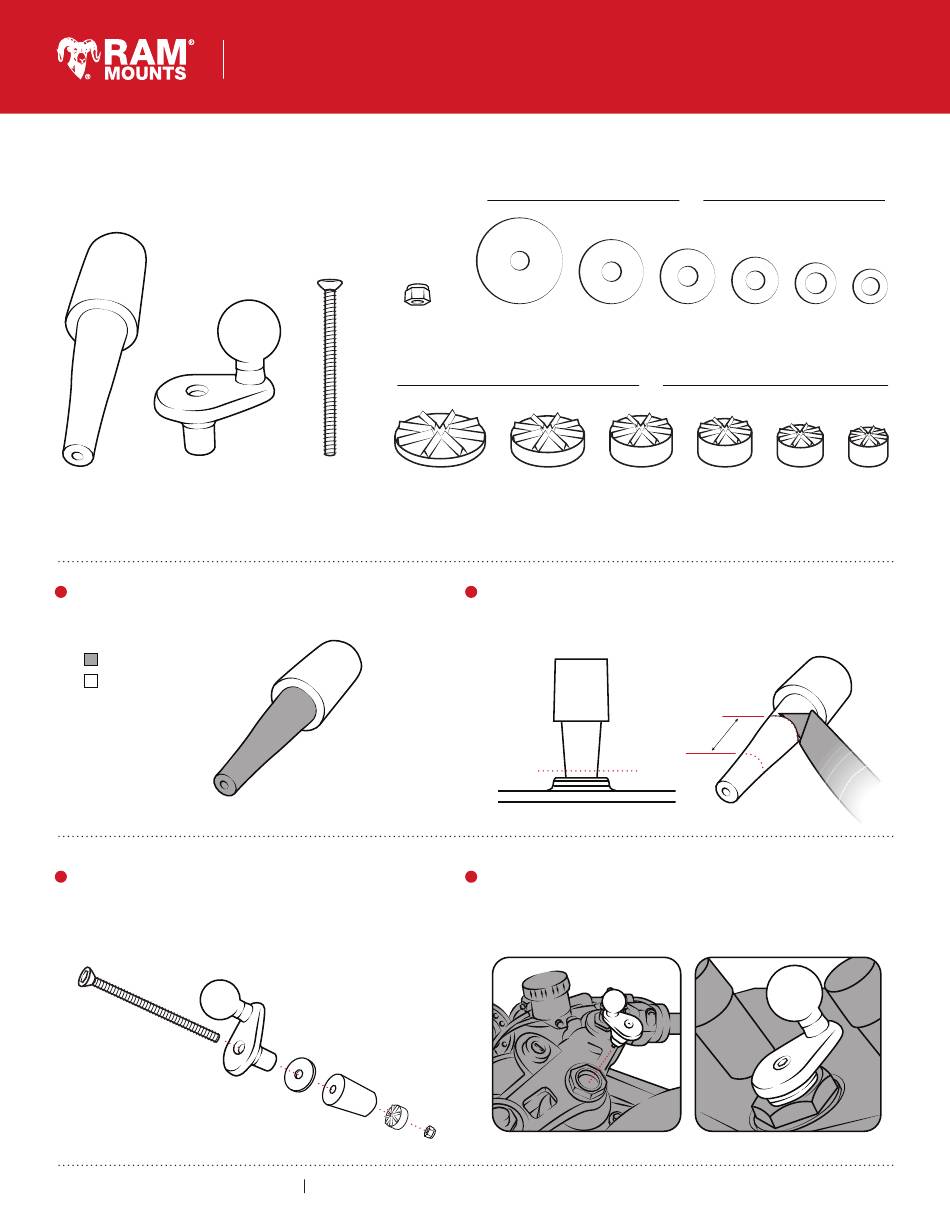

Parts Index
* not to scale
A
B
x 1 x 1
For a video demonstration of this install please visit rammount.com/instructions
Measure inside diameter of fork stem to determine which
1
side of the (A) expansion plug your install requires.
12-26mm fork stem holes
27-38mm fork stem holes
3 Assemble components as shown before using appropriate (E)
Washer and (F) Nut Pocket Washer. Diameter of selected (E) Washer
must not be wider than diameter of the top cut of (A) Expansion
Plug. Tighten assembly until (F) Nut Pocket Washer has a firm grip
on (A) Expansion Plug.
C
B
To see more mounting options, visit rammount.com
rammount.com
1.800.497.7479
support@rammount.com
C
D
x 1
5MM
x 1
28MM
5MM x 60MM
A
E
F
A
D
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
RAM Motorcycle Fork Stem Base
®
x 1 x 1
x 1 x 1
20MM
Gently insert the side of the (A) expansion plug that was determined in Step
2
1 into the stem hole and mark approximately 1/8" above the opening.
Remove plug and cut marked line. Measure 1" below the top cut and cut
along that line as well.
1/8"
Top cut
4 Insert assembly into fork stem hole until ball plate is flush with your bike.
Tighten (C) Screw using a 3mm allen wrench. Periodically check the friction
of the assembly to ensure it is tightening properly. If your assembly is not
tightening, the (F) Nut Pocket Washer may not be gripping on the expansion
plug. Remove assembly from hole and pre-tighten further, then repeat.
E
x 1 x 1
F
x 1 x 1 x 1
18MM 16MM 14MM
Top cut
A
1"
Bottom cut
RMR-INS-B-342
x 1 x 1
x 1
12MM
