Boss RV-6 Owner's Manual

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (supplied on a separate sheet).
After reading, keep the document(s) including those sections where it will be available for immediate reference.
Main Features
7 The RV-6 is a multi-function high-quality reverb that packs studio-level quality into a compact pedal.
7 Cutting-edge digital technology provides a total of eight modes, which include standard reverb as well as types that are immediately usable for live performance or recording.
7 The optimal reverb is automatically output according to the in/out connections. You can also use an expression pedal to control the reverb depth while you perform.

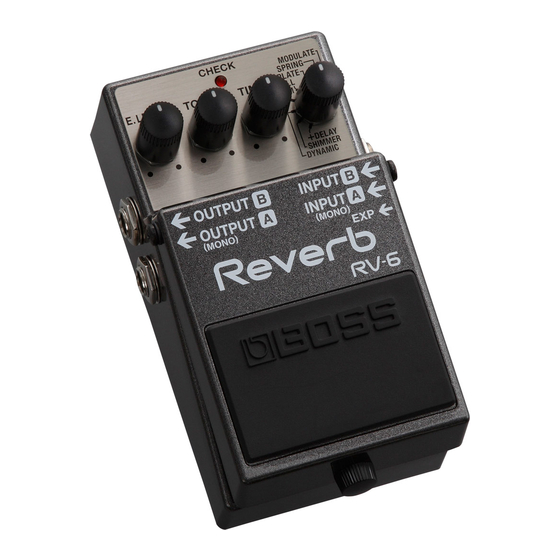

Panel Descriptions
DC IN jack
Accepts connection of an AC Adaptor (PSA series; optional). By using an AC Adaptor, you can play without
being concerned about how much battery power you have left.
* Use only the specified AC adaptor (PSA series; sold separately), and connect it to an AC outlet of the
correct voltage. Do not use any other AC adaptor, since this may cause malfunction.
* If the AC adaptor is connected while a battery is installed, the power
supply is drawn from the AC adaptor.
* We recommend that you keep batteries installed in the unit even
though you'll be powering it with the AC adaptor. That way, you'll be
able to continue a performance even if the cord of the AC adaptor gets
accidently disconnected from the unit.
E. LEVEL knob
Adjusts the volume of the reverb sound.
TONE knob
Adjusts the tone color of the reverb sound.
OUTPUT jacks A (MONO)/B
These output jacks can be connected to an
amplifier or another effect unit.
Pedal switch
This switch turns the effect on/off.
* The reverb sound remains even when you turn off the effect.
Precautions When Connecting
5 To prevent malfunction and equipment failure, always turn
down the volume, and turn off all the units before making any
connections.
5 Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on devices
in the wrong order, you risk causing malfunction and/or damage
to speakers and other devices.
When powering up:
Turn on the power to your guitar amp last.
When powering down: Turn off the power to your guitar amp first.
5 This unit is equipped with a protection circuit. A brief interval
(a few seconds) after power up is required before the unit will
operate normally.
5 Immediately after the unit is powered-on, the effect is on.
Use of Battery
5 A battery was installed in the unit before it left the factory. The life
of this battery may be limited, however, since its primary purpose
was to enable testing.
5 If you handle batteries improperly, you risk explosion and fluid
leakage. Make sure that you carefully observe all of the items
related to batteries that are listed in "USING THE UNIT SAFELY" and
"IMPORTANT NOTES" (supplied on a separate sheet).
5 When operating on battery power only, the unit's indicator will
become dim when battery power gets too low. Replace the
battery as soon as possible.
5 Batteries should always be installed or replaced before connecting
any other devices. This way, you can prevent malfunction and
damage.
5 If operating this unit on battery, please use alkaline battery.
Changing the Battery
1. Hold down the pedal and
loosen the thumbscrew ,
then open the pedal upward.
* The pedal can be opened without
detaching the thumbscrew
completely.
2. Remove the old battery from
the battery housing , and
remove the battery snap
connected to it.
3. Connect the battery snap to the new battery, and place
the battery inside the battery housing.
* Be sure to carefully observe the battery's polarity (+ versus -).
4. Slip the coil spring onto the spring base
back of the pedal, and then close the pedal.
* Carefully avoid getting the battery snap cord
pedal, coil spring, and battery housing.
5. Insert the thumbscrew into the guide bush hole
tighten it securely.
AC Adaptor
(PSA series: optional)
Guitar amplifier
INPUT Jacks/OUTPUT Jacks
9 Mono input0Mono output
9 Mono input0Stereo output
9 Stereo input0Stereo output
9 Outputting only the reverb sound
By plugging into INPUT-B, you can have only the reverb sound be
output (the direct sound is not output).
* When the effe ct is off, the output from OUTPUT-A (MONO) and
OUTPUT-B is muted.
9 V Battery
on the
caught in the
and
Owner's Manual
CHECK indicator
This indicator shows whether the effect is on or off, and also doubles as the battery check
indicator. The indicator lights when the effect is on.
* If you're powering the unit with a battery and the CHECK indicator goes dim— or doesn't
light at all—when you try to turn the effect on, the battery is near depletion and should be
replaced. For instructions on changing the battery, refer to "Changing the Battery."
Thumbscrew
When this screw is loosened, the
pedal will open, allowing you to
change the battery.
* For instructions on changing
the battery, refer to "Changing
the Battery."
RV-6
RV-6
RV-6
Reverb sound
RV-6
English
TIME knob
Adjusts the length (time) of the reverb sound.
Mode knob
Selects the reverb effect mode. Refer to "Mode List. "
INPUT jacks A (MONO)/B
Electric guitar
These jacks accepts signals coming from
a guitar or other musical instrument, or
another effects unit.
* The INPUT jack doubles as the power switch.
Power to the unit is turned on when you plug
into the INPUT jack; the power is turned off
when the cable is unplugged. To prevent
unnecessary battery consumption, be sure to
disconnect the plug from the INPUT jack when
not using the effects unit.
EXP jack
If you connect an expression pedal (Roland EV-5, BOSS
EV-30) to this jack, you can use it to control the reverb
depth.
* Use only the specified expression pedal (Roland
EV-5, BOSS EV-30; sold separately). By connecting
Roland EV-5
any other expression pedals, you risk causing
malfunction and/or damage to the unit.
Mode List
This is reverb combined with delay. The synergistic effect
+DELAY
provides rich reverberation.
This reverb is distinctive for its sparkling high-frequency
SHIMMER
range. It produces fantasy-like reverberation wrapped in
spacious overtones.
This reverb automatically sets the depth of the effect
according to your performance. It produces deep
DYNAMIC
reverberation without blurring the overall shape of your
playing.
This reverb simulates the reverberation of a room. It
ROOM
produces warm reverberation.
This reverb simulates the reverberation of a hall. It
HALL
produces clear and spacious reverberation.
This simulates a plate reverb (a reverb unit that uses the
PLATE vibration of a metal plate). It produces metallic-sounding
reverberation with an extended high-frequency range.
SPRING
This simulates a spring reverb built into a guitar amp.
This reverb adds modulation to hall reverb, producing
MODULATE
extremely good-feeling reverberation.
Specifications
Nominal Input Level -20 dBu
Input Impedance 1 MΩ
Nominal Output
-20 dBu
Level
Output Impedance
1 kΩ
Recommended Load
10 kΩ or greater
Impedance
Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw 95 mA
* Expected battery life under continuous use:
Alkaline: 3 hours
These figures will vary depending on the
actual conditions of use.
Dimensions 73 (W) x 129 (D) x 59 (H) mm
2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
Weight 450 g / 1 lb (including battery)
Accessories Leaflet ("USING THE UNIT SAFELY, " "IMPORTANT
NOTES, " and "Information")
Alkaline battery (9 V, 6LR61)
Options
AC adaptor (PSA series)
(sold separately)
Expression pedal (EV-30, FV-500H, FV-500L,
Roland EV-5)
* 0 dBu = 0.775 Vrms
* This document explains the specifications of the product at the time
that the document was issued. For the latest information, refer to the
Roland website.
© 2015 Roland Corporation
