Camco 40595 Manual

RV Holding Tank Vent
Pulls Out Waste Gases
• Low profile
• UV stabilized resin
• Easily attaches to plumbing vents
• No drilling into rooftop
• Vent rotates 360° to follow wind

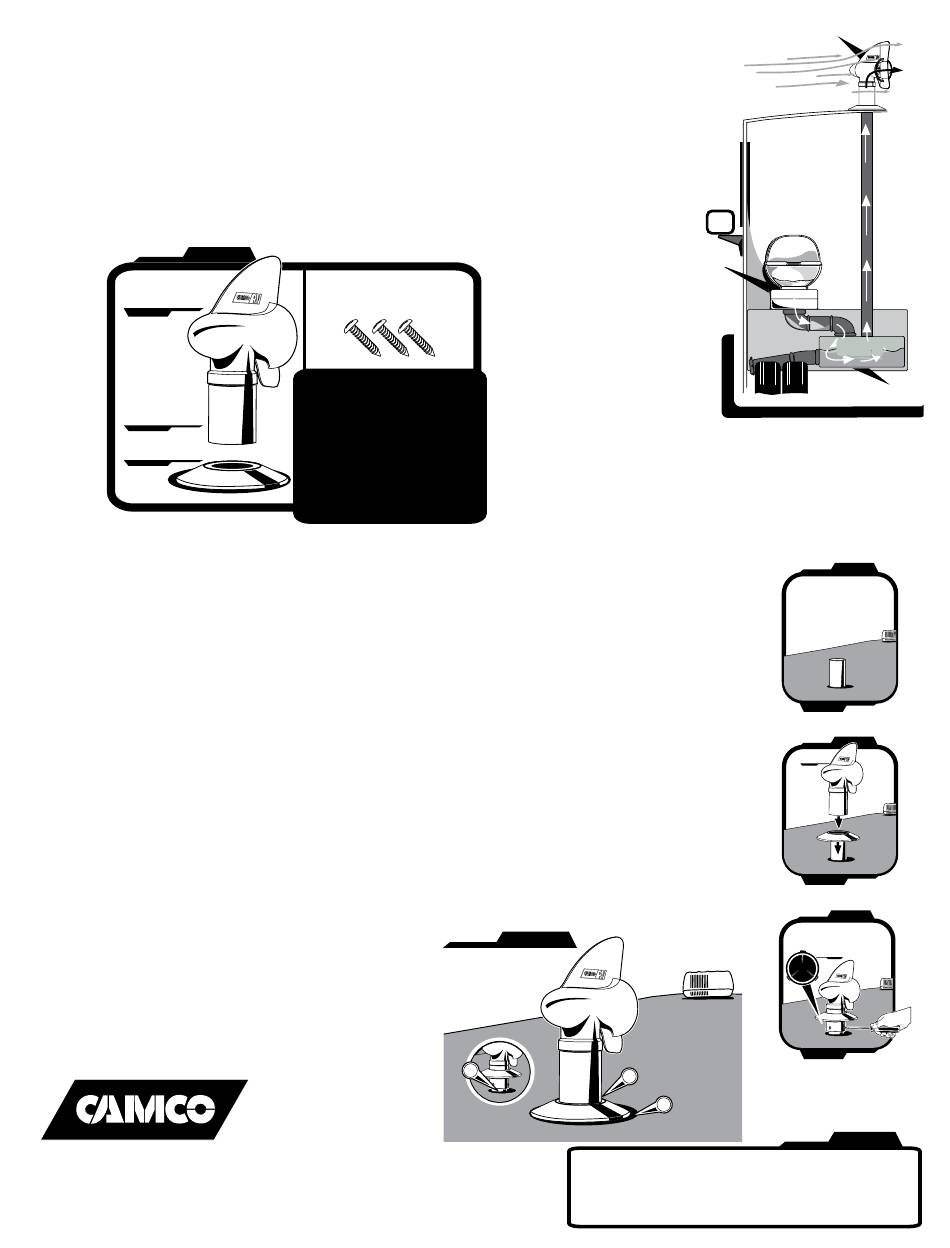

Parts
Cyclone™
Head
Cyclone™
Intake Pipe
Faceplate
1. Determine which vent pipe is to be fitted with the Cyclone™ RV Holding Tank Vent
(Black Water, Grey Water or both).
2. Carefully remove existing RV vent cap.
3. Remove any remaining sealant and clean thoroughly, being extremely careful not to damage RV roof. (If damage
does occur, use Camco's Pro-Tec™ RV Rubber Roof Patch Kit to repair before continuing.)
4. Slip faceplate over vent pipe.
5. Carefully slide Cyclone™ intake pipe onto existing vent pipe as far as possible, without pushing or pulling on the
Cyclone's head. Cyclone™ RV Holding Tank Vent needs to be able to rotate freely in order to work efficiently.
6. To ensure Cyclone™ remains in place during motion, slide faceplate up Cyclone™ intake pipe and very carefully
drill 3 holes through the intake and vent pipe with a 3/32" drill bit (space holes evenly apart) as close as possible
to the bottom of the intake pipe (otherwise the screws will protrude past the faceplate).
7. Insert screws and tighten until snug. Do not over tighten.
8. Caulk areas listed below to ensure assembly is water tight and can draw odors out most effectively. Allow caulk
to cure per manufacturer's instructions:
a. Around intake pipe base between Cyclone™ intake and vent pipe
b. Between faceplate and intake pipe
c. Between faceplate and roof
Camco Manufacturing, Inc.
121 Landmark Dr. / Greensboro, NC 27409
1-800-334-2004 / www.camco.net
- 3 Phillips head screws
(included)
Additional materials needed:
- Utility or putty knife
- 100% Silicone caulk
- Drill and 3/32" drill bit
- Phillips head screwdriver
Fig. 4
a.
Faceplate to be caulked flush to roof
RV Toilet
Stop
Holding Tank
Odors!
Make sure
Cyclone™ will
rotate freely
(Cyclone™ works
b.
most efficiently when
mounted vertically)
c.
Note: The Cyclone™ RV Holding Tank Vent was engineered to fit the
majority of RV holding tank vent pipes (1-1/2" PVE). PVC and ABS
adapters are available at local plumbing and hardware stores to fit
other pipe sizes.
Automatically
rotates with the wind
Wind
Odors dors
Black Water Tank
Fig. 1
RV Roof Top
Fig. 2
Cyclone ™
RV Roof Top
Fig. 3
Bottom View
RV Roof Top
