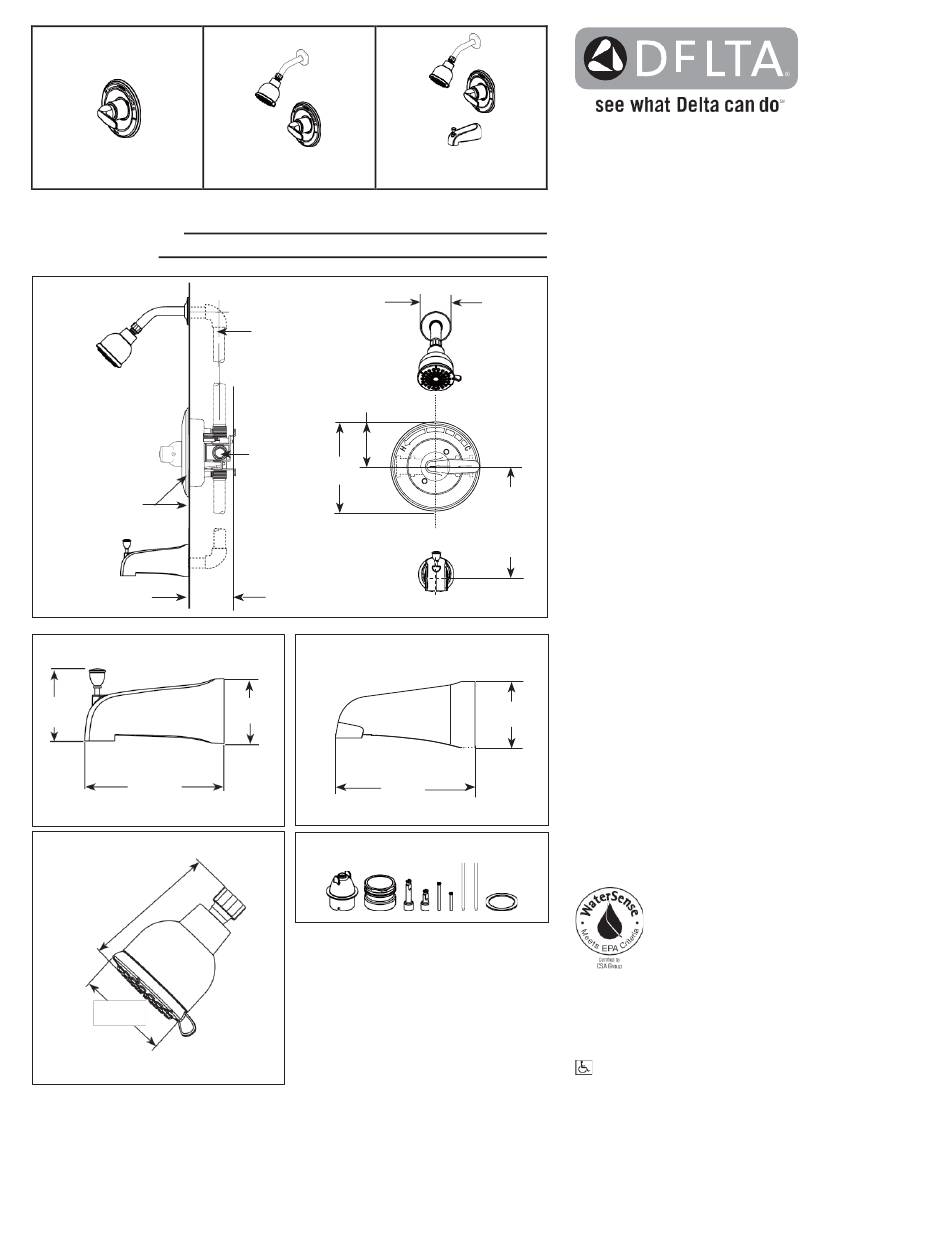

Delta BT13010 Series Manual

BT13010
p
Submitted Model No.:
Specific Features:
Face of plasterguard
should be flush with
finish wall line
RP61357p
2 3/4"
(70 mm)
5 5/16"
(136 mm)
RP102064p 1.75GPM Shower Head
4 3/16"
(106 mm)
Ø 3"
(76 mm)
Designate proper finish suffix
p
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price
book or www.deltafaucet.com for finish options and product availability.
DSP-B-BT13010 Rev. I
BT13410
BT13210
p
2 1/2"
(64 mm)
C/L Supply Lines
3 1/2"
(89 mm)
Supply
7"
(178 mm)
2 3/4"
(70 mm)
RP62149p
2 1/2"
(ø 63 mm)
5 1/4"
(133 mm)
RP77991 Available Extension Kit
TUB AND SHOWER
FAUCET TRIM
p
■ Foundations
■ Valve Only (BT13010 Series)
■ Shower Only (BT13210 Series)
■ Tub/Shower (BT13410 Series)
FEATURES:
• Monitor
STANDARD SPECIFICATIONS
• Maximum flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Maintains a balanced pressure of hot and cold water even when
a valve is turned on or off elsewhere in the system
• For use with MultiChoice ® Universal rough valve body
(R10000 Series)
8" • Back-to-back installation capability
(203 mm)
• Solid brass forged body
min.
• Temperature only controlled with handle
18"
(457 mm)
• Field adjustable means to limit handle rotation into hot water zone
max.
• 120° - maximum handle rotation
• All parts replaceable from the front of the valve
• 1/2" -14 threaded tub spout
• Stem extension kit RP77991 can be ordered to allow for an
additional 1 3/4" wall thickness. RP77991 ships with chrome
escutcheon screws. For special finishes also order RP12630
escutcheon screws in desired finish.
2 3/8"
WARRANTY
(60 mm)
• Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
• Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
COMPLIES WITH
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense
RP102064
Delta F
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2021 Delta Faucet Company
®
Bath Collection
®
13 Series pressure balanced bath mixing valve trim
