Stromberg Carlson Products LA-102 Manual

Thank you for purchasing the Stromberg Carlson ladder bike rack. When assembled and used properly, this product will provide many years of trouble free
service. This kit contains components and hardware for one complete bike rack to be mounted to your RV's exterior ladder (designed for ladders with 1"
diameter round tubing). Please read instructions completely prior to installation and use.
Carton Contents: (2) bike rack arms with mounting brackets & pins, (1) hardware bag with (4) bracket backer pieces, (8) bolts, (8) nuts & (1)
Warning:
•
Designed for max transport of (2) bicycles
•
Always pin bike rack in place while bike rack is in use or when using the ladder
•
Always lock rubber strap in place prior to transport
•
Periodically check fasteners to ensure screws are still tight
•
Do not allow bikes to hang beyond the width of your RV
•
Do not cover vehicle's tail lights
•
Do not allow exhaust fumes to blow directly on items, as this is a FIRE HAZARD
•
Stromberg Carlson is not responsible for any damage is warnings are not heeded
•
Secure the lower sections of bikes together to restrict movement/rubbing while traveling
INS-LA102
04.02.2018
Ladder Bike Rack
Model LA-102
Phone: 231-947-8600 Fax: 231-947-7006 Website: www.strombergcarlson.com

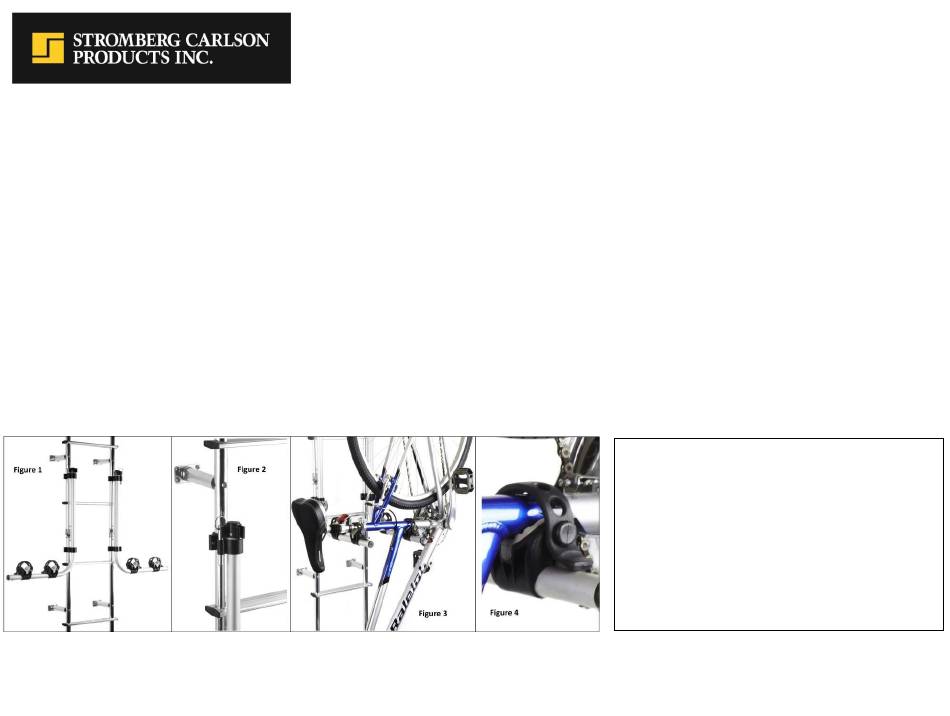

There is a left-hand and right-hand side to this bike
rack. When installing onto your exterior RV ladder be
sure the arms of the bike rack can be folded out to
allow use of the RV ladder, shown in Figure 1. Always
lock bike rack in place when transporting bikes or
when using RV ladder, shown in Figure 2.
Bikes can be hung from the bike's vertical post as
seen in Figure 3 to help eliminate any overhang of
the bike beyond the width of your RV. Lock bike in
place using rubber straps as shown in Figure 4.
