Two Bike Platform Mount Carrier for 2" Hitches or RV Bumpers
1-3/8" square tubing
14-1/4"
5/8" cradle tubing
3-3/4"

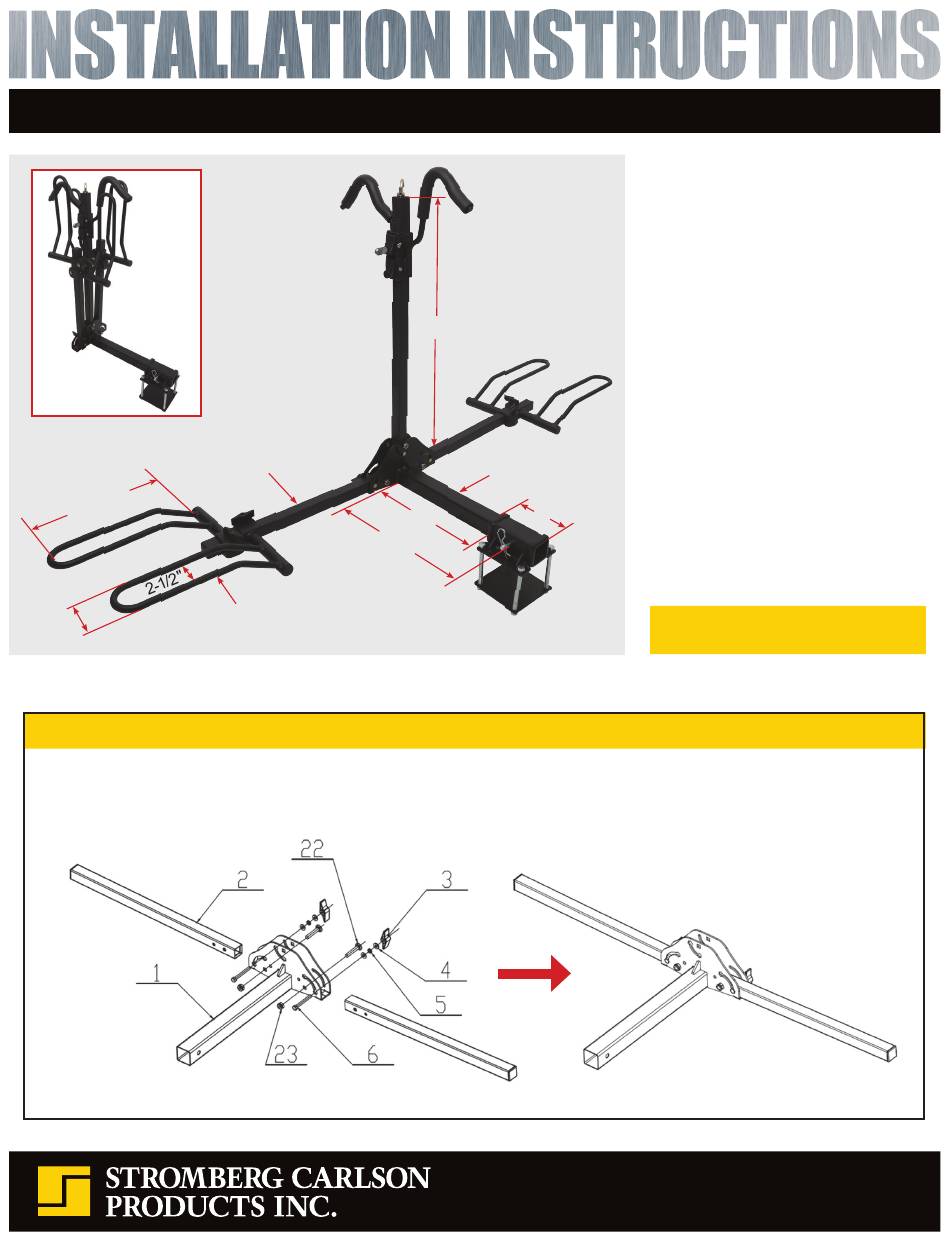

Assembly Instructions
Assemble the primary frame by connecting the Support Base
Assembly (part #1) and (2) Horizontal Tubes (part #2) using
(2) 5/16" knob, (4) 5/16" flat washer, (2) 5/16" spring washer,
BC-202BA
Fits 4" to 4-1/2"
bumpers
51-1/2" long
17-7/8"
29-3/4"
2" square tubing
6"
15"
STEP 1
(2) 5/16" hexagon bolt, (2) M10 Carriage bolts and (2) M10
Locknuts (parts #3, #4, #5, #6, #22 and #23). (See Figure 1)
FIGURE 1
Two Bike
Platform Mount Carrier
for 2" Hitches
or RV Bumpers
Model: BC-202BA
Fits 2" receiver
n
n Bumper accessory hitch included
to fit 4" and 4-1/2" square bumpers
n Tilts down for access to vehicle
n Wheel mounts adjust to any size frame
n Tire cradle fits up to 2-1/2" wide tire
(BC-2FT Fat Tire Adaptor available)
n Weight capacity 80 lb
Tools Needed
(1) 17mm Open Wrench
(1) 19mm Open Wrench
NOT TESTED ON OR APPROVED
FOR E-BIKES
INS-BC202BA-C 10.24.2022
StrombergCarlson.com • 231.947.8600
BC-202BA
Advertisement
Summary of Contents for Stromberg Carlson Products BC-202BA
- Page 1 BC-202BA bumpers Two Bike Platform Mount Carrier for 2” Hitches or RV Bumpers Model: BC-202BA 29-3/4" Fits 2” receiver n Bumper accessory hitch included to fit 4” and 4-1/2” square bumpers n Tilts down for access to vehicle n Wheel mounts adjust to any size frame 1-3/8"...
- Page 2 Two Bike Platform Mount Carrier for 2” Hitches or RV Bumpers BC-202BA STEP 2 Attach Folding Shank (part #8) to Support NOTICE Base Assembly tube, using M16 Bolt, M16 The sliding Locknut, 5/8” pin and Clip (parts #9, #12, #10 teeth face and #11) for added safety.
- Page 3 Two Bike Platform Mount Carrier for 2” Hitches or RV Bumpers BC-202BA RV Bumper Assembly Instructions It can only be mounted on a continuous steel welded RV bumper. If you are mounting the rack onto a 4” - 4.5” RV bumper rather than into your 2”...
- Page 4 Two Bike Platform Mount Carrier for 2” Hitches or RV Bumpers BC-202BA STEP 8 Rotate vertical tube to vertical position and lock with the 5/16” knob. Lower J-Hook Assembly down over bicycle frame. (See Figure 8) Apply downward pressure to bicycle and J-Hook Assembly.
-
Page 5: Hardware Kit
Two Bike Platform Mount Carrier for 2” Hitches or RV Bumpers BC-202BA STORAGE FEATURE Loosen the 5/16” knob, rotate the support tube to the vertical states, and then tighten the 5/16” knob. (See Figure 11) FIGURE 11 HARDWARE KIT PART # DESCRIPTION... -
Page 6: Assembly Diagram
Two Bike Platform Mount Carrier for 2” Hitches or RV Bumpers BC-202BA ASSEMBLY DIAGRAM PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION Support Base Assembly Short J-Hook Assembly Wheel Cradle Strap Horizontal Tube M10 Eyebolt M10 Carriage Bolt 5/16” Knob...
