KAWAJUN SH-008-3 Quick Installation Instructions

Sanitary Safety Warning
SH-008-3 (Towel Bar Handle）
Package Contents/配件表（安装前请务必先确认配件种类及数量）/同梱部品（必ずご確認ください）
Installation
Safety
Body ｘ1 Instructions ｘ1 Warning x1

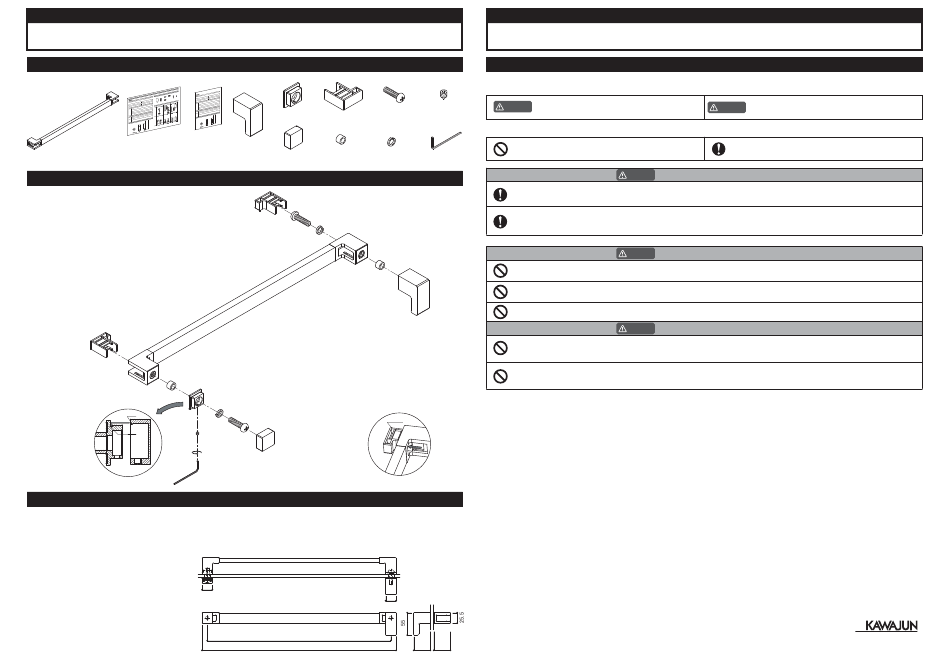

Installation Procedure/安装程序/取付け手順
1
◎Installation Procedure
① Insert rubber tube into φ１6mm hole in glass door.
② Install the handle, grip, and connector with
installation screws and spring washers.
③ Hook the cap over the connector' s groove and push in to secure it.
After cap is secured in place, screw in fixing screw with Allen key.
④ Push the cover all the way in.
Hook
Groove
Product Specification/产品规格/製品仕様
Type/类 型/タイプ Towel Bar Handle
Code/品 号/品番
SH-008-3
Material/材 质/材質
Stainless Steel + ABS Plastic
Dimension/产 品 尺 寸/寸法
475.5ｘ41x255mm
Load Capasity/承 重/耐荷重
588N (60kgf)
Glass thickmess/ガラス対応厚 8～12mm
□25.5
Glass holde size/ガラス穴加工 φ16 (2 holes)
Installation
Connector ｘ1 ABS Cover ｘ2
Screw ｘ2
Grip ｘ1
Cap ｘ1 Gasket ｘ2 Spring Washer ｘ2
◎Cap Removal Procdure?
Push the cap firmly from the inside.
①
Cover
25.5
P450
475.5
Sanitary Safety Warning
SH-008-3
(Towel Bar Handle）
Before installation,please read the "Safety Warning" to ensure proper installation of the product.
■Stated below are possible scenarios that may occur as a result of improper installation.
Warning This label is used for scenarios that could result in
Fixing
the risk of serious injuries and/or death.
Screw ｘ1
■Please proceed with caution for contents with the following label.
This label indicates actions that should be avoided
※Do not install this product on glass doors that are thicker than what is stated
After installation, please check the product one more time to ensure that the product has been firmly secured.
If the product is not firmly installed, the product might come loose and fall, resulting in injuries.
Please do not use product for any unintended purpose or application. Product failure may result in injuries.
Loads heavier than the stated load capacity may result in product failure and possible risk of injury.
Please do not subject the product to loads and impact forces larger than the stated value.
Product failure may occur, leading to risk of injuries.
Please wipe away stains (cosmetics and/or chemical product) when found. Long term stains will result in corrosion,
discolouration, and/or deterioration which may lead to product failure and result in injuries.
Wipe with soft dry cloth for maintenance. When necessary, use a damp cloth with diluted detergent and dry off with a dry cloth.
Do not use gasoline (Benzin), thinner, alcohol, acidic/alkali-based detergent and/or cleansers to clean the product.
41 41
※Please read the installation instructions before proceeding with the installation.
※Please pass any attached installation tools and installation instructions to the end user.
Caution This label is used for scenarios that could result in
the risk of serious injuries and/or product damage.
Please carry out all actions that has this label.
Warning
About installation
Warning
About product usage
Caution
About product maintenance
www.kawajun.biz
NO.001
