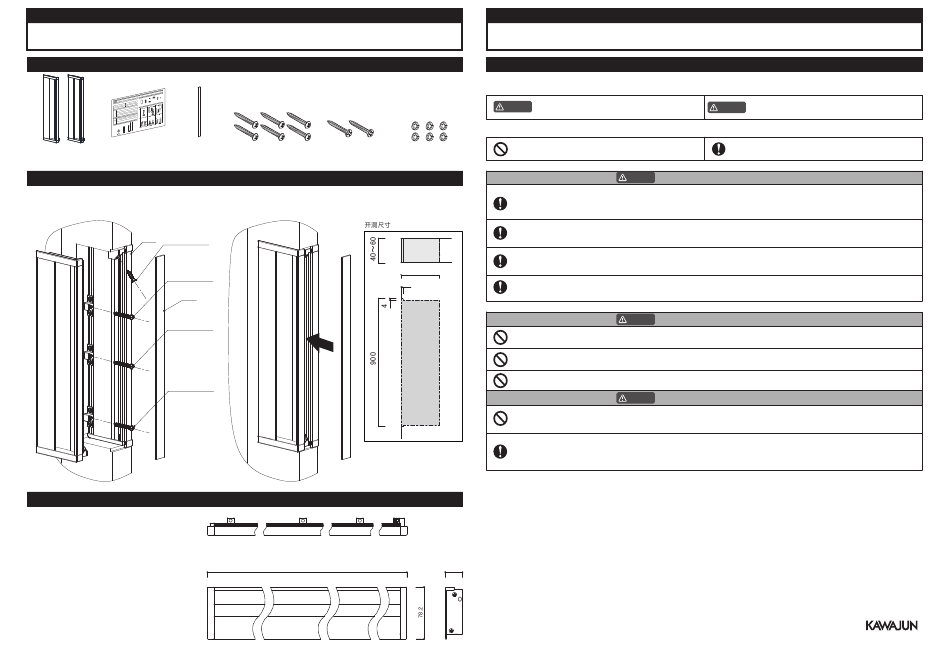

KAWAJUN PA-69 L900 Installation Manuals And Safety Information

Sliding Door Safety Warning

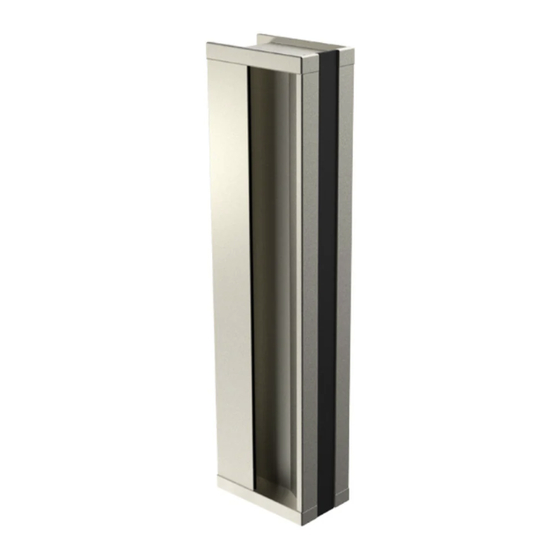

PA-69 L900 (Recessed Handle）
Package Contents/配件表（安装前请务必先确认配件种类及数量）/同梱部品（必ずご確認ください）
Body ｘ 2 Installation Cover ｘ 1
Instruction ｘ1
Installation Procedure/安装程序/取付け手順
1 2
Installation Screw
Body
(Flat-head)
Installation Screw
(Pan-head)
Cover
Installation Screw
(Pan-head)
Installation Screw
(Pan-head)
Product Specification/产品规格/製品仕様
Type/类 型/タイプ Recessed Handle
Code/品 号/品番
PA-69 L900
Material/材 质/材質
Zinc Die-casting
& Aluminium
Dimension/产 品 尺 寸/寸法
900 ｘ 78.2 ｘ 26 mm
Door Thickness/对应门厚/対応戸厚 40-60mm
Installation Installation Spring Washer ｘ 6
Screw (Pan-head) ｘ 6 Screw (Flat-head) ｘ 2
Hole cutting dimension
71
4
900
Sliding Door Safety Warning
PA-69 L900 (Recessed Handl e ）
Before installation,please read the "Safety Warning" to ensure proper installation of the product.
■In the event of improper installation, the possible situations that may occur to user are stated below.
Warning This tag indicates contents that may lead to
risks of serious injuries and/or death
■Please proceed with caution for contents with the following tag
This tag indicates contents that should be avoided
Warning
Please do not install products on non-reinforced walls. Risk of product dropping may occur, resulting in injuries.
※Please ensure that product is not installed on hollow wall structure before installation
※Corresponding door thickness for this product is listed in the product specification section below.
After installation, please check product once more to make sure product has been firmly secured.
If product is not installed firmly, product might wobble or there might be risk of product falling off, resulting in injuries
Product will be loose if installed in a notch that is bigger than what is stated.
※Do not install product onto a hollow door.
Although this is the recommended dimension, fo note that adjustments may be eeded depending on the material of the door.
Warning
Please do not use product for unintended purposes or application. Product failure may result in injuries.
Load heavier than the stated load capacity may result in product failure and possible risk of injuries
Please do not subject product to load capacity and impact force larger than what is stated. Product failure may
occur, increasing the risk of injuries.
Caution
Wipe away all stains of cosmetics and medicinal products when found. Leaving stains for long term on the
product may result in color change or corrosion which will increase the risk of product breakage and injuries
As for the metal portions of the door handle for wipe with a soft, dry cloth for maintenance
and when necessary a damp cloth with mild detergent(5-10% dilution) and finish off with a soft, dry cloth, Please
avoid Gasoline(Benzin), thinner, alcohol and acidic or alkali-based detergent and cleansers to clean the products.
26
※Please read installation manual before installation and pass it to user for safe keeping
※Pass attached installation tool (if any) to user along with the installation manual.
Caution This tag indicates contents that may lead to
injuries and /or product damage
Please carry out all actions that has this tag

About Installation

About Product Usage

About Product Maintenance
