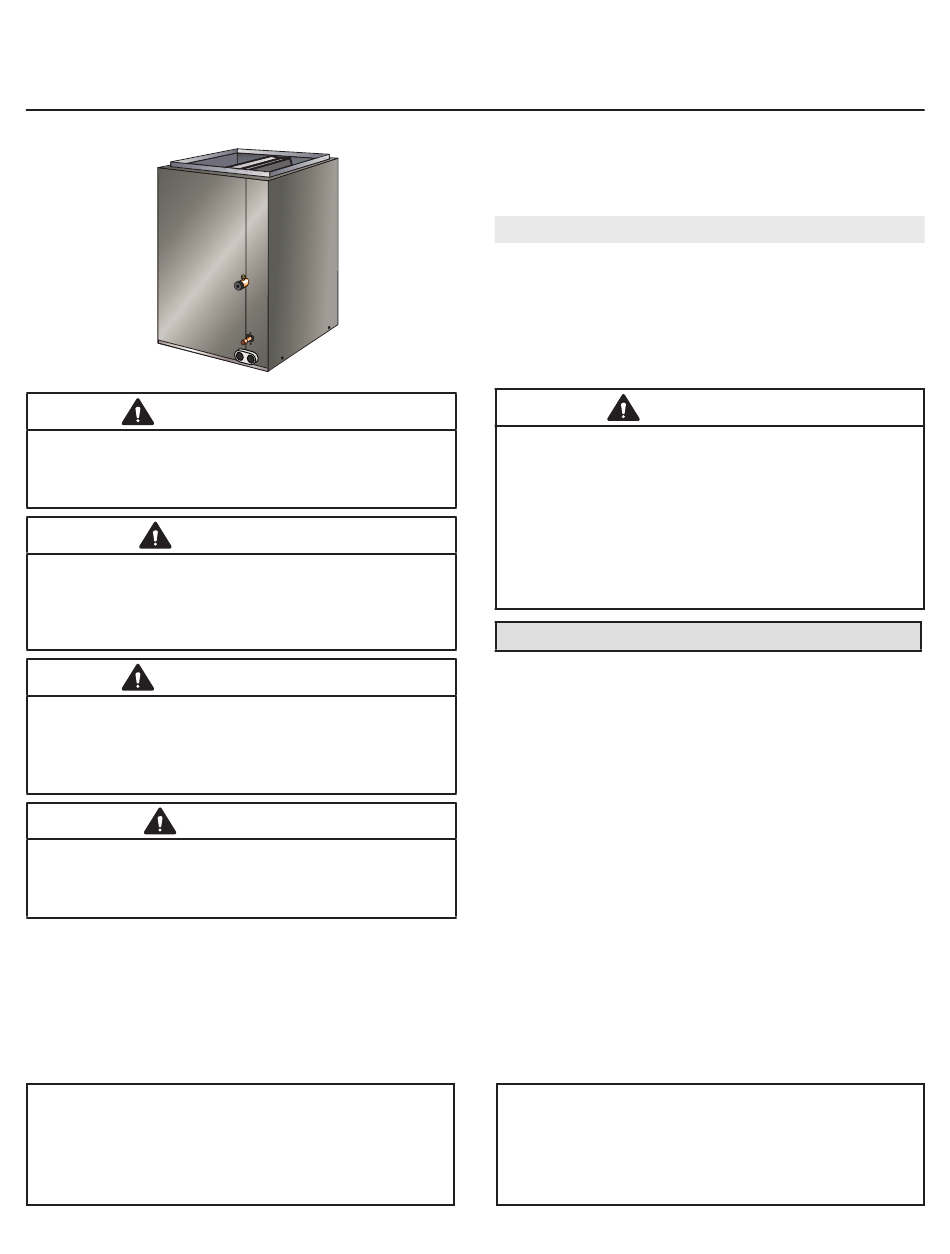

INSTALLATION INSTRUCTIONS
BC7*C-71
IMPORTANT
Refrigerant Detection System Control (27A02) must
be orderedFor non-communicating furnaces, order kit
27A02. RDS system requires 3 VA additional loading on
low voltage transformer.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
IMPORTANT
The Clean Air Act of 1990 bans the intentional venting of
refrigerant (CFCs, HCFCs and HFCs) as of July 1, 1992.
Approved methods of recovery, recycling or reclaiming
must be followed. Fines and/or incarceration may be
levied for noncompliance.
CAUTION
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
Blue Summit 1509-A
Coral Ridge Rd,
Shepherdsville, KY 40165
1-800-865-5931
508450C01
This manual must be left with the homeowner for future reference
R-454B INDOOR VERTICAL UPFLOW COILS

Table of Contents

Releasing Air Charge .....................................................3
Installation .....................................................................3
Refrigerant Line Connections ........................................5
Blower Speed Selection ................................................9
Maintenance ................................................................10
Decommissioning ........................................................ 11
To prevent serious injury or death:
1. Lock-out/tag-out before performing maintenance.
2. If system power is required (e.g., smoke detector
maintenance), disable power to blower, remove fan
belt where applicable, and ensure all controllers
and thermostats are set to the "OFF" position before
performing maintenance.
3. Always keep hands, hair, clothing, jewelry, tools, etc.
away from moving parts.
General Information
The BC7*C-71 coil includes an externally equalized
factory-installed R-454B check/expansion valve and a
factory-installed R-454B refrigerant leak detection sensor.
The coil drain pan has a maximum service temperature
of 500°F. The drain pan must be at least 2" away from a
standard gas-fired furnace heat exchanger and at least
4" away from any drum-type or oil-fired furnace heat
exchanger. Closer spacing may damage the drain pan
and cause a leak.
Refer to the Product Specification bulletin (EHB) for
the proper use of these coils with specific furnaces, air
handlers and line sets.
These instructions are intended as a general guide and
do not supersede local or national codes in any way.
Authorities who have jurisdiction should be consulted
before installation.
IMPORTANT: Special procedures are required for
cleaning the aluminum coil in this unit. See page 10 in this
instruction for information.
*P508450C01*
Issue 2431
WARNING
(P) 508450C01
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC7 C-71 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lennox BC7 C-71 Series

  • Page 1: Table Of Contents

    INSTALLATION INSTRUCTIONS BC7*C-71 R-454B INDOOR VERTICAL UPFLOW COILS This manual must be left with the homeowner for future reference Table of Contents Releasing Air Charge .............3 Installation ..............3 Refrigerant Line Connections ........5 Blower Speed Selection ..........9 Maintenance ..............10 Decommissioning ............11 WARNING IMPORTANT To prevent serious injury or death:...
  • Page 2: Shipping And Packing List

    WARNING Shipping and Packing List Auxiliary devices which may be a potential ignition Package 1 of 1 contains: source shall not be installed in the duct work. Examples 1 – Evaporator coil of such potential ignition sources are hot surfaces with 1 –...
  • Page 3: Releasing Air Charge

    TAmin Table Charge (lb) 10.0 15.0 20.0 25.0 30.0 Charge (kg) 11.3 13.6 Minimum Conditioned 150.9 226.4 301.9 377.4 452.8 Area (ft2) Minimum Conditioned 14.0 21.0 28.0 35.1 42.1 Area (m2) NOTE – Multiply values in TAmin table by the Altitude Adjustment Factors to correct TAmin based on installed altitude. Altitude Adjustment Factor Altitude (m) 1000...
  • Page 4 • Where electrical components are being changed, they potential source of ignition and is suitable for the refrig- shall be fit for the purpose and to the correct specifica- erant used. Leak detection equipment shall be set at tion. At all times the manufacturer’s maintenance and a percentage of the LFL of the refrigerant and shall be service guidelines shall be followed.
  • Page 5: Refrigerant Line Connections

    Sensor Connection IMPORTANT All R-454B coils are equipped with a factory-installed re- frigerant leak detection. Please follow the steps below to Braze-free fittings must conform with UL207 or ISO14903 ensure proper sensor communication with the system (latest edition). 1 - Open access panel Use a silver alloy brazing rod (5 or 6 percent silver alloy 2 - Route wire through factory provided wire outlet for copper-to-copper connections or 45 percent silver al-...
  • Page 6: Refrigerating System

    Leak Testing, Evacuating and Charging Refrigerant system installations shall be installed and tested per ASHRAE Standard 15.2, Section 10.0 (latest edition). Refer to the outdoor unit instruction for leak testing, evac- uating and charging procedures. Always leak check entire system before charging. IMPORTANT In addition to conventional charging procedures, the following requirements shall be followed.
  • Page 7 When the cylinders have been filled correctly and the If additional joints are present, the system installation shall comply with one of the options below: process completed, make sure that the cylinders and the equipment are removed from site promptly and all isola- Option 1 - Furnace is installed as a direct vent appliance;...
  • Page 8: Special Applications

    SPECIAL APPLICATIONS Two or More Furnaces Installed in the Same Confined Space In the case of a parallel furnace install, each unit should be equipped with its own separate control. Recommen- dation will be to add a secondary sensor to each of the parallel systems installed in the confined space Sealing Ducts WARNING...
  • Page 9: Blower Speed Selection

    OVERFLOW DRAIN LINE ABOVE ALWAYS RUN AN OVERFLOW DRAIN LINE. IF NOT POSSIBLE TO FINISHED ROUTE OVERFLOW DRAIN LINE, INSTALL LOW VOLTAGE SPACE? VENT MUST EXTEND OVERFLOW SWITCH KIT. WIRE SHUT DOWN ABOVE HEIGHT OF COMPRESSOR PER INSTRUCTIONS. COIL DRAIN PAN BY TWO INCHES VENT CLEAN OUT...
  • Page 10: Cleaning The Coil

    6 - When the required static pressure readings are A trained technician or service agency must perform main- tenance and service on equipment. At the beginning of obtained, remove the test hose lines and insert each heating or cooling season, indoor coils should be snap hole plugs into test holes.
  • Page 11: Decommissioning

    Use of Coil-Furnace System During Construction NOTWITHSTANDING THE FOREGOING, INSTALLER IS RESPONSIBLE FOR CONFIRMING THAT THE USE Units may be used for heating or cooling of buildings or OF CONSTRUCTION HEAT IS CONSISTENT WITH THE structures under construction, if the following conditions POLICIES AND CODES OF ALL REGULATING ENTI- are met to ensure proper operation: TIES.
  • Page 12 Sensor Maintenance It is recommended to check the state of the sensor every six months, at the beginning of each cooling and heating season. • Ensure that the sensor opening is clear and free of debris. • Check that the sensor cable is in good condition. •...
