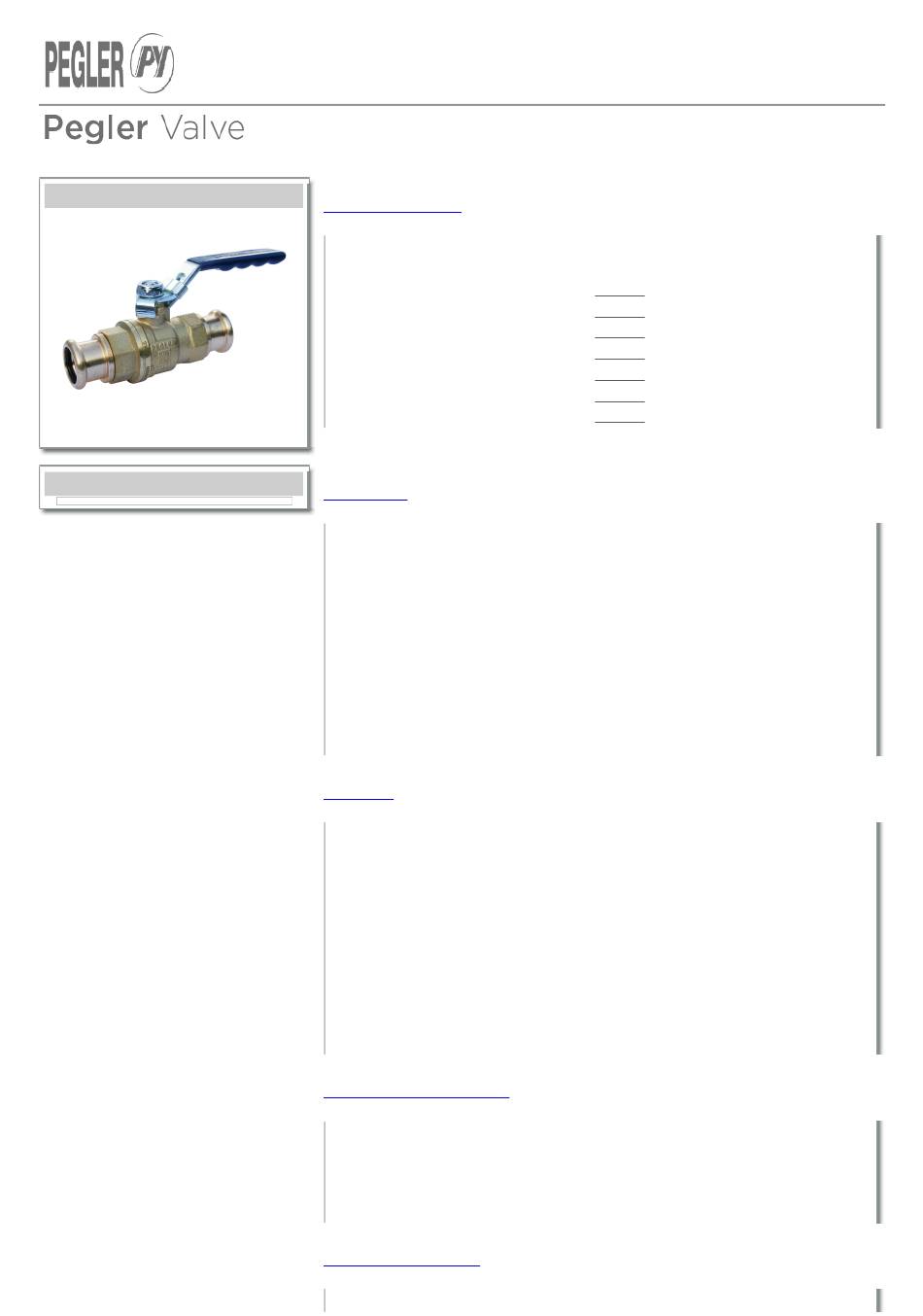

DZR ball valve with lever, full bore. XPress ends for copper/carbon steel/stainless steel tube
PS550 Ball valve
PS550 Ball valve
General Information
Pattern
Pack 1
Size
No.
Qty
15mm PS550
1
18mm PS550
1
22mm PS550
1
28mm PS550
1
35mm PS550
1
42mm PS550
1
54mm PS550
1
Dimensions
Code
Description
245220 DN15/15mm PS550 105 39 0.30
245221 DN15/18mm PS550 105 39 0.31
245222 DN20/22mm PS550 115 50 0.50
245223 DN25/28mm PS550 131 55 0.75
245224 DN32/35mm PS550 152 62 1.17
245225 DN40/42mm PS550 165 78 1.85
245226 DN50/54mm PS550 197 84 3.00
Pegler Yorkshire reserve the right to change specifications
Flow Rate
Size Pattern No. Code Kv m3/h
15mm PS550
245220 17.00
18mm PS550
245221 17.00
22mm PS550
245222 41.00
28mm PS550
245223 70.00
35mm PS550
245224 121.00
42mm PS550
245225 200.00
54mm PS550
245226 292.00
Pegler Yorkshire reserve the right to change specifications
Pressure and Temperature
Minimum Operating
Description
Pressure (bar)
PS550 Ball
No minimum operating
valve
pressure.
Care and Maintenance
Care
Pack 2
Code
Barcode
Qty
10
245220
5022050560483 £31.77
10
245221
5022050560490 £36.45
10
245222
5022050560506 £46.58
5
245223
5022050560513 £69.59
5022050560520 £102.79
5
245224
2
245225
5022050560537 £141.47
2
245226
5022050560544 £229.79
A B
Maximum Cold
Working
Pressure (bar)
16 bar up to 100oC
Price (£) each ex
VAT
Maximum Hot
Working Pressure
(bar)
16 bar up to 100oC
