Pegler Proflow 1500 Manual

Specification clause

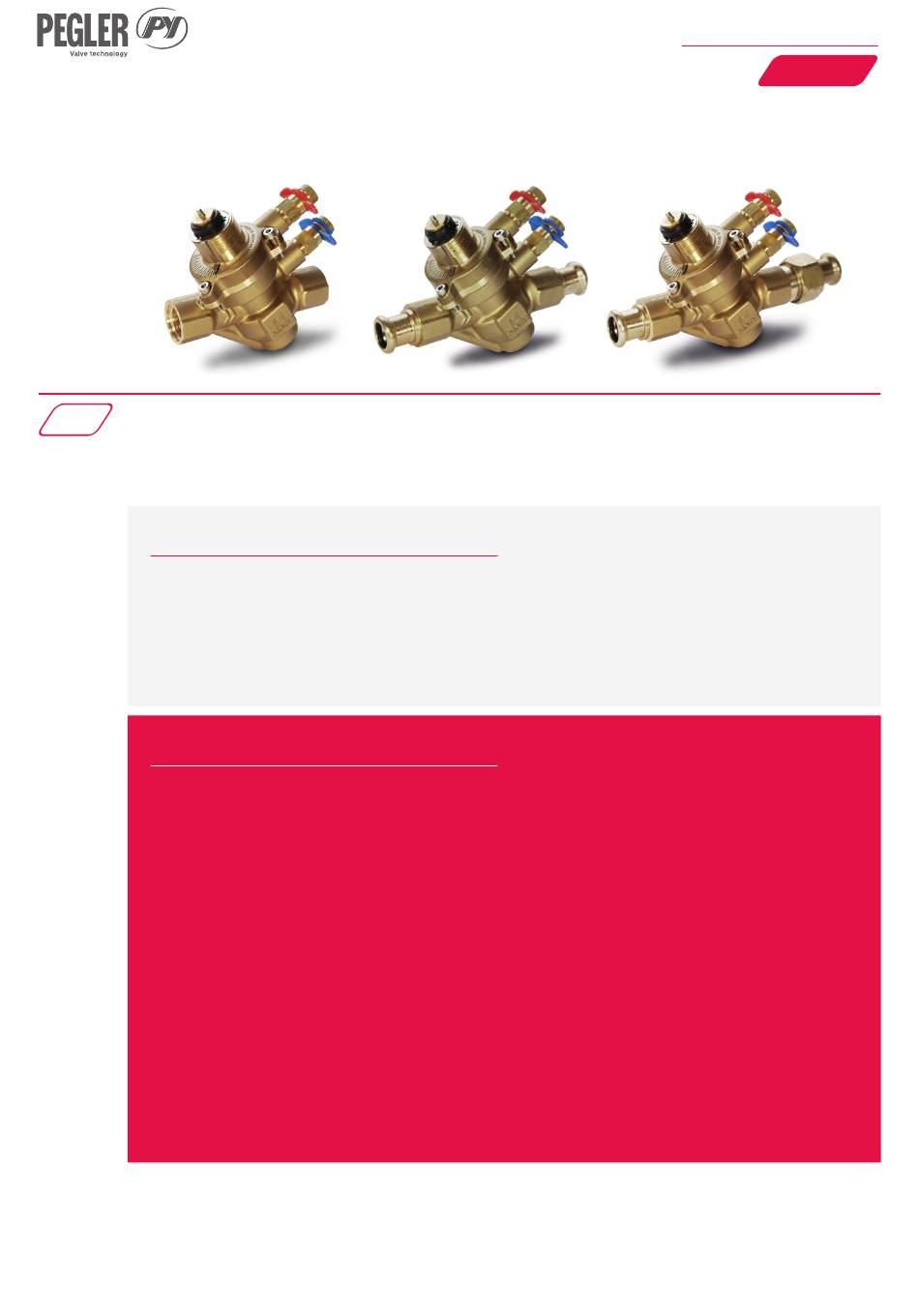

Pegler Proflow pressure independent control valve
1.0 product overview and features
The new Pegler ProFlow 1500 is a great addition to the PICV family, with a range flexibility of DN15 to DN50, the new
1500 PICV comes complete with a direct fast flush cap giving simple access to removing the cartridge. The location
of test points allow direct flow measuring utilising the built in venturi technology.
key features
• achieves 2% to 6% flow measurement accuracy across all
setting points
• fast measuring with fixed venturi orifice
• easy cartridge exchange
• allows for full-flow flush
• settings visible when the actuator is attached
specification clause
The Pressure Independent Control Valve (PICV) shall be a Pegler 1500 model.
The PICV is designed to provide precise flow regulation in HVAC systems by maintaining a constant flow rate
regardless of changes in system pressure. It shall incorporate a differential pressure control mechanism for accurate
flow regulation.
The PICV shall be available in sizes suitable DN15 to DN50 for the specific project requirements.
The valve size/type shall be determined based on the flow rates of the system.
The pressure rating of the PICV shall be PN25.
The valve body shall be constructed of CW511L or CC705Sbrass, providing excellent corrosion resistance and
durability.
The material shall be compatible with the system medium (e.g., water, air) and any specific environmental conditions.
The PICV shall exhibit a fast acting flow characteristics, allowing control of the flow rate throughout the operating
range.
The PICV shall be suitable for use with a motoric and thermic actuator, as specified by the project requirements.
The actuator shall provide reliable and accurate modulation of the valve position based on control signals from the
building automation system.
The PICV shall include a position Indicator to show the setting point after commissioning and must remain visible
following installation of the actuator.
The manufacturer shall provide comprehensive documentation, including product datasheets, installation
instructions, operation manuals, and maintenance guidelines for the PICV.
