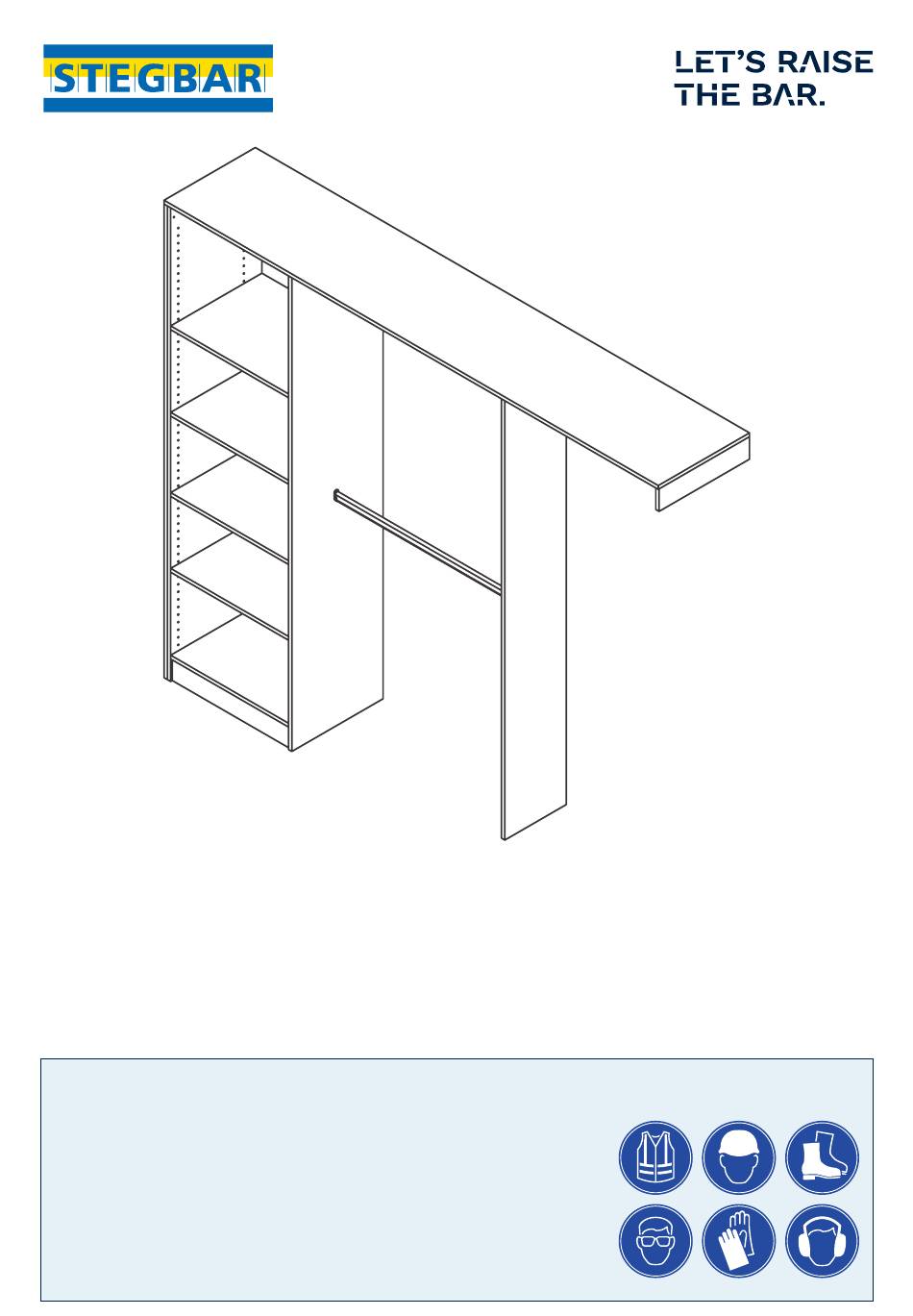

Assembly & Installation Guidelines
Built-in Wardrobe — Galleria BIR04
Please read these guidelines carefully before installing and using the product.
SAFETY INFORMATION
• Always wear appropriate safety equipment.
• This product requires two people for installation.
• If this product falls down, serious or fatal crushing injuries can
occur. This product should be permanently fixed to the wall –
contact your local fastening device retailer for advice on what
fastening devices are suitable for your walls.
• Assembly should be carried out by an appropriately skilled person,
due to the risk of wrongful assembly leading to injury or damage.
Advertisement
Related Manuals for STEGBAR Galleria BIR04
Summary of Contents for STEGBAR Galleria BIR04
- Page 1 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Please read these guidelines carefully before installing and using the product. SAFETY INFORMATION • Always wear appropriate safety equipment. • This product requires two people for installation. • If this product falls down, serious or fatal crushing injuries can occur.
-
Page 2: Items Included In The Box
Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 ITEMS INCLUDED IN THE BOX EXTRA ITEMS AND TOOLS REQUIRED CHECKLIST TOWER SHELL BOX These items are readily available from all major hardware stores. Drill and No.2 Phillips head driver Builder’s square Multi tool... - Page 3 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Step 1 Step 3 Open tower shell box. Place nailers over cam bolts and tighten. Screw in cam bolts (both sides). Place deck over cam bolts and tighten. Place fixed shelf over cam bolts and tighten.
- Page 4 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Step 5 Step 6 After tower has been positioned and fixed Check wall for plumb, place level on wall. to the wall, fit shelf brackets in and place If wall greater than 3 mm out of plumb, shelves at desired height.
- Page 5 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Step 7 Step 9 Measure the width and depth of tower and Pre-drill 2 x 3 mm holes into tower nailer. mark skirting with pencil (be sure to include Place tower in position. the infill if infill required).
- Page 6 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Step 11 Step 13 Measure from tower to where the divider is to Use a multi tool to cut and remove skirt. be located (max divider span 1200 mm). 16 mm Cut back wall cleat to size.
- Page 7 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Step 16 Step 19 Butt side cleat on back wall. Measure 214 mm off cleat on back wall and 80 mm down from side cleat. Screw into stud at each end of cleat where you have marked the height on wall.
- Page 8 Assembly & Installation Guidelines Built-in Wardrobe — Galleria BIR04 Step 20 Step 23 Measure distance between board Fast cap (white dot) all screws. (tower to divider and divider to side cleat) Clean shelving with damp cloth and remove deduct 6 mm off overall width.
- Page 9 Stegbar is not responsible for any agreements, maintenance, delivery or satisfaction of any transactions undertaken with a third-party provider. To the extent permitted by law, Stegbar is not responsible is and is not liable for any loss, damage or injury suffered by you as a result of the conduct of the third party.
