Ziamatic ZICO QUIC-MOUNT QM-ETS-1 Parts And Instruction Manual

Single extrication tool holder
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
ZICO
®
QUIC-MOUNT
Single Extrication Tool Holder
®
3095PM13
Model QM-ETS-1
Parts and Instruction Manual
Rev. 12-20-23
The QM-ETS-1 holds one (1) extrication tool
securely upright in the compartment.
Fully adjustable, the various components slide to
fit your individual tool for maximum security.
Made with heavy-duty, lightweight aluminum.
Mounts to virtually any flat surface.
WT./@
MODEL
DESCRIPTION
IN LBS.
QM-ETS-1
Single Extrication Tool Holder
13.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZICO QUIC-MOUNT QM-ETS-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Ziamatic ZICO QUIC-MOUNT QM-ETS-1

Summary of Contents for Ziamatic ZICO QUIC-MOUNT QM-ETS-1

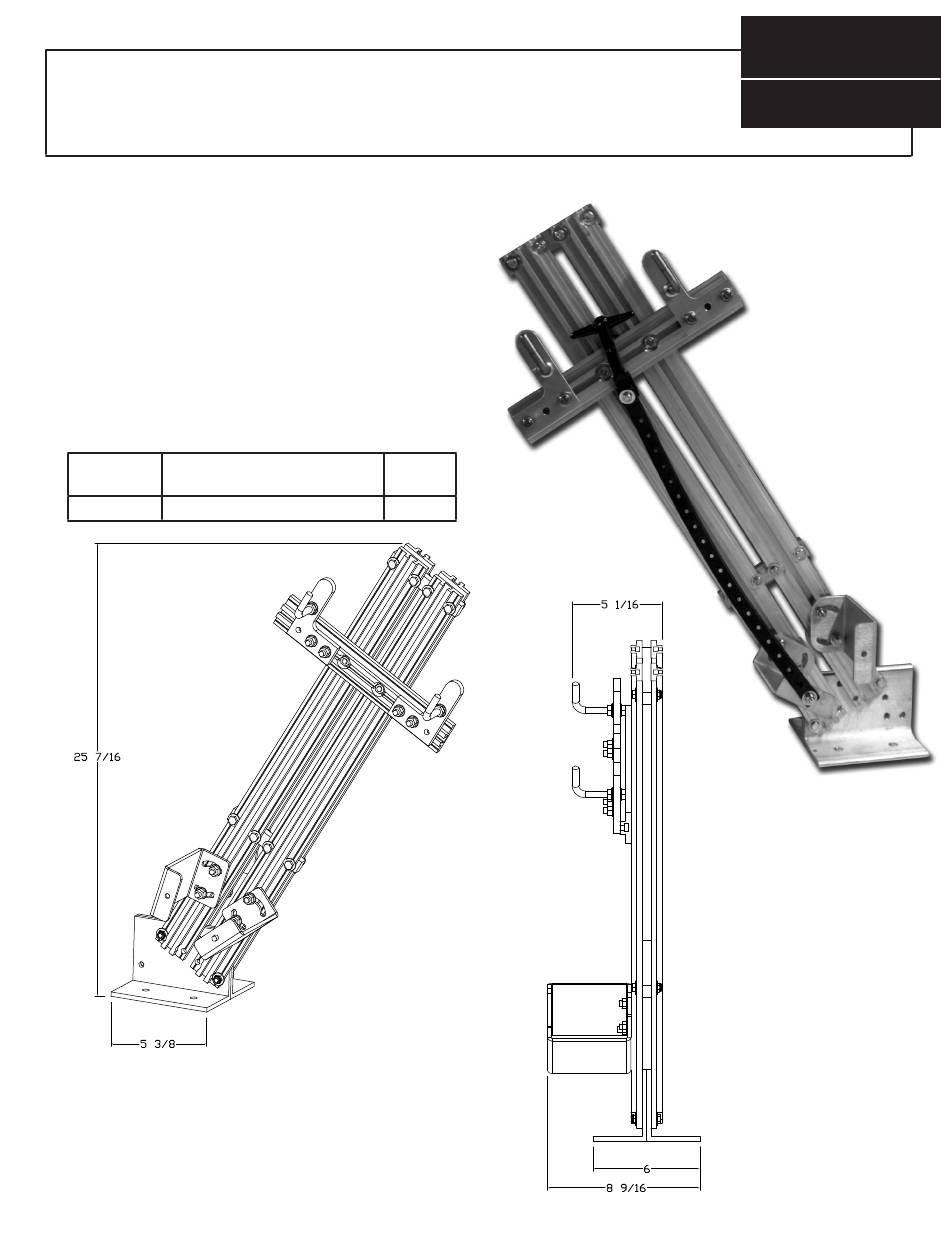

  • Page 1 ZICO ® QUIC-MOUNT Single Extrication Tool Holder ® 3095PM13 Model QM-ETS-1 Parts and Instruction Manual Rev. 12-20-23 The QM-ETS-1 holds one (1) extrication tool securely upright in the compartment. Fully adjustable, the various components slide to fit your individual tool for maximum security. Made with heavy-duty, lightweight aluminum.
  • Page 2 Parts Diagram/Breakdown - QM-ETS-1 ITEM # PART # DESCRIPTION QTY. 3095-246-101 QMT-ETD Hanging Post 3095-246-103 QM-ETD Hang Bracket 3095-246-105 QM-ETD Spacer Plate 3095-246-107 QM-ETD Channel Short 3095-246-109 QM-ETD Channel Long 3095-246-111 QM-ETD Base Angle 3095-239-103 Hanging Angle Univ. 9010-102524 1/4-20 x 1.5" Hex Bolt ZPS 9014-112500 1/4"...
  • Page 3 Adjustment Instructions: Note: Part numbers in parenthesis (see Page 2) Set-up: Adjustment is most easily accomplished with the QM-ETS-1 out of the compartment and in full upright position (as shipped). Loosen 5/16-18 x 1" sq. bolts (11) on Hanging Angle Brackets (7). Adjust brackets until they rest flush against the blade-end of your tool.
  • Page 4 TOLL FREE: 800-711-3473 10 West College Avenue, P.O. Box 337, Yardley, PA 19067-0587 • (215) 493-3618 • FAX: (215) 493-1401 Copyright Ziamatic Corp. 12-14 *ZICO is a registered trademark for fire, safety and marine products made by Ziamatic Corp. Page 4...
