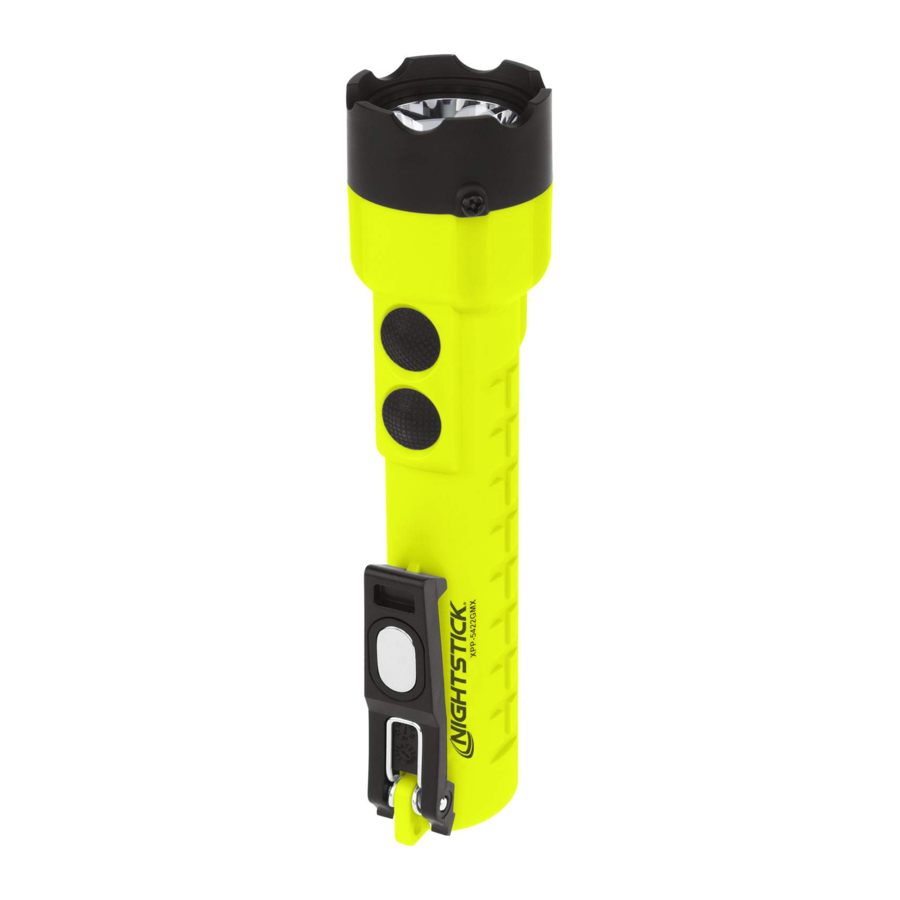

NightStick XPP-5422GMX Manual

Table of Contents

Contents

1 BATTERY INSTALLATION
2 OPERATION
3 CAPACITANCE LIMITATION - INTRINSICALLY SAFE
4 WARNINGS - INTRINSICALLY SAFE
5 SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

BATTERY INSTALLATION

In order to maintain the XPP-5422GMX's Intrinsically Safe Permissible rating, the only AA batteries certified for use with this light are the Duracell PC1500, Energizer EN91 or Energizer L91 batteries.

Do not attempt to use any other brand or model of AA batteries with this light.
Do not attempt to use any type of rechargeable AA batteries with this light.

To prevent ignition of a hazardous atmosphere, do not remove the lens bezel or the reflector / battery carrier in the hazardous environment. This task must ONLY be done in an area known to be non-hazardous.

Loosen the locking screw located on the side of the lens cap.
NOTE: Do NOT attempt to completely remove the locking screw. Doing so is not necessary and may damage the threads. The screw simply needs to be loosened enough to allow the lens bezel to unscrew.
Unscrew the lens bezel from the housing in a counter-clockwise direction.
Turn the light upside down and carefully shake the light in order to remove the reflector / battery carrier. Allow the reflector / battery carrier to slide into your hand.

Do NOT touch the reflector surface with your finger. Doing so may damage the reflector surface.
Using 3 – AA Duracell PC1500, Energizer EN91 or Energizer L91 batteries (make sure that all 3 batteries are of the same model), install the batteries in the carrier paying close attention to the markings on the battery carrier for proper battery terminal polarity alignment.
Align the reflector / battery carrier so that the switches on the carrier are aligned with the switches on the housing. Carefully insert the reflector / battery carrier back into the flashlight housing until it is fully seated in the housing.

Be careful to not touch the reflector surface with your finger. Doing so may damage the reflector surface.
Replace the lens bezel by screwing it onto the housing in a clockwise direction.
Tighten locking screw.

Do NOT over-tighten. Doing so may damage the threads and impact the light's Intrinsic Safety.

OPERATION

THE XPP-5422GMX HAS FOUR SEPARATE LIGHTING MODES:
Momentary Flashlight Mode
Lightly press the top body switch for momentary operation. Release the switch to turn the light off.

Constant-on Flashlight Mode
Press the top body switch until it clicks and then release for constant-on mode. Press and release the top body switch again to turn the light off.

Floodlight Mode
Press the bottom body switch until it clicks and then release for floodlight mode. Press and release the bottom body switch again to turn the light off.

Dual-Light Mode
Dual-Light allows the user to turn on both the Flashlight and the Floodlight, at the same time. Press the top body switch until it clicks and then release for constanton mode Flashlight Mode. Next press and release the bottom switch to activate the Floodlight. Both the Flashlight and the Floodlight are now running. Press and release both the top and bottom body switches to turn the lights off.

For a complete copy of the warranty, go to www.baycoproducts.com/baycoproduct-support/warranties. Retain your receipt for proof of purchase.

CAPACITANCE LIMITATION - INTRINSICALLY SAFE

The capacitance measured on the two magnets and the side clip exceeds 3pF for Group IIC. The user shall determine the suitability of the equipment in the end application.

WARNINGS - INTRINSICALLY SAFE

Use only the approved non-rechargeable batteries listed below.
Do NOT attempt to use rechargeable AA batteries with this light.
To prevent ignition of a hazardous atmosphere, do not open the lens bezel in the hazardous environment. This task must ONLY be performed in an area known to be non-hazardous.
When exchanging batteries, use only Duracell PC1500, Energizer EN91 or Energizer L91 batteries.
To prevent ignition of a hazardous atmosphere, the AA batteries must only be exchanged in an area known to be non-hazardous.
To reduce the risk of explosion, do not mix new non-rechargeable batteries with used non-rechargeable batteries, or mix non-rechargeable batteries from different manufacturers.
Substitution of components may impair intrinsic safety.
