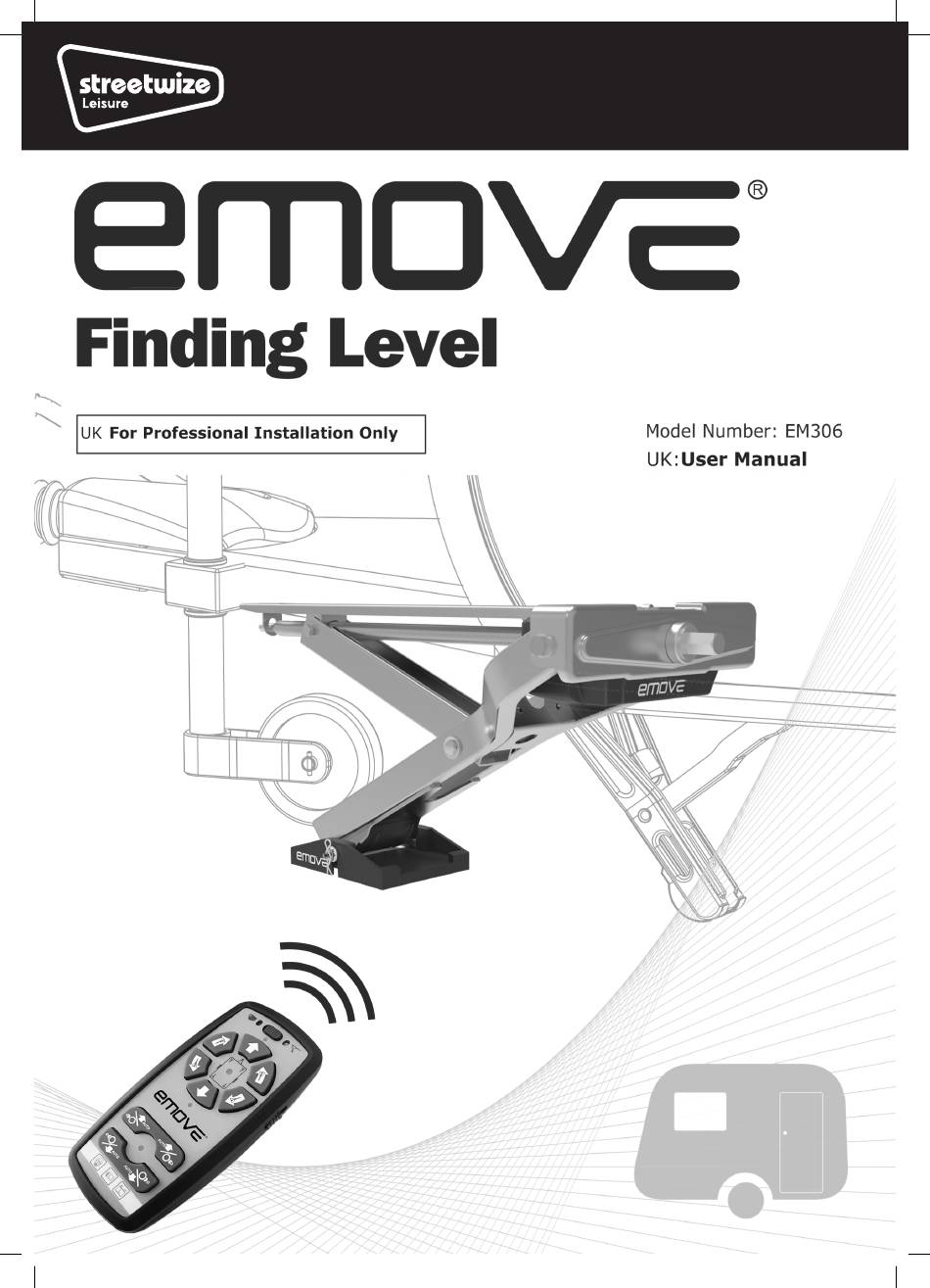

Streetwize emove Finding Level User Manual

For professional installation only
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the emove Finding Level and is the answer not in the manual?

Questions and answers

Related Manuals for Streetwize emove Finding Level

Summary of Contents for Streetwize emove Finding Level

  • Page 3 Area of operation Single axle caravan with a total weight up 2250kg on hard/flat surfaces, 1800kg on other surfaces, 1450kg on 18% gradient. Speed approx: 9cm per second Weight approx: 34kg Signed for and on behalf of: The Ace Supply Company Ltd T/A Streetwize Accessories Place of Issue: Manchester Date of Issue: 21/10/2023 Name:...
  • Page 4 Verpakkingsinhoud/Paketinhalt Package Contents/Contenu du colis...
  • Page 5 Onderdelen en montagetekeningen/Bezeic hnung der Teile & Montageschaubild Dele og tilbehør Parts identification & Fitting Diagrams/Partie l’identification-Diagrammes convenables Fig. 1 SW19 Fig. 1 SW19...
  • Page 6 Onderdelen en montagetekeningen/Bezeic hnung der Teile & Montageschaubild Dele og tilbehør Parts identification & Fitting Diagrams/Partie l’identification-Diagrammes convenables Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6...
  • Page 7 Onderdelen en montagetekeningen/Bezeic hnung der Teile & Montageschaubild Dele og tilbehør Parts identification & Fitting Diagrams/Partie l’identification-Diagrammes convenables Fig. 7...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS Package contents (Parts list) Introduction Intended use Specifications Installation – safety guidelines Installation – mechanical components Installation – electrical/electronic components Operation – safety guidelines Operation – remote handset Operation – control unit Operation – getting started Operation – emergency draw back function Operation –...

  • Page 10: Introduction

    ® specifications see Fig. 1 EM306). Just as the standard corner steady of your caravan can only be used for stabilising, also the EMOVE Finding Level system cannot be used for jacking up or levelling out your caravan. To avoid the corner steady feet to sink in the ground, the emove ®...

  • Page 11: Installation - Mechanical Components

    Make sure the caravan is prepared for installation. Check before installation that important areas, such as drains/spare tyre etc, do not cause any obstruction to the function and wires of the EMOVE Finding Level system. Completely draw back all of the manually operated corner steadies.

  • Page 12: Installation - Electrical/Electronic Components

    INSTALLATION – ELECTRICAL/ELECTRONIC COMPONENTS Make sure the 12 Volt supply from the battery and any 230 Volt electricity supply are disconnected. Remove battery cable terminals and disconnect any external electrical power before starting work. Find a suitable place for the control unit (6), such as a storage area, under a seat or a bed. Make sure this place is dry and close to the battery (40cm to 60cm).
  • Page 13 NOTE: This constant e cable power source (+12V) CANNOT be in direct connection with the caravan battery! Check this very carefully, otherwise the EMOVE Finding Level system will not work! You can test this by disconnecting the connector from the car so the constant +12V voltage drops.

  • Page 14: Operation - Safety Guidelines

    Do not use the EMOVE Finding Level system to jack up your caravan. Just as the standard corner steady of your caravan can only be used for stabilising, also the EMOVE Finding Level system cannot be used for jacking up your caravan.

  • Page 15: Operation - Remote Handset

    NOTE: in this mode the autoSteady system will not work! ® Q. emove Finding Level control mode indicator: Reflects status of remote handset. When the remote handset is set into the autoSteady system modes, the autoSteady system can be controlled via this remote handset.
  • Page 16 How to synchronise the remote handset with a new manoeuvring system or emove Finding Level control unit: The remote handset and the EMOVE Finding Level control unit are synchronised with each other in the factory. If the control unit or the remote handset is replaced, or the combine-remote handset will also be used for an emove ®...

  • Page 17: Operation - Control Unit

    OPERATION – CONTROL UNIT ® The control unit (6), which is mounted inside your caravan, is responsible for controlling the emove Finding Level system. The control unit has three LED’s, one pushbutton and one slide switch (Fig. 11): Green LED (Fig. 11A): Power LED continuously lights up when the system is activated (by moving slide switch of the remote handset to “On”-I).
  • Page 18 In general we recommend to use only the “AUTO” function. After operation, deactivate the EMOVE Finding Level system by moving the slide switch (Fig. 8A) to “Off”-O on the remote handset. The LED (Fig. 8H) on the remote handset will turn off. Store the remote handset in a safe place (out of reach of children or other unauthorized people).

  • Page 19: Operation - Emergency Draw Back Function

    than the two back corner steadies (Fig. 7B and Fig. 7D) draw back completely When the AUTO function process is finished, there will be a beep. After operation, deactivate the emove ® Finding Level system by moving the slide switch (Fig. 8A) to “Off”-O on the remote handset.

  • Page 20: Operation - Manually Operation

    Check if there is any distortion signal (other transmitter, high power cables, Wifi etc.) that disturbs a good communication between remote handset and control unit. If there is no good communication between the control unit and remote handset, the EMOVE Finding Level system will not function and the green LED on remote handset will blink.
  • Page 21 Check the distance between the remote handset and the caravan is not more than 5 meters. If there is no signal between the remote handset and the control unit, the EMOVE Finding Level system will not function at all and the green LED on remote handset will blink.
  • Page 22 Your EMOVE Finding Level is covered by a 5 year parts & labour warranty (when Registered). WARRANTY: To validate the warranty on this product please go to our web site and click on the “Warranty Registration” link and enter your details www.streetwize.co.uk...
  • Page 24 Streetwize: Suite GA, Marsland House, For Product Support: Marsland Road, Sale M33 3AQ E: support@streetwize.co.uk T: +44 (0)161 447 8597 www.streetwize.co.uk EU Registered Address: Ace Supply Co (Europe) Ltd, 25 Herbert Place, Dublin 2, D02 A098 Republic of Ireland.
