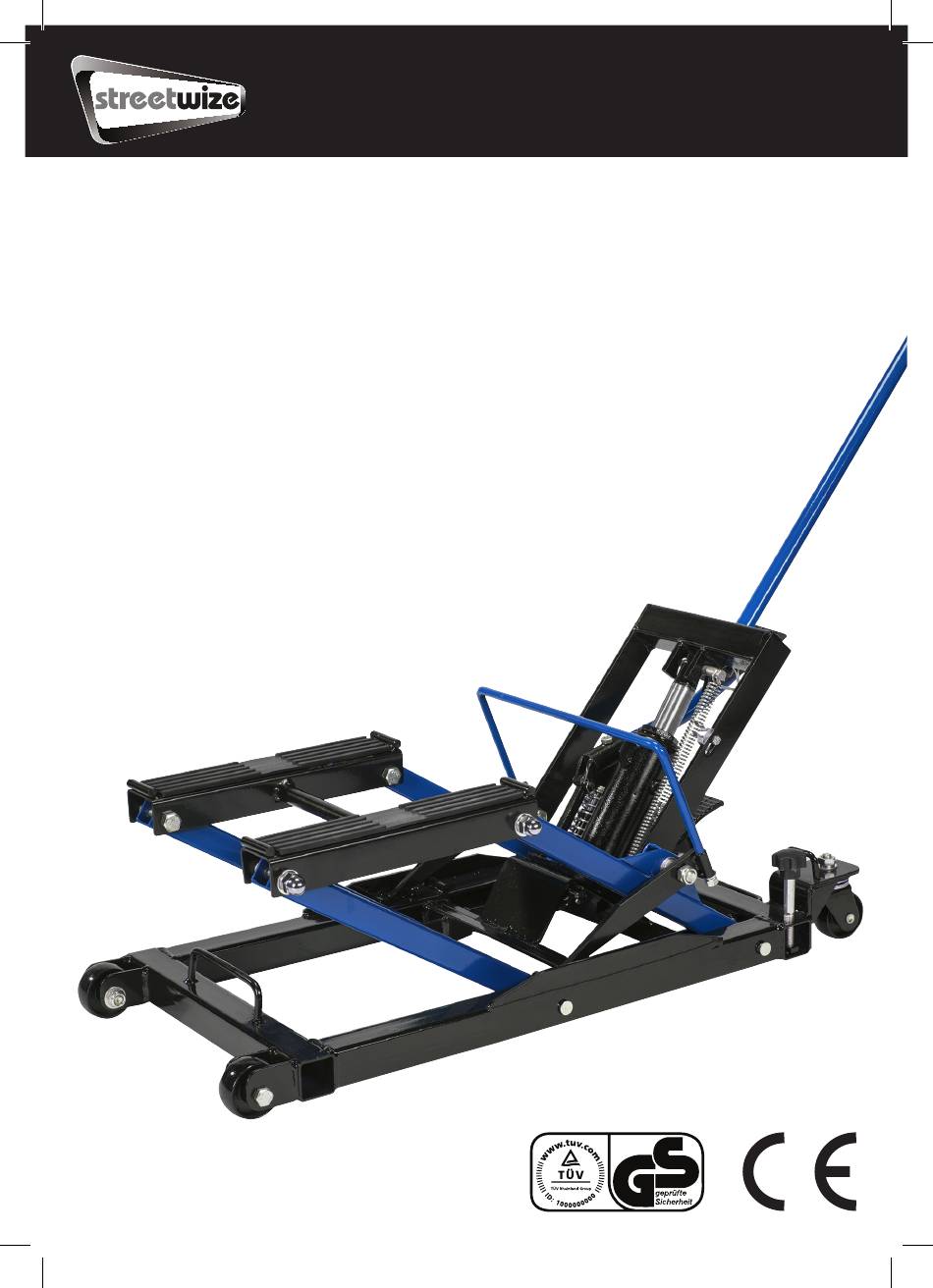

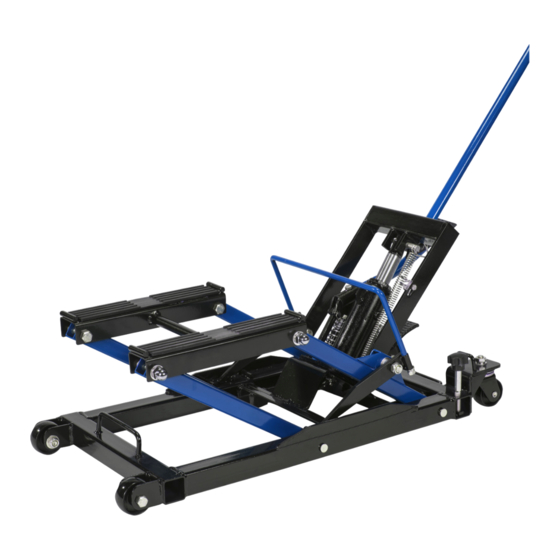

- Page 1 Hydraulic Motorcycle Jack (SWMCJ) Information for Use...
-
Page 2: Table Of Contents
Table of Contents Intention for Use Product list How to Assemble the Streetwize Hydraulic Motorcycle Jack How to Use the Streetwize Motorcycle Jack Maintenance Maintaining the Hydraulic Unit Adding Oil Changing oil Health & Safety Troubleshooting Technical Specification Spare parts Manufacturer’s Warranty... -
Page 3: Intention For Use
THE EXHAUST SYSTEM OR PLASTICS/FAIRING. EXHAUSTS AND FAIRINGS MAY NEED TO BE REMOVED TO ALLOW OPERATION OF THE JACK. ATTENTION: Before using the Streetwize Hydraulic Motorcycle Jack, we highly advise that you read through the instructions and health & safety guidance in this document. -
Page 4: Product List
(i.e a load dropped suddenly or unexpectedly upon it), immediately discontinue use until lift has been checked by a competent professional. We highly recommend that you get the Streetwize Hydraulic Motorcycle Jack inspected and services annually by a qualified professional. -
Page 5: How To Assemble The Streetwize Hydraulic Motorcycle Jack
How to Assemble the Streetwize Hydraulic Motorcycle Jack The instructions below explain how you need to assemble the Streetwize Hydraulic Motorcycle Jack. 1. Remove the jack and its components from its packaging and dispose of the packaging in the correct manner. - Page 6 4. Secure the safety latch handle bar to the Height Lock/Unlock Safety Latch using the 12mm bolts with flat & spring washers. When securing the bolts, please ensure you place the flat washer in first, followed by the spring washer. See figure 3 below. fig.
-
Page 7: How To Use The Streetwize Motorcycle Jack
7. The assembly is now complete. Before using the motorcycle jack, ensure the jack can move, lift and lower freely. How to Use the Streetwize Hydraulic Motorcycle Jack 1. To use the jack, first position the lifting saddle of the jack under an appropriate lift point. - Page 8 3. Use the lift foot pedal to lift the saddle until it comes in contact with the lift point. Make sure that the load is balanced. If not, press the release pedal on the hydraulic unit, and lift the adjustable feet to position the jack correct.
-
Page 9: Maintenance
Maintenance When the Streetwize Hydraulic Motorcycle Jack is not in use, ensure the lifting platform is fully retracted (i.e. fully lowered and not lifted). To get the best lifespan of the product, we highly recommend cleaning and lubricating all the pivoting joints with a suitable mechanical oil. Please wipe off any excess oil to prevent any slippage or falling. -
Page 10: Changing Oil
Changing Oil To ensure a long service life, we advise that you change the hydraulic oil inside the hydraulic unit every 7 years. However, it may be more frequent (every 5 years or less) if you have used the motorcycle jack in a dust and grit filled environment. -
Page 11: Health & Safety
Health & Safety Please ensure you follow the health & safety guidelines below before you use the product. • Study, understand and follow all information in this document before operating this device. • Do not exceed the maximum load of 680kg. •... -
Page 12: Troubleshooting
Troubleshooting Issue Possible Cause Correction Hydraulic unit • Release valve is in • Contact technical does not lift the depressed position support load • Overload • Resolve overload condition Hydraulic unit • Malfunction of hydraulic • Contact technical bleeds after lift unit support •... -
Page 13: Technical Specification
Technical Specifications Product Name Streetwize Hydraulic Motorcycle Jack Product Code SWMCJ Lift height 118-386mm Certification GS/CE/TUV Net Weight 28.2kg... -
Page 14: Spare Parts
(see Technical Specifications) along with the technical query. Streetwize is on CHECK OUT OUR EXTENSIVE RANGE WITH OUR EASY-TO-FOLLOW PRODUCT VIDEOS Streetwize: Ashburton Road West,Trafford Park, Manchester M17 1RY www.streetwizeaccessories.com For product support: For trade enquiries: For spare parts: E: support@streetwizeaccessories.com...
