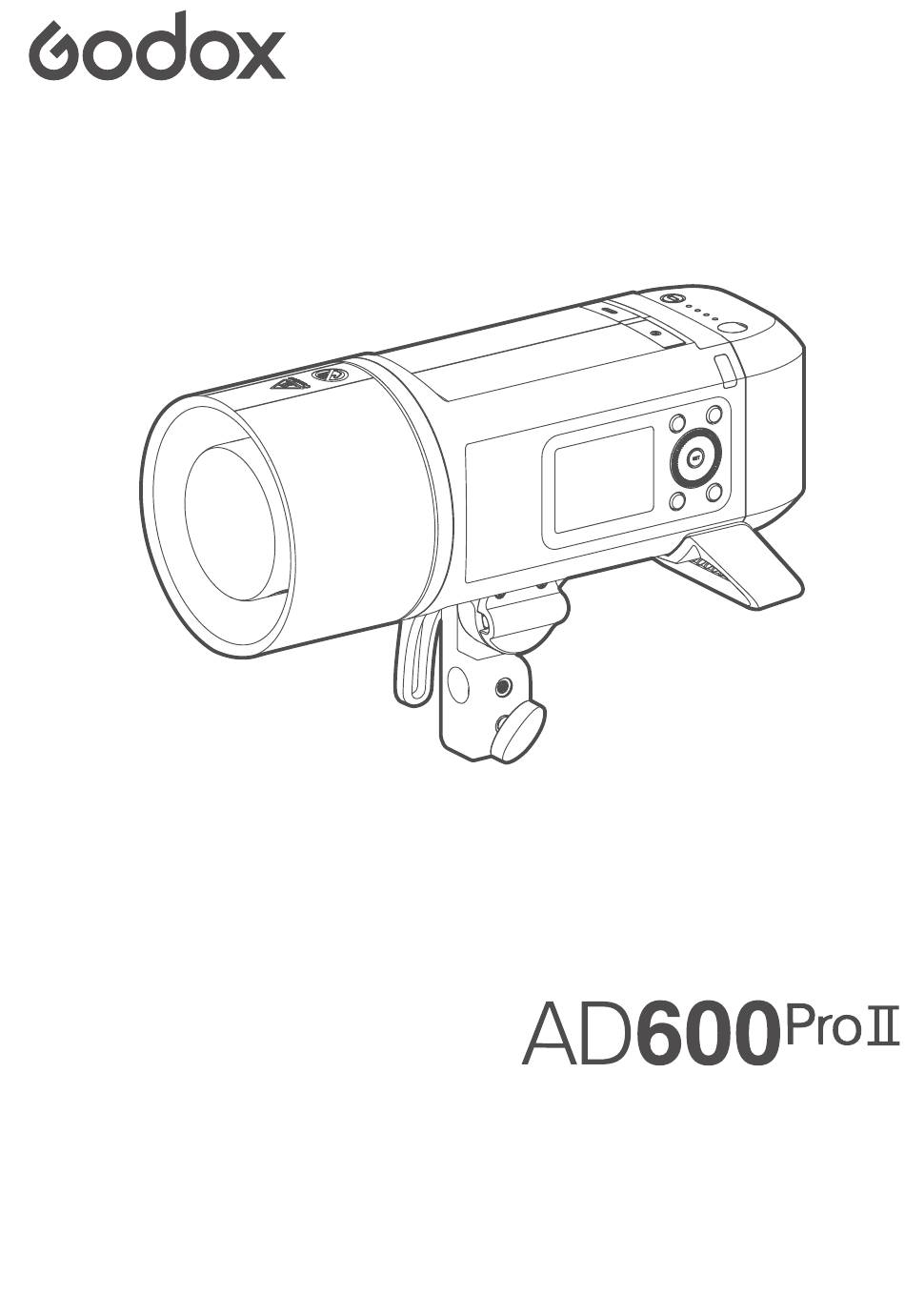

  • Page 1 一体式外拍闪光灯 All-in-One Outdoor Flash 使用手册 Instruction Manual...
  • Page 2 说明书安全提示 重要安全提示 本产品属于专业摄影设备， 需要专业人员操作使用。 使用时必须遵守以下基本安全预防措施： 使用前必须拆除产品上的所有运输保护材料和包装。 使用本产品前， 请仔细阅读并完全理解产品说明书， 严格按照说明书中的安全提示操作。 否则， 可能导致死亡、 严重伤害、 产品损坏或其他财产损失的安全隐患。 闪光灯工作时存在高电压， 关机后设备内部电容仍将持续带电一段时间。 本产品为专业灯具， 儿童禁止使用。 儿童接近时， 成人必须密切监督， 防止儿童碰撞灯具 或私自使用灯具， 造成人身伤害。 本灯具并非普通灯具， 不可用于普通照明， 任何有过眼部损伤或眼部敏感的人群均应避 免使用本灯具或直视本灯具。 使用时必须小心， 严禁接触如闪光管等高温部件， 以避免烫伤。 任何情况下均禁止将闪光灯直接对准人眼 （特别是婴儿眼睛） ， 否则短时间内可能导致视 力损伤。 如感到眼睛不适， 应立即关闭灯具， 停止使用并及时就医。 闪光管损坏时， 应立即停止使用， 及时联系制造商、 服务代理商或合格维修人员更换， 以 防发生事故。...
  • Page 3 21. �;ai9:§B1, ll!ll'fi,Ux1'i,'i£'i£1'-l:it, ;;r-:o:rfle/ll;.,,1'i,, 's'IJ!LloJflli�H9\Hl9:§ 22. /ljjj-f',11,�c§f!rctf',i,, ile!llfill!Q:,)i!i!IJ(l' 23. ;$:fle/lllltBJllFFJ"'!HHi'CllsLliE, i9:ltffl:t!l!!lE/!']la:/lll.,Fgfi�tll /&loJ'iH<lalil'JJ1ln[JiJt� '!!l'lblUJicg'T'Jllifle!lllltBJl, 7/!ilf',ll,�#/rl1\'in 24. /ll:B-f',11,f'l'l!l'!fcg;tlJ, !0�fle/ll�/ll3tEgJm3tcg, :IH.liIH/11;\,f'l'lltBJl, :/±:t!l!)icgJ:H□i,Hi IB[l,]f'lfle!ll 25. /ll:B-f',11,fle!lJWcg;tiJfjj:cg J;l;�WJiHcgnlJfle/ll,/,@-fl"!&, �ill<imi:',\:'ftficg�g:!J, J;l;fq,�g :!Jl'�,f:of� Eg;tiJ�{-1::81, f',11,iU'iB-tfEjj�)icl> IIJl!ffEg;tlJjJ!,)lj,/,@-l'j!ilt 2-3 'F iEJtll11il:!1l'cgnlJ'II)5t, P□Jl<3'tcgs-tr,j]sJJ,' m J1:lJJ□ex�AAs-tr,j]8Jllm_:icJ>, m".l'J!i]!a:JJl)J' Ji cgnlJ 26. lll:B-f',11,�c§ltcgnlJ, :ctiii'¥lll:XPDT iii'¥fill, 1!fcgniJ3t/iJl:cg�� 50% cg§; �cl>& 6 °...

  • Page 4: Table Of Contents

    目录 前言 主要特点 警告 部件名称 物料清单 可另购附件 装卸反光罩 / 闪光灯管 调整闪光灯角度 开关机 显示屏 电池说明 高速同步 M: 手动闪光 Multi: 频闪闪光 TTL： 自动闪光 无线电 （2.4G） 传输 闪光模式 神牛 2.4G 无线漏闪原因及解决办法 造型灯 自定义功能 同步插孔触发 保护功能 规格参数 固件升级 维护保养...

  • Page 5: 主要特点

    AD600Proll -{$iC$'�JSPJJ\c:tJ�-�:,c� TTL j;:JJ:J'f PJJ\c:tJ. it>g)ljJ"am!a--1'$iC, jjlsffi nit; !iUllf'lii't'll'+' 2.4G :Jc� X �$'t, �o� XPro, XProll , X21- X3 �JiUslPlffiiJ@fil':' %U M/Multi/TTU/i!iCliiL6t AD600Proll lJJJ\c; la'JB1, 8B>iiJD)filiH$'+'mliliPJJ\c:tJ,9Ht i PJJ\c:tJ, ��PJJ\c:tJ'!iU/ll±)}.Jii!r)Jfl�ffi�iJE!ll .iJE/ll AD600Prol I PJJ\c:tJ,iiil��j.,]emf 'i'-B�:IB!ili$!i§l, tEJ\c�'Jt'it;IHil:B'lffi)5tT, iiJL-)Jai./Jm.,;t1eu/!s�1PJJ\cBiolc, !Blil�tilEl�□. AD600Proll PJJ\c:tJ, r)J$s!i\'}JJ, eg)ljjgii::;J;:, :,Z::l\'i:'Em�illt 'i'-'iz:iiJff:t:!BJ\c, mUJ�f□ �3\Jl:&:Jlc,!!7'lP9�!B!lH!l�'"'!Blilt'.i/1:761.HB'lolcM:.
  • Page 6 警告 请保持干燥。 请勿私自拆卸产品，如产品出现故障须由本公司或授权的维修人员进行检查维修。 禁止拆卸、撞击、挤压或投入火中，若出现严重鼓胀，请勿继续使用。 请勿将本产品放置在超过 50 度的高温环境中。 请勿将闪光灯头正对人眼闪光 ( 特别是婴儿的眼睛 )，否则可能会在短时间内造成视力障 碍。 请勿在化学品、可燃性气体或其他特殊物质附近使用闪光灯，这些物质在特殊情况下可 能对闪光灯发出的瞬间强光敏感，有可能导致火灾或电磁干扰。在这些场合下，请注意 相关警告标识。 本产品不能防水，在雨天及潮湿环境下请注意防水。 使用本产品前请先取下灯头保护盖...

  • Page 7: 部件名称

    � - - - - - - £_ - ,,, - =-cc: - --_-_-_-_-_-_-_-_ �� -< �,!._�a:_ -�_.:,.-s:- - - --::= =r. G�+ i=-:: �,:- :::: = �----...

  • Page 8: 物料清单

    1. 闪光灯管 9. 支架锁紧旋钮 17. 电池电量显示按键 2. 彩屏 10. 手柄固定件 18. 电池充电孔 3. MENU 按键 11. 手柄 19. 电池电量显示灯 4. MODE 按键 12. 卡口推制 20. 电池盒推制 5. 调节拨盘 13. USB-C 固件升级接口 21. 伞用反光罩 6. SET 按键 14. 3.5mm 同步插孔 7. 开关 / 试闪按键 15.

  • Page 9: 装卸反光罩 / 闪光灯管

    �UP&,'f i?l i.i;J,'f nffl :Ji:�ru\aii: 1l}&:716':l'1x1)!1e-H:lfeljJ\, l:liil'l'tll riii B1ttmm, -Hlfii5Ll1l}EJi\!Jf.di:Jil;"...

  • Page 10: 调整闪光灯角度

    拆卸灯管： 按住卡口推制，卸下反光罩或其他附件后，握住闪光灯管平行拔出。 注： 装卸闪光灯管时， 请务必佩戴手套以确保安全。 调整闪光灯角度 1. 手柄固定件未拔出状态下， 逆时针旋转手柄解锁， 调整机身需要的角度后， 顺时针旋转手 柄锁紧即可固定。 2. 如果旋转手柄时触碰到灯体阻碍， 可按住手柄固定件将手柄拔出， 拉宽一些距离之后继 续上述的动作 1。...

  • Page 11: 开关机

    ff�HJL 1. tclJ'.itf*lJ'.i!ll, m:liit±JIJlll!i/llilllll1'i, (.) �m:t:.Jl !i[ BsJ'HMH�iffll'i'i-t,J,,i/l:&PoJJ'f1'Jl,o 2. tclJ'.itf*lJ'.ilit, m.ffl.:ti)l(&P*m�*o ( 1 ) M ,f.il!Jf,\l;'t 'FiiJJIJlo't !l!lif.\lf.\1,1; (2) Multi %m (!j;jiWI) Do't Elil!Jr;;J;'t (3) TTL TTL EliiJJPlo't Plo'tffi...

  • Page 12: 电池说明

    电池说明 特性 1. 本品采用锂电池 , 支持反复充放电 300 次 , 使用寿命长。 2. 安全可靠 , 内置电路有过充保护、过放保护、过流保护、短路保护。 3. 使用标配电池充电器，从低电量到满电的充电时长只需 2 个小时左右。 注意事项 避免正负极短路。 电池没有防水功能 , 不要把电池浸泡在雾、水中。 放置于儿童不易接触的地方。 电池充电不要放置超过 24 小时。 电池应放置于凉爽、干燥及通风的地方存储。 电池不要靠近和放置于火中。 电池使用报废后请按当地的规定处理。 如果电池超过 3 个月不使用 , 请对电池进行满电充电。 装卸电池 1. 安装：将电池卡槽与主体电池槽对好，往下推直至扣件卡住。...
  • Page 13 El!lt!!El!ii IEli/!><:�El!)t!JJ§�PoJffl'P;JJ't;<Jf#EI!, ml.l<'El!)t!JEl!:!i!lii!iisl.lillt, El!:!i!lii!iisD��F□oJ'l!l'�s!Ji\1J El!)t!JEl!:!i!, ll'�of��T"'L $,itl!J:Elli,;lil<m:tJ l,!,l'i_ ( :/G JH!n tt ,t $, itll $,!rn!�m•□�11 l 1 !I +3!;1 75% ~ 100% 1 !I +2!;1 50% ~ 75% 1 !I +1 !;I 25% ~ 50% 1 !I 3% ~ 25% <...

  • Page 14: 高速同步

    高速同步 使用高速同步（FP 闪光），您可以在所有的快门速度下同步使用闪光灯。高速同步模式下， 使用光圈优先对人像进行填充闪光时特别方便。 1. 短按 MENU 按键进入菜单，旋转拨盘选中高 速同步，短按 SET 按键并旋转拨盘可选开启或关 闭，设置完毕短按 MENU 按键返回主界面，上 方状态栏可见 ( )。 2. 请使用 X1 系列 /XProI 系列 /XProII 系列 /X2T/X3 系列引闪器 注： 如果设置快门速度等于或慢于相机的最大闪光同步速度 , 取景器中将不显示 图标。 ● 使用高速同步 , 快门速度越高 , 有效的闪光范围就越小。 ● 要恢复普通闪光，请进入菜单栏将高速同步功能关闭，主界面中 < >...
  • Page 15 JB1"i1f�q,]!a:c!JIJJJ:)16l!l4Jt!JB1, T*Jijf,!,�±l!J_,'fil�:)161!llf1LlH□icJ.l!a:oJI.B�, i&r :r�).i'E±�JJ□ai)Jatci> Pl:l16lll4J t!J B1:!!l:ff:l161l!HiB'l.l!a:i&m!it" l@!B1H/iiE�!J1ffl:JiitHJJ:l16lll4Jt!J, m-tH/iiE�l,l,_ffl:JiilatPl:)16lll4Jt!J" 1/512 1/512 (0.1 "- 0.9) 1/256 1/256 (0.1 C'j; 0.9) 1/128 1/128 (0.1 C'j; 0.9) 1/64 1/64 (0.1 "- 0.9) 1/32 1/32 (0.1 C'j; 0.9) 1/16 1/16 (0.1 C'j; 0.9) 1/8 (0.1 "- 0.9) 1/4 (0.1 "- 0.9) 1/2 (0.1 C'j;...
  • Page 16 显示闪光持续时间 闪光持续时间是指闪光灯从开始发光到达发光半峰值的时间长度。半峰值的表示为 t=0.5。 为了给摄影师提供更详细的拍摄数值 , 本产品采用 t=0.1。如下图：t=0.5 与 t=0.1 区别。 t=0.5 t=0.1 注： 只有在 M 模式并关闭高速同步时 , 才会显示闪光持续 时间。 t0.1 1/9800...

  • Page 17: Multi: 频闪闪光

    fle/ll!l.WWJ,1,, oJDJ6<t!J-�fUt:k:J!e<JPJ,I,, '8oJDJ:l:£-ll H .1l� _tffiffl�ijj]'l@f;f;e<J$1'-11iif!, f.:C:1'-$�1'«,Xi9:iiPl,l,1:®t±J, Pl,\,,X�ffif!l,\,�)![$ ( iltf'.DB<llf'l,\,,jz�, DJ Jsll.jJ'.i l.lilit�nt:l,!;Jm.� >, ME$!/l$. ilh9:ii 1 PJ,l,ffit±J:cJJ$, lsll.l.li l.lillt, ME$!ilft�i9:iif!l,\,,X�. mlJ'.i l.lillt, ME$/,lftill:i&l:'i'Pl,l,1,i$, tt1»i l f'l 1 Pl,\,l1�'1', iUPl,\,f¥.ll:7'1.ll:'t ! ci'l@:fJiU�HF□it�. ilelllTililB%}itiHl't:R:l'li!§l', f!.tF□/llt§1-Jl,ll!fii9:l!L i ;;J,l,,x� l"l,\,1,i$ = t:k:l'li!§l' �J�D, �D*Pl,\,,X�* Pl,\,!,)![$* t:k:1 ' li!§l'!l!rn0>7'1 f'.D,...

  • Page 18: Ttl：自动闪光

    最大频闪闪光次数 12-14 15-19 20-50 60-100 闪光输出 1/16 1/32 1/64 1/128 1/256 1/512 TTL：自动闪光 在 TTL 模式下，相机的测光系统会侦查从主体反 射回来的闪光照明，从而自动调节闪光输出量， 使主体和背景得到均衡曝光。通过短按 MENU 按 键进入菜单开启无线功能，将组别设置为 A 至 E 频道 中的任意一个，设置完毕短按两次 MENU 回到主 关 界面。 短按 MODE 按键令屏幕显示 <TTL>，可以使闪光 灯进入 TTL 模式。...

  • Page 19: 无线电 （2.4G） 传输

    AD600Proll fle/ll 2.4G ;,Ii;� X ��. oJ�)"a21s:,;!el:ft!l�%l'o��;".fle!ll 1'1'7'J)},Jlo-'l'-5i;oJ,ffi: �B<Jt§til,'/HifllL /Effi, �/E, !ll!;\,tf:oll/i, f'H, 1:±. �il:l, *-t<I', @!ls±l:\'-'l'-5i;�i.v.J iJJ�. ;,1i;1'1iJ-¥i.v.JWJ!L AD600Proll i'i'7'lh\/lo-'l'-5i; , oJ'?i'JQ11'1JG�;J,:�j]jJ�ga(]cJcJQ-'l'-5i;, �%�OT: XPROII �,SU /X3 �,SU /X2T �,SU N1 Pro �,SU N1 �,SU N860III �,SU�" �tiliaili' Jcli:!Ji MENU !Jillill!:J,J/lc-'I'-, i\/Wit!U1/;Jl'i;q,7e�, Jcli:!Ji SET !.1i1Jllfi\/H1.!£ffl: oJJl'i;;,li;�J'f* �,ii![ �U...
  • Page 20 设置通讯频道 如果在拍摄现场不止一个无线闪光系统 , 您可以通过更改通讯频道或设置识别号来防止信号 干扰，保证主控单元和从属单元设置为相同的频道编号即可。 无线 开 / 关 频道 1-32 组别 0-9、A-F 识别号 关闭、1-99 无线同步 短按 SET 按键进行无线同步 使用方法以 X3 引闪器为例： 关闭相机电源，将引闪器放置于相机热靴插座上，打开引闪器电源开关和相机电源。 设置引闪器 X3：从顶端往下滑动屏幕，令屏幕显示 < 设置 >，点击 < 设置 > 进入自定 义菜单，点击无线设置进入频道、识别号设置。从左侧往右滑动屏幕可回到主界面，在 主界面可设置组别的闪光模式或闪光功率档位。 设置闪光灯 AD600ProII ： 短按 MENU 按键选中无线， 进入无线设置开启此功能， 将频道、 识别号设置成同引闪器一致。...
  • Page 21 ;t�f;;J3\HEl!II !EflLilll�fFi'Bli c 'TL;�r;;J:l'tte!lle\Jm/JIJ > • ile!'ll-1-MJli!.!j,.:ii;J!:!fileli(IJPl:l'tffill, Transmitter )±: 7. �ffl11l;lstla£Mi,i/JllfliJclcE1-'1l-5ci'\eYs£Mli/a, Receiver 2. mtlilll!iliilWil!rrlllli>tf<l)l',ffii>t!8, 3. :l\'i!zllL /lil lllfl'±!I, 3<'-(WJli!'J;;a� . i1'iilell\!sf (Mlfl) �§l!':ill, 4. clctsi'lsfi&!'i!i'h\Jii!Pl)'t')cffil (OFF) oJ�)1i'.l'MJli!.!j,.:,i;,:,'ll;tl7'Jf\lj1-:a.\i=1-ffl#tnJ(g,<f);J:l't3U� ( fg$) B�ia'JB1l!:!fi leli(/Ji' JJ :l't mmo Jlt,l. oJ�)7'J§Pl:l'tffli9:5E#/'ll,Gia'JB�Pl:l'tll!'ittall,o • fflj),lj1'-f}.,r.,fflJ;!fi13i(IJ1JJ:l'tffilllo...

  • Page 22: 闪光模式

    闪光模式 短按 MENU 按键进入菜单，旋转拨盘选中闪光模式，短按 SET 按键并旋转拨盘可选标准 / 色温 / 凝固。 标准闪光，主界面无指示。 标准 色温恒定，开启后主界面出现图标（ ），组别指示灯会闪烁，蜂鸣器开启 色温 状态下会响一分钟，此时请按试闪按键放电，即可正常使用。仅在 M 模式并 关闭高速同步时支持开启，使用此功能全档位色温漂移在 ±100K 左右。 凝固模式，开启后主界面出现图标（ ），闪光时间比标准模式要短，功率 凝固 对比标准模式也较小，仅在 M 模式和 Multi 模式下支持开启。 神牛 2.4G 无线漏闪原因及解决办法 1. 外部环境 2.4G 信号干扰 ( 如无线基站、 2.4Gwifi 路由、 蓝牙设备等 ) →请调节引闪器的频道...

  • Page 23: 造型灯

    AD600Proll �c'!!i' 40W*40W Xll.@::k:rJJ¥ LED Jl!,l!!':tJ, 'mJJ'iJl!,l!!':tJll'illilt!:Al&l:'!!i', /iiE$' � )$:i!l: iiJll'o;,1cffi /}Hf/ ll!!IIJ1i, 'mtl'i SET ll'illi#/iiE$1i)$:J/l:iiJxt:il:'1'-Ijl[Jt!:fil9:]!l', i)).'!!i'�-'/2'mtl'iJl!1 l!!':tJtl'i\Jiis@l.±;i;_llil ��n *� 5� =IJff 42QQk �ltil! *Iii @.l.!il (ll,l 100K '9llii) �Jl (ll,l 1% '-!!Iii) 10%-100% 2800K-6000K <Hf �lll1i 2800K-6000K l1!!11J1iPlo'crJJ¥...

  • Page 24: 自定义功能

    自定义功能 图标 功能 选项 说明 无线 关 关闭无线设置 开 设置通讯频道 闪光模式 标准 标准闪光 色温 M 非高速模式下支持开启 凝固 M 模式和 Multi 模式下支持开启 光控引闪 关 关闭光控引闪 M 模式下支持开启 高速同步 关 关闭高速同步 开 M 模式下支持开启 造型灯 闪灭 闪光灯回电灭 持续 常亮 蜂鸣器 关 蜂鸣器关闭 开...

  • Page 25: 同步插孔触发

    cp:,z 3'1-]ljjcp=Jei$;lm.mlmi$;$3'z 'li -== li::ii::i 3'1-]ljjcj,=Jei$;lm.m English English '�:.[t±J,ij)_'l![ � ilJ:l[t±J,i&.'l!i' ]jR;/'J'��tll,i&.ii' rull!;rm '!!rti��uf/l,ilru'%N./t&.;$:% i£�ffi",@. UIHiiP • ME1tPH6'.tJ�J1Jli,:)H,JtJ;F, i'llW:fE 111 rJl$B1l!±fii!11J1100 ,�e�t}sJU,�DH6, 100 ,�li�Pl,16€, 'll'ilPJ,16'.tJ�o!>,ti\P 10 5:l-¥11, • Jmi/il:fEillfi�J1100 ,�li�Pl,16€E\-1l1!,�illfile:�,�Pl,16, PJls�B�llJJJ1Jli,rJJ��oJ��� tUl'.l'li, iie@l egs,tfej]'Jt7" 1 o tWJ_t, �Q*�!tl2'f!',Jll�, l'li/ilPJ,16tJ;ti\Pt<l 1 o ,:H� , Pl ,16'.tJiJl'.�Wi�IE,ia, •...
  • Page 26 功率 次数 1/64(+0.0 ～ +0.9） 1065 1/128(+0.0 ～ +0.9） 2100 1/256(+0.0 ～ +0.9） 2100 1/512(+0.0 ～ +0.9） 2100 高速同步模式下, 激活热保护功能的连续闪光次数： 功率 次数 1/2(+0.0 ～ +0.9) 1/4(+0.0 ～ +0.9) 1/8(+0.0 ～ +0.9) 1/16(+0.0 ～ +0.9) 1/32(+0.0 ～ +0.9) 1/64(+0.0 ～ +0.9) 1/128(+0.0 ～...

  • Page 27: 规格参数

    ffi!ffl�I{ :HllMllo-'l'-,clJl.iC ;.lc!Jl>g!Jl.iC (;!fill'iifili E - TTL IL Fe:iilt i - TTL. ll<Fe:. !l!ti-Ellli. ttT. ii!±) i'JJ' t ll!iC ;.lc!Jl,1cffi; M/Multi ;.lc!Jl>g,\\Jii!ll!iC: HUM/Multi PJJ' t !�l& (1/1 j"jffi:) 87 (ISO 100, r)*1s-'l'-1J'L, i,'/ll/,H&&;l't;i,) Iii-ii: 1/220 l!> ~ 1/11760 f_J> @;Jl: 1/220 lJ) ~ 1/7400 f_J> PJJ' t j,;!,il;81iel !lll>I: 7/2570fJ>~ 1/20400f1 600Ws...

  • Page 28: 固件升级

    本机通过 USB-C 固件升级接口可进行固件升级，软件最新公告及说明将会发布在官方网 站上。 本 品 出 厂 不 配 USB 升 级 线， 请 另 行 购 买。 本 产 品 USB 接 口 为 USB-C 接 口， 请 使 用 USB-C 线。 产品升级固件需要 Godox G3 程序软件支持，升级固件前请先到神牛官网下载安装“Godox G3 固件升级软件”再选择相应的固件文件。 由于产品进行固件升级，说明书请以最新电子版为准。 维护保养...

  • Page 29: Important Safety Instructions

    Important Safety Instructions This product is a professional photographic equipment, to be operated by professional personnel only. The following basic safety precautions must be followed when using this product: All transport protective materials and packaging on the product must be removed before use. Carefully read and fully understand the instruction manual before use and strictly follow the safety instructions.
  • Page 30 Do not use or store this device in potentially explosive environments. Do not cover the heat dissipation port! Do not use accessories not been approved by our company, as this may cause fire, electric shock or personal injury. Clean gently with a dry cloth. Do not use a wet cloth as it may damage the device. Some products are equipped with protective covers that must be removed before use.
  • Page 31 M: Manual Flash Multi: Stroboscopic Flash TTL Auto Flash Wireless (2.4G) Transmission Wireless Settings Flash Mode The Reason & Solution of Not Triggering in Godox 2.4G Wireless Modeling Lamp C.Fn: Setting Custom Functions Sync Triggering Protection Function Technical Data Firmware Upgrade...

  • Page 32: Foreword

    AD600ProII has strong power, all-in-one lithium battery pack and great portability. When using Godox 2.4G wireless X system, it can be triggered by XPro/XProII/X2T/X3 series flash trigger in M/ Multi/TTL mode. With transmitter & receiver functions, AD600ProII can also use in combination with Godox camera flashes, outdoor flashes, studio flashes, etc.

  • Page 33: Warning

    Warning A Always keep this product dry. A Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center. A Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric shock may occur if you touch the electronic parts inside it.

  • Page 34: Name Of Parts

    Name of Parts Flash Body...

  • Page 35: What's Inside

    1. Flash Tube 9. Bracket Locking Knob 17. Battery Indicator Button 2. Color Screen 10. Handle Fixing Fastener 18. Battery Charging Port 3. MENU Bu tton 11. Handle 19. Battery Level Indicator 4. MODE Button 12. Accessory Locking Pusher 20.Battery Compartment 5.

  • Page 36: Installing And Disassembling Reflector/Flash Tube

    Installing and Disassembling Reflector/Flash Tube Installing the Reflector: Insert the reflector into the accessory mount , press and hold then rotate clockwise, the accessory locking pusher will lock up. Disassembling the Reflector: Press down the accessory locking pusher, rotate the reflector anticlockwise to unlock.

  • Page 37: Adjusting Flash Angle

    Disassembling the Flash Tube: Press down the accessory locking pusher, remove the reflector or other accessories. Grasp the flash tube and pull it out horizontally. Note: Please wear gloves for the above operations. Adjusting Flash Angle l. When the handle fixing fastener is not pulled out, rotate the handle anticlockwise to unlock it, adjust the flash body for the desired angle, then rotate the handle clockwise to tighten.

  • Page 38: Power Switch

    Power Switch 1. Long press the power switch button until the unlock icon < > is displayed on the panel, then rotate the select dial clockwise to turn on the device. 2. Long press the power switch button for until panel black out to turn off the device. Note: Turn off the device if it will not be used for an extended period.
  • Page 39 Battery Features 1. This flash unit uses lithium battery which has long runtime. The available charge-and-discharge times are 300. 2. It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent, and short circuit. 3. It takes only 2 hours to fully charge the battery by using the standard battery charger. Cautions A Do not short circuit.
  • Page 40 2. Unloading: Push the battery compartment pusher and the battery pack upward at the same time to unload it. Battery Level Indication Attach the battery pack to the flash correctly. Check the battery level by pressing the battery indicator button and lightening the battery level indicator as the following table shows. LED Battery Level Indication on the Meaning/Percentage of Battery Level Battery...

  • Page 41: High-Speed Sync

    �" High-Speed Sync High speed sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is convenient when you want to use aperture priority for fill-flash portraits. 1. Press the MENU button to enter menu interface, turn the select dial and press the SET button to enter high speed sync and turn on it.
  • Page 42 Flash Output Range The following table makes it easier to see how the step changes in terms of aperture value when you increase or decrease the flash output. Turn the select dial clockwise to increase the flash output, while turn it anticlockwise to decrease the flash output.
  • Page 43 Display Flash Duration Flash duration refers to the length of time that from flash's firing to reach the half peak at maximum. The half peak at maximum is usually expressed as t=0.5. In order to provide the photographer with more concrete data, this product adopts t=O.l. The difference between t=0.5 and t=O.l is shown in the following picture.

  • Page 44: Multi: Stroboscopic Flash

    Multi: Stroboscopic Flash With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture multiple images of a moving subject in a single photograph. You can set the flash output, number of flashes, and flash frequency (number of flashes per sec. expressed as Hz). 1.

  • Page 45: Ttl Auto Flash

    Note: • Stroboscopic flash is most effective with a highly reflective subject against a dark background. • Using a tripod and a TTL flash trigger is recommended. • A flash output of 1 /1 and 1 /2 cannot be set for stroboscopic flash. •...

  • Page 46: Wireless (2.4G) Transmission

    Wireless (2.4G) Transmission AD600ProII adopts 2.4G wireless X system, which has good compatibility with other Godox products. It can automatically switch to receiver unit according to the transmitter unit instead of setting manually. The compatible cameras include Canon, Nikon, Sony, Olympus, Panasonic, Fujifilm, Pentax, Leica, etc.
  • Page 47 Setting the Communication Channel If there are other wireless flash systems nearby, you can change the channel to prevent signal interference. The channels of the transmitter unit and the receiver unit(s) must be set to the same. Wireless On/Off Channel 7-32 0-9,A-F Group...
  • Page 48 Wireless Flash Shooting Positioning and Operation Range (Example of wireless flash shooting) Auto flash shooting with one receiver unit ● Transmitter Transmission distance is about 100m Receiver Note: 1. Please use the transmitter unit with wireless transmission function. 2. Before shooting, perform a test flash and test shooting.

  • Page 49: Flash Mode

    The freeze mode is only available in M mode and Multi mode. The Reason & Solution of Not Triggering in Godox 2.4G Wireless 1. Disturbed by the 2.4G signal in outer environment (e.g. wireless base station, 2.4G wifi router, Bluetooth, etc.)

  • Page 50: Modeling Lamp

    Modeling Lamp AD600ProII is equipped with 40W*40W bi-color LED modeling lamp. Press the modeling lamp button to enter modeling lamp settings, turn the select dial to choose among off/free/prop, then turn the select dial and press the SET button to adjust the parameters. Press the modeling lamp button to return to the main interface.

  • Page 51: C.fn: Setting Custom Functions

    C.Fn: Setting Custom Functions Press the MENU button to enter menu interface, turn the select dial and press the SET button to choose among the following functions, then turn the select dial and press the SET button to adjust its parameters. Press the MENU button to return to the previous interface, press again to return to the main interface.

  • Page 52: Sync Triggering

    Language Chinese Simplified Chinese operating system English English operating system Reset Factory reset Cancel factory reset Device Info Display the current model and version Sync Triggering The sync cord jack is a Φ3.5mm plug. Insert a trigger plug in and the flash will be fired synchronously with the camera shutter.
  • Page 53 Power Output Level Number of Flashes 1/64(+0.0 ~ +0.9) 1065 1/128(+0.0 ~ +0.9) 2100 1/256(+0.0 ~ +0.9) 2100 1/512(+0.0 ~ +0.9) 2100 Number of flashes that will activate over-temperature protection in high-speed sync triggering mode: Power Output Level Number of Flashes 1/2(+0.0 ~ +0.9) 1/4(+0.0 ~ +0.9) 1/8(+0.0 ~ +0.9)

  • Page 54: Technical Data

    Technical Data Model AD600ProII Wireless Receiver Unit Mode Wireless Mode (compatible with Canon E-TTL II, Nikon i-TTL, Sony, Olympus, Panasonic, Fujifilm) Flash Mode Wireless off: M/Multi Wireless receiver mode:TTL/M/Multi Guide No. (1/1 step) 87(ISO 100,in meters,with efficient reflector) Normal:1/220s ～ 1/11760s Flash Duration Color:1/220s ～...

  • Page 55: Firmware Upgrade

    • Please use an USB-C cable (sold separately) for firmware upgrade. • As the firmware upgrade needs the support of Godox G3 software, please download and install the 'Godox G3 firmware upgrade software· from Godox official website before upgrading. Then, choose the related firmware file.

  • Page 56: Fcc Statement

    Operating frequency:2412.99MHz – 2464.49MHz (only receive) Declaration of Conformity GODOX Photo Equipment Co.,Ltd. hereby declares that this equipment are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.For more information of DoC, Please click this web link: https://www.godox.com/eu-declaration-of-conformity/...
  • Page 57 i"'liilf fiA'l �� i"'liil�li'l 111,\.Mllis l!IPffiA'l �,g J!!il',Jt!JJJ!: ffijl,Jl'!jil',A'J. ,g!fIT 11,\:li\El!lis J!!il',Jt!JJJ!: ffil'lElJ!/l �$± :,isc:,z {'l'lla/!lrl!l'is((i"' /iil{,!.M!fl§J�\))( J!l/§ ii'iil,lB}l) ,oHUi"'liil' :il:{t!l1 cJli.tltl\3 el,] B�Fliile2llM'l' ( lmiJi!lll ail' �=/iil&:,'1:itllt±J1J§�,JJD�llM'l''ll') ,F:(Etlti!i<Mli¥�Pl, i"'liil&illi't�l§Jjizi,i.f�J!Jlliil§�B� ((f'/iili!i<Ml/i,A'!.)) ln/1'. i!i<M!JIJlEli"'liill:l)�JliJ;i;El®:lfi:, JliJ;i;El r)9!,;i;/"'liilB1i,i.M!-le'!l'lic El J!Jlt,J)!E, f@oJ][Ji-'ai"'liill' ll f'!!illie2ll'/lJ<'.!�%mllill*:li\, tBoJmHlill'Fi"'liill'lJ§!a%El!lit -'alleim*:li\, Elllle if]B�!,%,A,_!,l.t,J/@�11in.%, $li'J{,!.f�Bt, f@Jjiz!l,fJHB&B�i,i.i�-lei'Jet,J{,!.M!J'EiiE, noJml>i,i.i�, J!□f@,F/jg!l,i,\'l,5&�f)j(jj!-j,' WU'l±lleiflililv-i"'liile21${*1lfffJ,&m!IB�•llDltl'' moJr)t,Jf@ll>iJ!:i,i.&, i!al!<::or-:i'Jet,JJleff]�.>(%,...
  • Page 58 不适用保修情況 如产品存在下列情况，本文件项下的保证和服务将不适用 : ①产品或部件超过相应保修期；②错误 或不适当使用、维护或保管导致的故障或损坏，如：不当搬运；非按产品合理预期用途使用；不当 插拨外接设备；跌落或外力挤压；接触或暴露于不适当温度、溶剂、酸碱、水浸或潮湿环境；③由 非神牛授权机构或人员安装、修理、更改、添加或拆卸造成的故障或损坏；④产品或部件原有识别 信息被修改变更或除去；⑤无有效保修卡；⑥使用非合法授权、非标准或非公开发行的软件造成的 故障或损坏；⑦因不可抗力或意外事件造成的故障或损坏；⑧其他非因产品本身质量问题导致的故 障或损坏。遇上述情况，您应向相关责任方寻求解决，神牛对此不承担任何责任。因非在保修期或 保修范围内的部件、附件或软件导致产品不能正常使用的，不是保修范围内的故障。产品使用过程 中正常的脱色，磨损和消耗，不是保修范围内的故障。 产品保修和服务支持信息 产品的保修期和服务类型按以下《产品保修信息》执行： 产品类别 选件名称 保修期 （月） 保修服务类型 部件 电路板 客户送修 电池 客户送修 充电器等带电性能的部件。 客户送修 其他 如外壳、 保护罩、锁紧装置、包 无 无保修 装等。 神牛产品售后服务电话 0755-29609320-8062...

  • Page 59: Warranty

    If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you...
  • Page 60 Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope.
  • Page 61 Wechat Official Account l$'1'll<ffi0i<% ;1,t�llmMl'l'!B�IH;f'li'Jli!�aJ lt!llil:: i?i!�llrp§s'l<IZil!)iij,fr,]1JlJ<lt±IZi\lJIIIil'i,,J,n'f 2 l/fi Egli;: 0755-29609320 (8062) 11,Ji:: 0755-25723423 lli!lii: godox@godox.com GODOX Photo Equipment Co., Ltd. Add.: Building 2, Yaochuan Industrial ZoneTangwei Community, Fuhai Street, Bao'an District, Shenzhen 518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com www.godox.com...
