rako DIN-LINK Instruction Manual

Rako wired network din bus connection unit

Advertisement

Quick Links

Instruction Manual
DIN-LINK
Rako Wired Network DIN Bus Connection Unit
2025
Version 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIN-LINK and is the answer not in the manual?

Questions and answers

Summary of Contents for rako DIN-LINK

  • Page 1 Instruction Manual DIN-LINK Rako Wired Network DIN Bus Connection Unit 2025 Version 1.0.0...
  • Page 2: Table Of Contents

    Contents 1.0 What is the DIN-LINK?....................... 3 1.1 Product Image......................3 1.2 Features of the DIN-LINK.....................3 1.3 Example DIN Layout....................3 2.0 Panel Overview........................4 3.0 DIN-LINK Modules......................5 4.0 Installation Instructions.......................5 5.0 Programming the DIN-LINK....................7 6.0 Troubleshooting the Rako Wired Network.................8 7.0 Servicing the DIN-LINK......................
  • Page 3: What Is The Din-Link

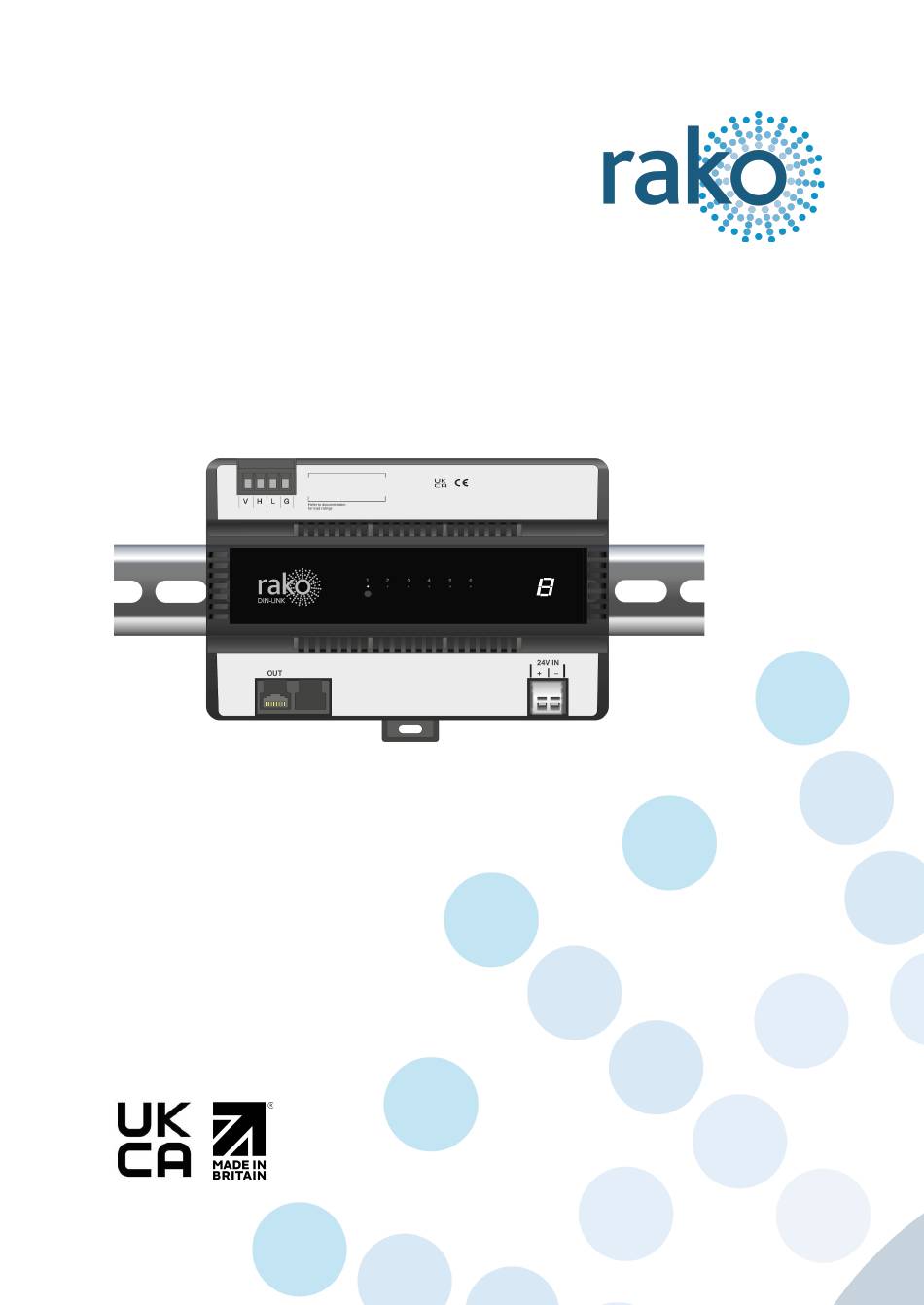

    1.1 Product Image 1.2 Features of the DIN-LINK Communicator and power source for the Rako Wired Network and DIN bus DIN bus port for connecting to DIN modules RJ45 port for connecting to the DIN-CONNECT for the Rako Wired Network...
  • Page 4: Panel Overview

    Input terminal from the 24V DC power supply via the DIN-PSU-100. Seven-segment display for diagnostic feedback. Lock for the DIN-LINK to the DIN rail. RJ45 port for the connection to the Rako Wired Network (Maximum of 30 Devices Per DIN-LINK) RJ45 port - Not used DIN-LINK Instruction Manual | Page 4 Manual Version 1.0.0...
  • Page 5: Din-Link Modules

    3.0 DIN-LINK Modules The DIN-LINK is used to communicate with three types of module: DIN-4T, DIN-8S and DIN-4C. Each DIN-LINK module is connected via the DIN bus. The DIN-LINK has a maximum capacity calculated in DIN Power Units (DPU). The maximum DPU per DIN-LINK is 64.
  • Page 6 Pull down the DIN clamp at the bottom of the unit to unlock it. Once unlocked, place the DIN-LINK over the DIN rail. Push the clamp tab up to lock the DIN-LINK to the DIN rail. DIN-LINK Instruction Manual | Page 6 Manual Version 1.0.0...
  • Page 7: Programming The Din-Link

    DIN-LINK is 30. 5.0 Programming the DIN-LINK The DIN-LINK is programmed using the Rasoft Pro programming software. A WK-HUB is required for any programming of a Rako Wired DIN system. Instructions for this can be found in the Wired System Setup Guide.
  • Page 8: Troubleshooting The Rako Wired Network

    The DIN-LINK contains no user-serviceable parts; should the unit require a repair, it must be returned via the online form at https://returns.rakocontrols.com/contact/service-returns/. If the DIN-LINK has been returned from a repair, ensure it is operating correctly in the system by testing the following: ●...
  • Page 9: Star Wired System

    ® Rako and the Rako logo are registered trademarks of Rako Controls Ltd. Unauthorised use of these trademarks is prohibited. All other product names, company names, and logos mentioned herein may be trademarks of their respective owners. DIN-LINK Instruction Manual | Page 9...
