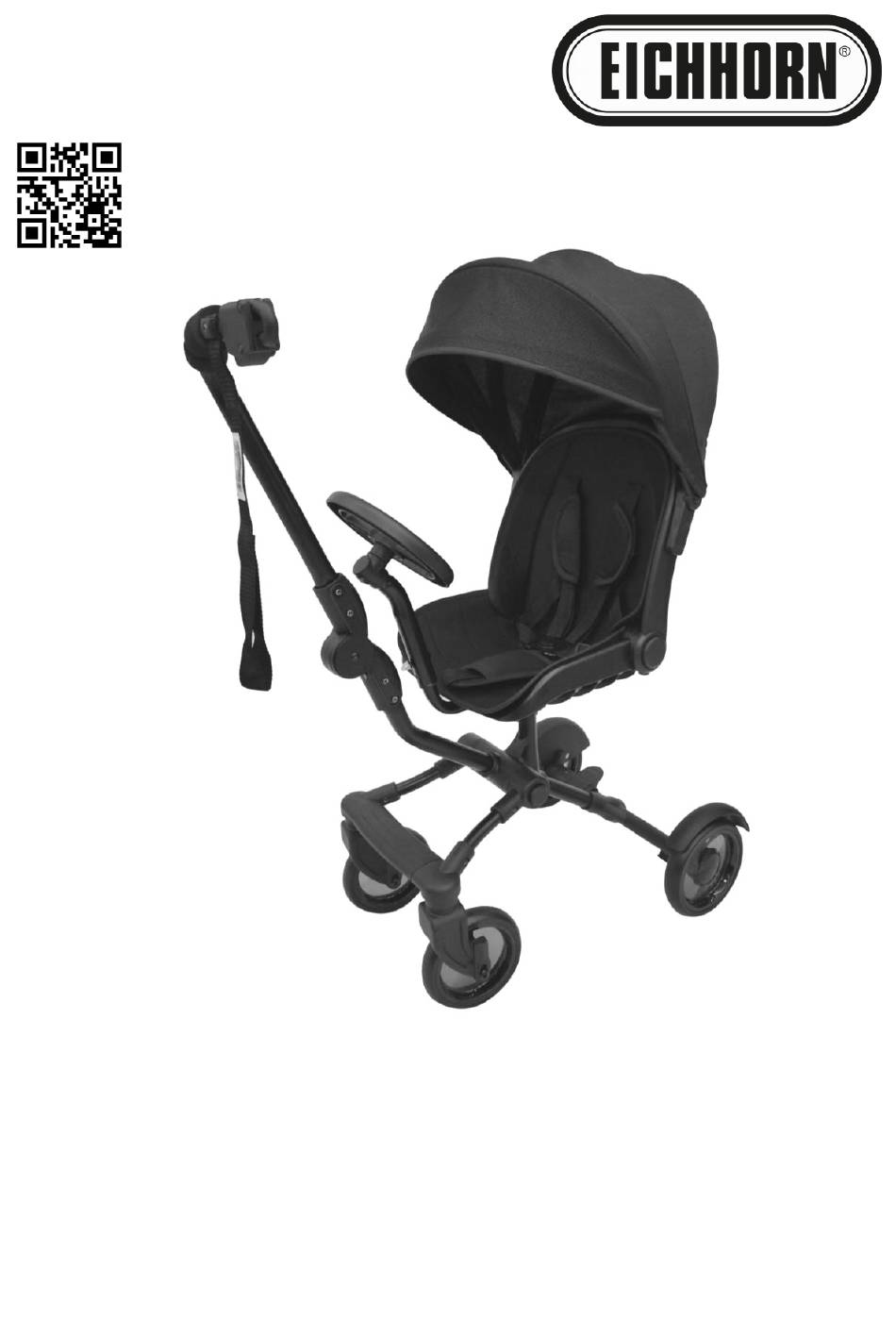

- Page 1 UPTOWN DELUXE Instruction Manual Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
-
Page 2: Important Safety Instructions
The Uptown Deluxe is used for comfortable transportation of sibling children in combination with a stroller / buggy. The Uptown Deluxe can be attached to the most prams, strollers and buggies. Please read this instruction manual carefully before using the Rider. - Page 3 (With M6 Screw & Nut) Back Wheel *2 Tool*1 M4 screw(for Fender)*2 Assembly 1. Press button(1) and lift the handle up till it’s fully extended. 2. Pull the front part of chassis upward till it clicks to unfold the Uptown Deluxe.
- Page 4 3. Tighten the fender onto the wheel housing by using the 2 M4 screws. Please make sure it is securely tighten before in use. 4. Install and removal of the rear wheel Insert the wheel pin to the rear wheel housing till it clicks to install the wheel, Gentle pull it to make sure it’s firmly installed.
- Page 5 6. Assembly of steering-wheel handle Connect the handle with handle post and fasten them with the M6 screw and M6 nut. Please make sure it is securely tightened before in use!. 7. Assembly of Canopy Insert the Canopy into the holes at the side of the seat as illustrated. Slide it down to make sure it’s securely in position..
- Page 6 2. Adjust the Uptown Rider levelly to the ground and adjust the connector to tighten it up as illustrated. ATTENTION: Please pay attention to the correct attachment - otherwise: risk of tipping! The brake Step down the brake pedal to engage the brake. lift the pedal up to release.
- Page 7 Harness WARNING: YOUR CHILD MUST ALWAYS BE HARNESSED WHEN IN THE RIDER! Closing your harness: Slide each of the shoulder strap bottom guides (a) into the corresponding channel on the top of each side strap prong. Insert each ompleted prong into the central buckle housing (b). Carefully adjust the harness straps to snugly fit your child by adjusting the sliders (c) located on each strap.
- Page 8 Adjustment of backrest Press the regulation button and hold to adjust the backrest backward as illustrated. The backrest can be adjusted to one section as illustrated. Disconnecting the rider To remove the Uptown Rider from the stroller/buggy, press the button at the bottom of the attachment loop.
- Page 9 The mesh basket: This product comes with a storage net that can be attached as a luggage net in the axle area of the Uptown Deluxe. 1) Lay the mesh basket on the 2) Fix the basket at the top with...
-
Page 10: Safety Instructions
Get your child off the Uptown Deluxe before driving on lane edges, stairs, steep lanes, tight turns, or backwards. There may be certain types of prams for which the Uptown Deluxe is not suitable because the connector cannot be attached firmly to the frame construction. - Page 11 The Uptown Deluxe is not a toy: Never leave your child unattended! The Uptown Deluxe may only be used while the child is sitting. The Uptown Deluxe must not be used if you go jogging or skating with the pram.
