IMPORTANT! READ CAREFULLY AND
KEEP FOR FUTURE REFERENCE.
Read the instructions carefully before use and keep them for future reference.
The child may be hurt if you do not follow the instructions. Adult assembly required.

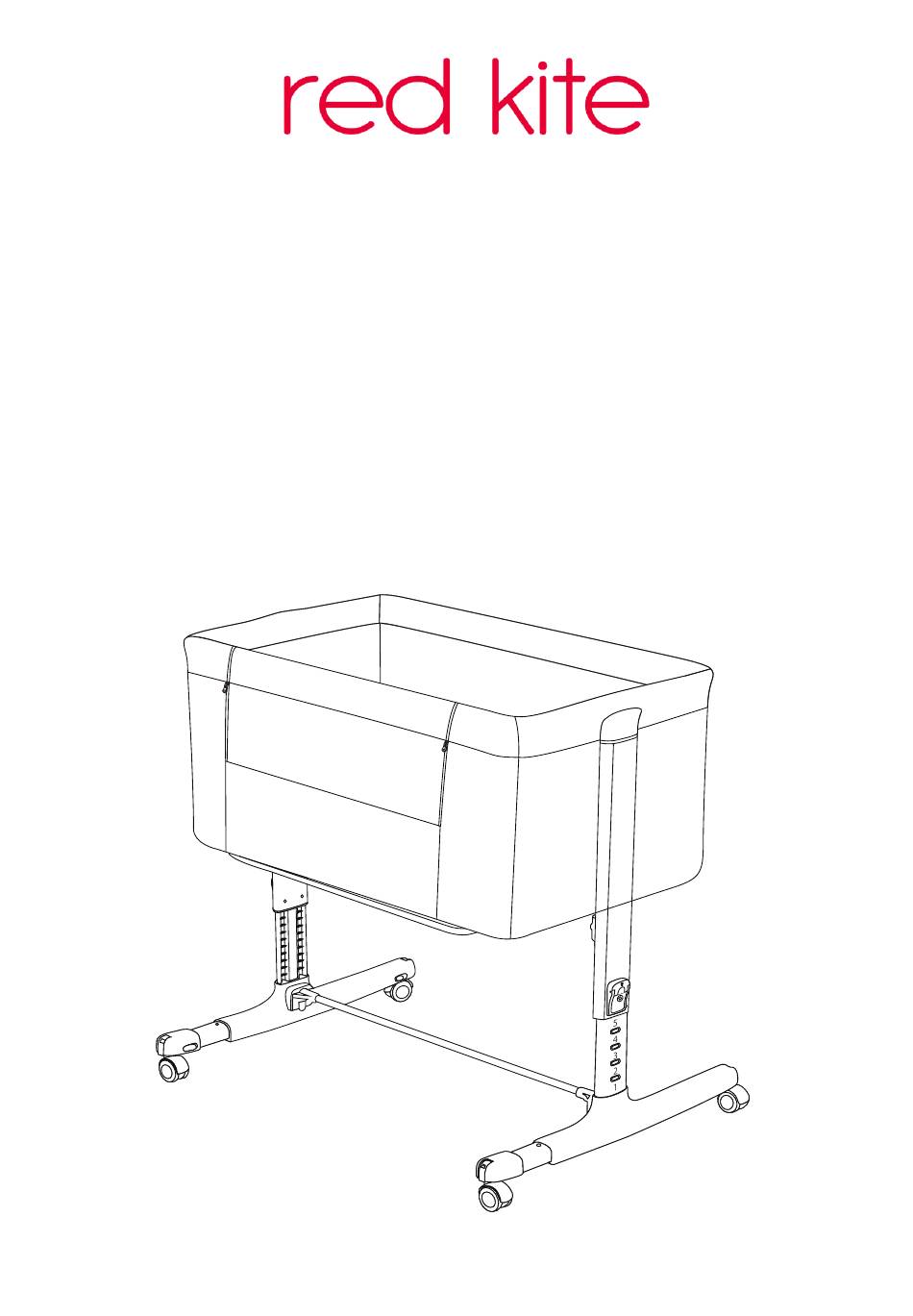

Instruction leaflet
Rockabye
BS EN 1130 : 2019. Customer Care: www.redkitebaby.co.uk
Advertisement
Related Manuals for Red Kite Rockabye
Summary of Contents for Red Kite Rockabye
- Page 1 KEEP FOR FUTURE REFERENCE. Read the instructions carefully before use and keep them for future reference. The child may be hurt if you do not follow the instructions. Adult assembly required. Instruction leaflet Rockabye BS EN 1130 : 2019. Customer Care: www.redkitebaby.co.uk...
-
Page 2: Parts List
Parts list 1. Main body 6. Lower support bar 2. Mattress board 7. Base securing straps 3. Mattress 8. Straps for fixing to parent bed 4.Carry bag 9. Left and right feet 5. Mattress support bar... - Page 3 Assembly instructions Attach the left and right feet onto the correct legs of the crib frame. (Each foot will only fit onto one leg). Insert the lower support bar into the slots on each foot and push down on both sides of the bar, ensuring that they click into place.
- Page 4 Assembly instructions Place the mattress base board into the bottom of the crib. Then thread the base securing straps through the provided slots, around the frame and board then secure with the double rings, as seen above. Tighten securely. h max WARNING:DO NOT ADD A SECOND MATTRESS, SUFFOCATION HAZARDS.
- Page 5 Height adjustment function Position 5 Position 4 Position 3 Position 2 Position 1 To lower height of the crib, slide up the catch (part 1) and then press in on the lower button (part 2). Adjust height as required and then release the catch button. Repeat for the other side. To raise the height of the crib gently place one foot on the rocker by the main leg and with both hands, pull up on the top rail until you reach the desired height.
- Page 6 Rocking (crib) mode To put the crib into rocker mode simply push in the button located at the end of each rocker by the wheel and swing the wheel up or down as required. Bedside (co) sleeper mode Unzip the two sides of the front panel then, use the slide release buttons on the detachable front rail and secure the bar with the two elastic loops at the base of the fabric crib.
- Page 7 IMPORTANT Ensure that all of the wheels are down with the brakes applied when securing to an adult bed. See the image below for the maximum height of the top of the adult's mattress. Position 5 max height of top of adult's mattress: 65cm Position 4 Position 3 Position 2...
- Page 8 HOW TO USE THE BED ATTACHMENT STRAPS: Connect one end of the bedside straps into the buckle on the side of the frame of the crib. Feed the strap under the mattress and either around the top of the mattress or around the bedframe.
- Page 9 WARNING! WARNING – To avoid hazards from the child’s neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress. Before every use always check to make sure there is no space between the parents mattress and the side of the Co sleeper.
- Page 10 To fold for storage / transportation First, remove both of the base board securing straps (part 7). Next, remove the lower fixing bar (part 6) and support tube (part 5) from the main vertical legs. Then fold one of the vertical legs over the top of the crib and one underneath.
- Page 11 • WARNING: DO NOT USE the product in “Crib Mode” and/ or “Co Sleeping Mode” if any part is missing, damaged or broken. Contact Red Kite for spare parts and user instructions if needed. • DO NOT REPLACE missing, damaged or broken parts with components not approved by Red Kite.
- Page 12 • WARNING: To avoid the risk of your child being strangled the attachment system to the adult’s bed shall always be kept away from and out of the crib. • Before assembling, ensure that the product and its components have not been damaged during transportation.
- Page 13 There shall be no gap larger than 30mm between the mattress and the sides and the ends. • Mattress size: 78 cm x 43 cm x 3cm • BS EN 16890 : 2017 + A1 : 2021 Ma nufa ctured by The Red Kite Baby Co Ltd 35 Lavenham Road Beeches Industrial Estate Yate...
