IMPORTANT! READ CAREFULLY AND
KEEP FOR FUTURE REFERENCE.
Read the instructions carefully before use and keep them for future
reference. The child may be hurt if you do not follow the instructions.
Adult assembly required.

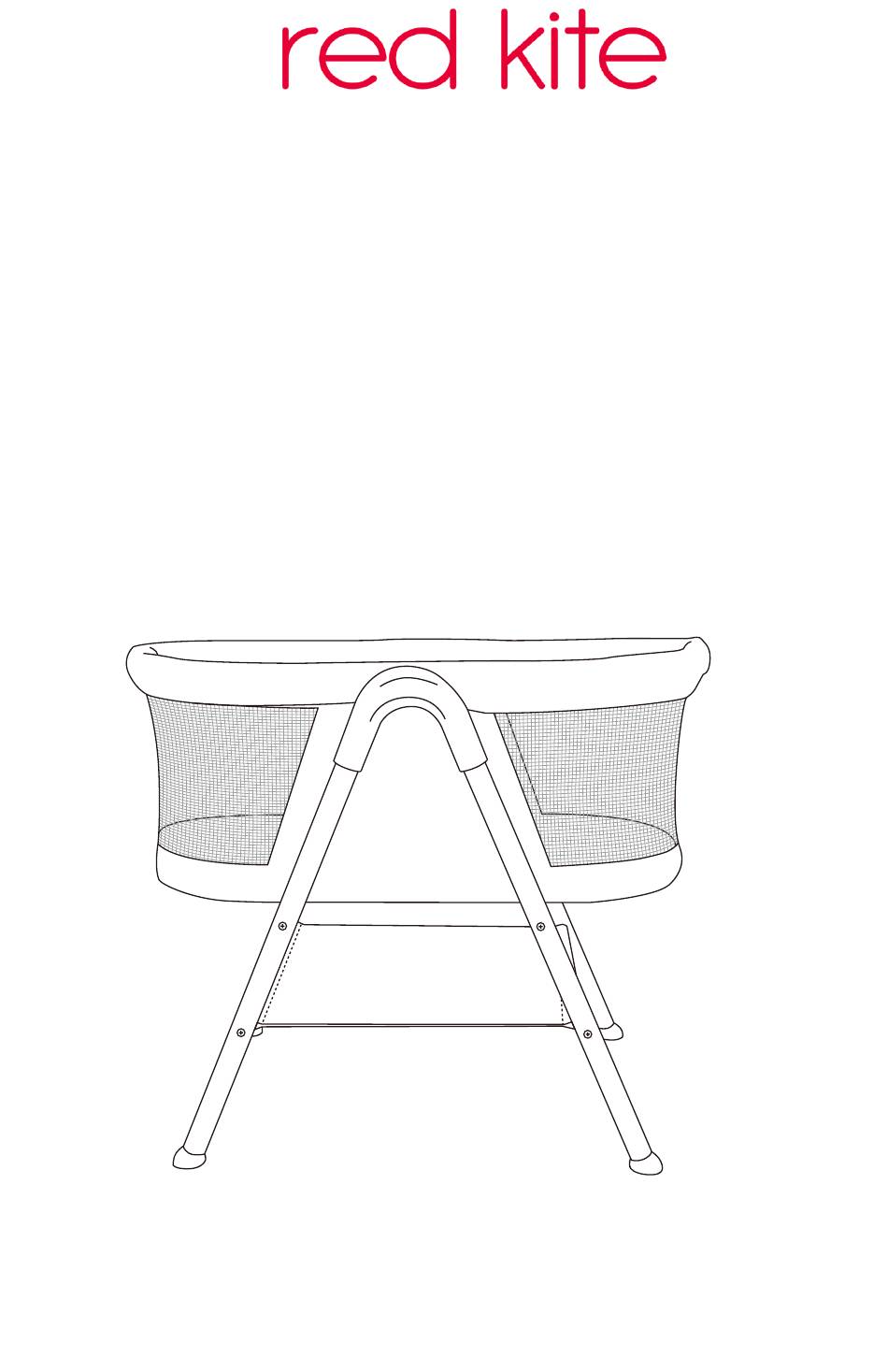

Instruction leaflet
Snooze Crib
Suitable from birth up to 6 months, approximately 9kg.
BS EN 1130 : 2019. Customer Care Line: 01454 326 568.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Snooze Crib and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Red Kite Snooze Crib

Summary of Contents for Red Kite Snooze Crib

  • Page 1 The child may be hurt if you do not follow the instructions. Adult assembly required. Instruction leaflet Snooze Crib Suitable from birth up to 6 months, approximately 9kg. BS EN 1130 : 2019. Customer Care Line: 01454 326 568.

  • Page 2: Parts List

    Parts List Crib body Storage shelf Mattress Left leg Crib support tube Frame joint Right leg Screws Frame support tube Phillips-head x 10 (2 Spare) screwdriver...
  • Page 3 Assembly 1. Attach one left leg (F) and one right leg (F) to each frame joint (E). Ensure the L and R labels are matching. Push in leg push pin and insert leg into joint until push pin pops out of corresponding joint hole.
  • Page 4 Assembly 2. Slide two frame support tubes (G) through the two sides of the fabric storage shelf (B). 3. Fit the storage shelf to the legs. Slide the support tubes into the bottom leg holes. Insert screw (H) through the leg from the outside and tighten with screwdriver (I) until secure.
  • Page 5 Assembly 4. Secure the frame with the two remaining frame support tubes. Slide the frame support tube (G) through the top leg hole. Insert screw (H) through the leg from the outside and tighten with screwdriver (I) until secure. Repeat for all legs.
  • Page 6 Assembly 5. Slide one crib support tube (D) all the way through the non-zipper side of the crib body (A). 6. Fit the crib body to the assembled frame. Push in support tube push pin and insert tube into frame joint (E) until push pin pops out of corresponding joint hole. The tube is secure when you hear the “click”...
  • Page 7 Assembly 7. Ins ert the remaining crib support tube (D) into the other side of the assembled frame. Push in support tube push pin and insert tube into frame joint (E) until push pin pops out of corresponding joint hole. The tube is secure when you hear the “click” sound.
  • Page 8 Assembly 8. Fold the zipper side of the crib body (A) over the crib support tube (D). Secure by zipping the zipper completely closed around the support tube. 9. Fully secure the crib body to the frame by fastening the velcro loops on the bottom of the crib body (A) to the top frame support tubes (G).
  • Page 9 Assembly 10. Pl ace the mattress (C) into the assembled crib. WARNING: DO NOT ADD A SECOND MATTRESS, SUFFOCATION HAZARDS.

  • Page 10: Maintenance

    • DO NOT use crib if any parts are missing, damaged, or broken. Contact Red Kite for replacement parts and instructional literature if needed. DO NOT substitute parts.
