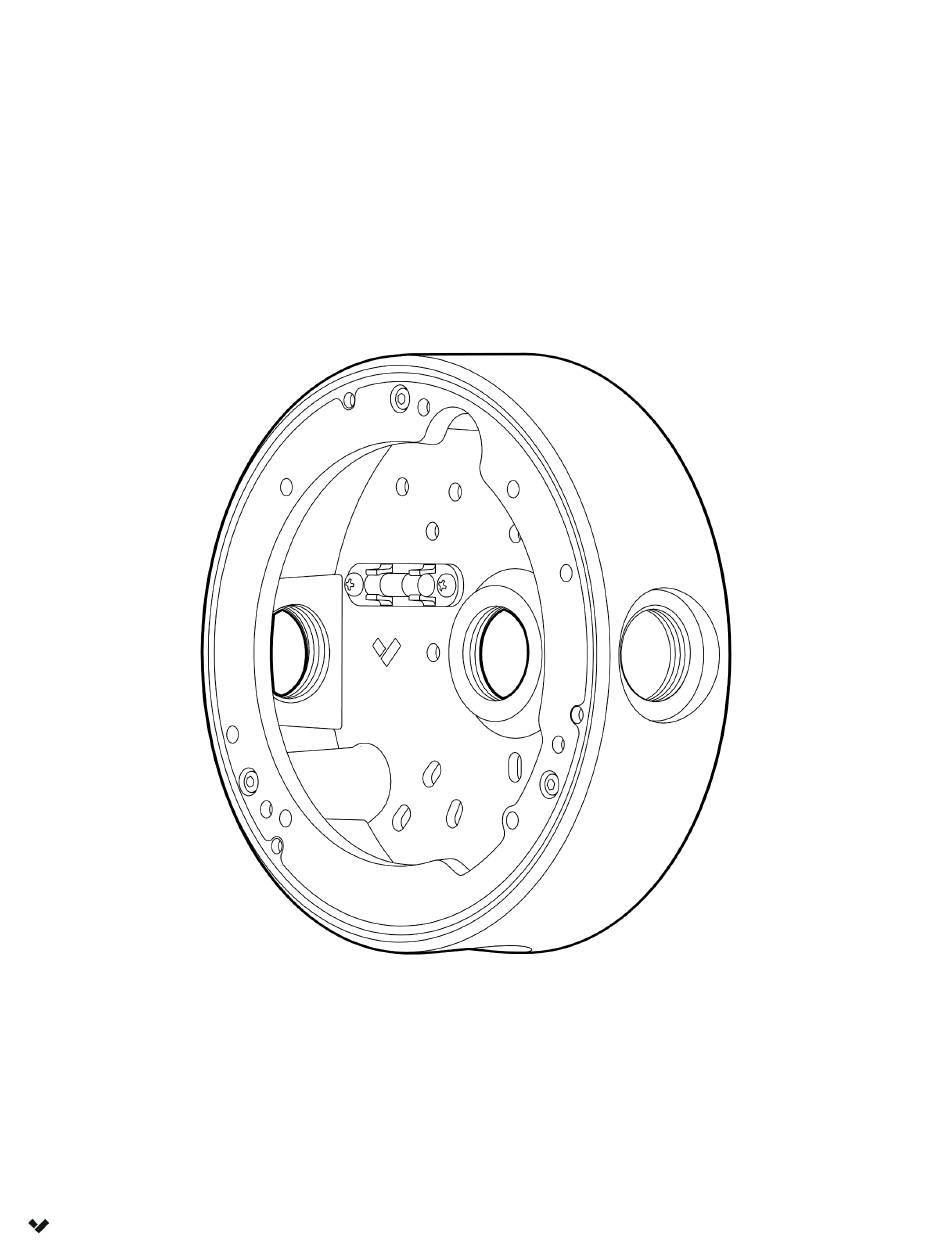

- Page 1 Install Guide ACC-MNT-CJBOX-1 Circular Junction Box...
-
Page 2: Product Models
Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. -
Page 3: Introduction What's In The Box
Length: 13mm Drive: T10 Security Torx Length: 1.5” Drive: #2 Phillips Length: 1.5” Drill Size: 1/4" What you’ll need Connect ● A compatible Verkada product with its For a list of compatible products, please visit: https://docs.verkada.com/docs/accessories- hardware overview.pdf ● A #2 Phillips screwdriver or power drill with a #2 Phillips driver bit ●... - Page 4 Introduction Overview Circular Junction Box Hole Patterns 4” Junction Box Double Gang Junction Box Single Gang Junction Box 3.5” Junction Box European Junction Box Mounting Ring Hole Patterns 4” Junction Box CF83-E, CDX3-E, CDX3 CDX2-E, CF81-E CDX2...
- Page 5 Installation Prepare the Camera Use the provided T10 Torx Security Screwdriver to loosen the screws and lift the cover of the camera. To remove the mount plate, loosen the mount plate screws with a T10 Torx Security Screwdriver and twist the camera counter clockwise.
- Page 6 Drywall, plaster and wood paneling. For other surface materials, more specialized mounting hardware may be required. Using the T10 Security Screwdriver, provided with the Verkada Camera, remove the mounting ring. Mark the four pilot hole locations in the A-pattern, and drill 1/8” pilot holes.
-
Page 7: Installation Mounting
Installation Mounting 2/2 Retrieve the camera. Refer to the Preparation and Mounting sections of the camera install guide for accurate cable installation. Align the the camera’s blue mounting slots with the thumb screws on the Circular Junction Box. With thumbscrews fully inserted, rotate the camera clockwise. - Page 8 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
